80km Fiber POE Switch , 4 Port Network Switch With Fiber Ports

80km Fiber POE Switch , 4 Port Network Switch With Fiber Ports

80km Fiber POE Switch , 4 Port Network Switch With Fiber Ports
80km Fiber POE Switch , 4 Port Network Switch With Fiber Ports
80km Fiber POE Switch , 4 Port Network Switch With Fiber Ports
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Gigabit Ethernet Network Port: 4 POE Ports Gigabit Optical Port: 1 SC Optical Port
Transmission Distance: 20-100km Backplane Processing Capacity: 14G
MAC Address Table: 2K Cache: 2M
MAX Frame Length: 2K Power Consumption: ≤4.8W
Transmitted Power: -10~-2 DBm Receiving Sensitivity: ≤-24 DBm
Power Input: +44~+57VDC Relative Humidity: 5~90%
Operating Temperature: -40~85°C MAX Frame Length: 9216bytes
Optical Wavelength: 1310/1550nm IPC Extender: 250m
VLAN: Support CBIT: Support
Protection: IP30 POE Standard Protocol: IEEE 802.3af/at
High Light:

80km Fiber POE Switch

,

FCC Fiber POE Switch

,

80km network switch with fiber ports

Industrial Fiber POE Switch Gigabit 1 Fiber Port and 4 Ethernet POE Ports



Technical parameters

Network port 4 10/100/1000Base-T(X) adaptive POE RJ45 Ethernet ports
Optical port 1 10/100/1000Mbps optical port, standard SC (ST, FC is optional)
Transmission distance Standard is 20km, 40/60/80/100km is optional.
Backplane processing capacity 14G
MAC address table 2K
Cache 2M
MAX frame length 9216bytes
Power Consumption ≤4.8W
Fiber wavelength 1310nm/1550nm
Transmitted power -10~-2 dBm
POE Standard protocol IEEE802.3af/at
Pin Connections V+ V+ V- V- corresponding to 4,5,7,8(1,2,3,6 optional)
Input voltage +44~+57VDC
Output power IEEE802.3af:15.5W IEEE802.3at:25.5W
Receiving sensitivity ≤-24 dBm
Relative humidity 5~90%
operating temperature -40~85°C
Shell material iron



Product overview

AEO series industrial fiber optical converter are mainly divided into two categories10/100M Ethernet and Gigabit Ethernet products.Gigabit series respectively can provide gigabit Ethernet RJ45 ports. The equipment is available with other optical network equipment, realizes complete multiple terminals through a single fiber network access requirements, 10/100/1000m Ethernet data to the adaptive optical cable between optical and electricity transformation of data communication function, greatly improve the Ethernet fiber-optic network to build flexibly and reduce the network construction cost, can satisfy the long distance, high speed, high broadband fast Ethernet access needs, can be achieved through a custom optical fiber modules as far as 100 kilometers high-speed remote interconnection without repeater.



Product features

◆ Automatically compatible with IEEE802.3 IEEE802.3U and IEEE802.3 X network protocols.

◆ Support full duplex and half-duplex transmission mode, and with automatic negotiation ability.

◆ Support the MDI/MDI - X adaptive, inside take a store-and-forward mechanism.

◆ Support 9216bytes the long packet transmission.

◆ Built-in efficient exchange core, the broadcast storm, flow control, CRC error checking.

◆ Industrial-grade surge protection 3000V (power)

◆ To provide low delay of data transmission.

◆ Guide rail type installation, easy and quick installation;

◆ Power overload protection, positive and negative anti-reverse connection protection;

◆ Industrial product standard, working temperature -40℃ ~ 85℃, protection grade IP40;

◆ Support DC44V~DC57V dual redundant power input;

◆ Power port support POE function, construction is more convenient.

◆ Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be about 250M.

◆ Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.

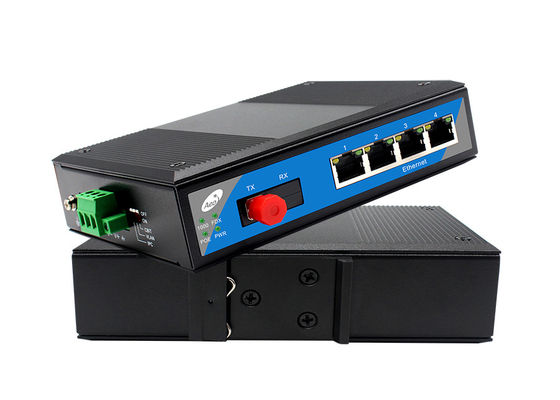

Product Pictures

80km Fiber POE Switch , 4 Port Network Switch With Fiber Ports 0

Application Diagram



80km Fiber POE Switch , 4 Port Network Switch With Fiber Ports 1



Packaging & Shipping


● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



80km Fiber POE Switch , 4 Port Network Switch With Fiber Ports 2
