100KM Ethernet Fiber Switch Industrial Cascading with 2 Fiber and 4 Ethernet Ports

100KM Ethernet Fiber Switch Industrial Cascading with 2 Fiber and 4 Ethernet Ports

Technical Parameters

System Overview

Industrial cascading fiber switch is composed through hand in hand cascading, which can achieve no phase delay transmission of the 1080p HD network signals. It uses the design of industrial redundant ring net, and you can find two fiber ports which make up the ring net in every transmission equipment.

Product Features

1. Supporting all the network HD cameras and other network signals;

2. Adapting parallel or cross-wire connection;

3. Supporting POE on the network port;

4. Providing the transmission of ultra low delayed data;

5. Protecting from network broadcast radiation;

6. Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be 250M

7. Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of      system, inhibit network storm functions: automatic identification and filtering broadcast packets.

8. Support the din rail & desktop installation

9. Support the CBIT to ensure the HD image.

10. Being compatible for IEE802.3,IEEE802.3U,IEEE802.3X and other internet protocol;

11. Supporting the transmission pattern of full-duplex and half-duplex, with the ability of automated negotiation;

12. Having the function of setting ring net in all the devices, and change transmission while the disconnection of the intermediate node;

13. Providing 4 set adaptive Ethernet ports, which can link with internet camera, the switch and so on;

14. Having APC circuit, with constant optical power output and wide dynamic range;

15. Gigabit optical fiber transmission, with large capacity which could be upgraded easily;

16. Having advanced adaptive technology, no field of the use of optical or electrical adjustment

17. Adapting three-level lighting protection technology on the computer ports and network signals.

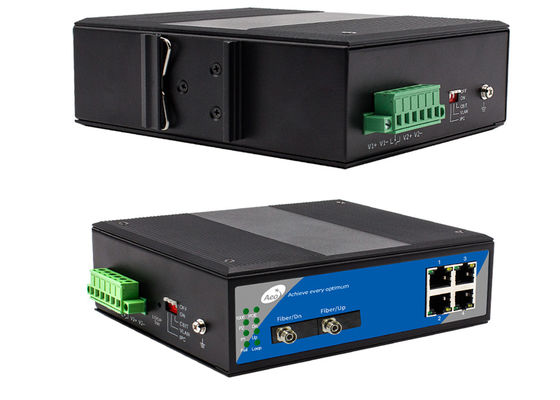

Product Pictures

Application Diagram

Packaging & Shipping
