IPC Extender 250m 10/100M 8 Port POE Switch With Fiber Uplink

IPC Extender 250m 10/100M 8 Port POE Switch With Fiber Uplink

IPC Extender 250m 10/100M 8 Port POE Switch With Fiber Uplink
IPC Extender 250m 10/100M 8 Port POE Switch With Fiber Uplink
IPC Extender 250m 10/100M 8 Port POE Switch With Fiber Uplink
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC, ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Backplane Bandwidth: 5.6G Package Forward Rate: 4.16Mpps
MAC Address Table: 4K MAX Frame Length: 1632bytes
Input Voltage: +44~+57VDC Transmission Power: -8~-2 DBm
Received Sensitivity: ≤-35 DBm Network Ports Properties: IEEE802.3、IEEE802.3U、IEEE802.3X Protocol
Network Port Delay: ﹤9.6μS Network Port Bit Error Rate: ﹤1/1000000000
Power Consumption: ≤5W Operating Temperature: -40 ~ 85℃
CBIT: Support VLAN: Support
10/100M POE Ports: 8 Gigabit SFP Port: 1
Gigabit Ethernet Ports: 2 IPC Extender: 250m
High Light:

10/100M 8 port POE switch with fiber uplink

,

250m 8 port POE switch with fiber uplink

,

1632 bytes 8 port industrial switch

Industrial SFP Fiber POE Switch 1 Gigabit SFP and 2 Gigabit Uplink and 8 10/100M POE Ports



Technical Parameters

Network Ports 8 10/100Base-T(X) adaptive POE Ethernet port
Network Ports  2 10/100/1000Mbps uplink port
SFP Port 1 10/100/1000M SFP port
Network Ports protocol IEEE802.3,IEEE802.3U,IEEE802.3X protocol
Ports Features Support half-duplex, full-duplex, auto-negotiation mode
Ports Features Support MDI/MDI-X adaptation
Delay ﹤9.6μS
Bit Error Rate ﹤1/1000000000
Backplane Bandwidth 5.6G
Package forward rate 4.16Mpps
MAC address table 4K
Power consumption ≤5W
Transmission Distance 250m
POE protocol IEEE802.3af/at
Pin Definition V+,V+,V-,V- Corresponding to 1,2,3,6
Output Power 15.4W
IPC Extender 250m
VLAN yes
CBIT yes
Rated Input voltage +44~+57VDC
Operating Temperature -40 ~ 85℃



System Overview

The industrial SFP fiber POE switch is 1 Gigabit SFP port and 2 gigabit uplink ports and 8 10/100m POE ports, it is your best choice for smart building or fiber to desktop solution. It extends the transmission distance to be 250m, easily to make the connection among master servers, repeaters, hubs, terminals. It adopts industrial design, fanless, low power consumption. The working temperature range is -40℃~85℃. The reverse polarity protection prevents from device burnt. It supports industrial standard DIN-Rail installation or wall-mounted installation, which meets the different industrial network requirements. It is widely used in the field of power, rail transit, mine, and other industrial automation fields.



Product Features

  • Supporting all the network HD cameras and other network signals;
  • Adapting parallel or cross-wire connection;
  • Support the din rail & desktop installation;
  • Support the CBIT to ensure the HD image;
  • Supporting POE on the network port;
  • Providing the transmission of ultra low delayed data;
  • Protecting from network broadcast radiation;
  • Having APC circuit, with constant optical power output and wide dynamic range;
  • Having advanced adaptive technology, no field of the use of optical or electrical adjustment;
  • Adapting three-level lighting protection technology on the computer ports and network signals;
  • Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be 250M;
  • Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets;
  • Being compatible for IEE802.3,IEEE802.3U,IEEE802.3X and other internet protocol;
  • Supporting the transmission pattern of full-duplex and half-duplex, with the ability of automated negotiation;
  • Having the function of setting ring net in all the devices, and change transmission while the disconnection of the intermediate node;
  • Providing 9 set adaptive Ethernet ports, which can link with internet camera, the switch and so on.

Product picture

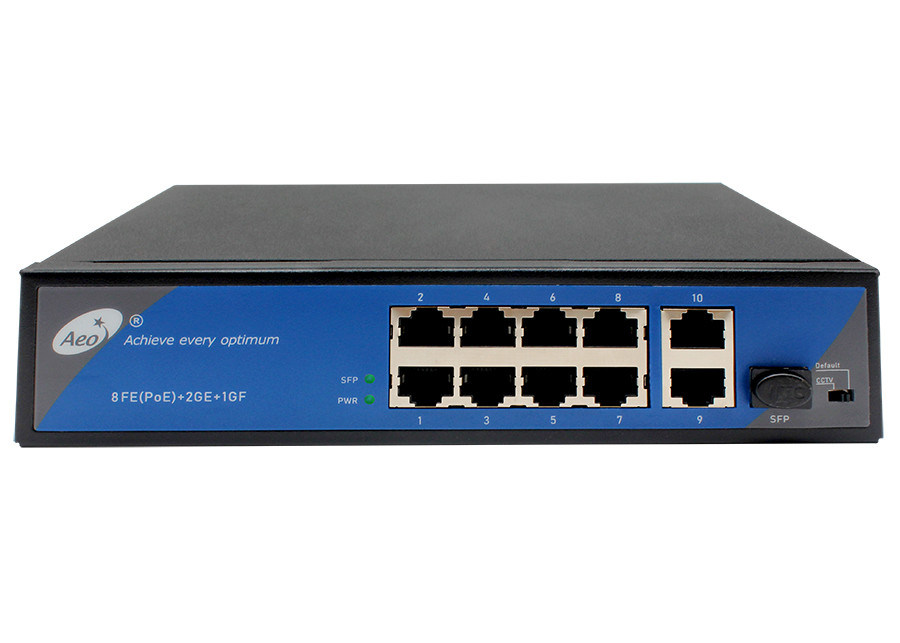

IPC Extender 250m 10/100M 8 Port POE Switch With Fiber Uplink 0

Packaging & Shipping



● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

IPC Extender 250m 10/100M 8 Port POE Switch With Fiber Uplink 1
