10/100M 24 Port SFP Fiber Switch , 24 Port POE Switch With SFP

10/100M 24 Port SFP Fiber Switch , 24 Port POE Switch With SFP

10/100M 24 Port SFP Fiber Switch , 24 Port POE Switch With SFP
10/100M 24 Port SFP Fiber Switch , 24 Port POE Switch With SFP
10/100M 24 Port SFP Fiber Switch , 24 Port POE Switch With SFP
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T, L/C
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Backplane Capacity: 12.8G Package Forward Rate: 9.52Mpps
MAC Address Table: 8K IPC/VLAN Dip Switch: Yes
10/100M Ethernet Ports: 24 10/100/1000M SFP Port: 2
10/100/1000M Ethernet Ports: 2 Relative Humidity: 5% ~ 90%
Layer2 Loop Protocol: STP/RSTP/MSTP Protocol MTBF: 100000 Hours
Level Of Protection: IP20 Power Consumption: 12W
Max Voltage Range: AC 90~264V;47/63Hz Working Temperature: -10~60°C
High Light:

10/100M 24 port SFP fiber switch

,

12W 24 port SFP fiber switch

,

12.8G 24 port POE switch with SFP

24 Port Fiber Switch 24 10/100M Ethernet Ports and 2 Gigabit Combo Ports



Technical Parameter

10/100M Ethernet port 24
10/100/1000M SFP 2
10/100/1000M Ethernet port 2
Exchange capacity 12.8G
forwarding rate 9.52Mpps
MAC address table 8k
Switch mode Store and Forward
Port

IEEE 802.3x flow control(full duplex)

Supports PPS - based broadcast storm suppression

Max power consumption 12W
Working temperature -20℃ to 70℃
Working humidity 5% to 95% RH (No condensation)
MTBF 100000 hours
Enclosure material Metal case
Protection grade IP30



Product Introduction

The 24 port POE switch developed and designed for the construction of high-performance gigabit network requirements. It has 10/100M 24 RJ45 ports and 2 gigabit Combo ports. It is easy to manage and maintain, and can meet the networking and access requirements of enterprises, intelligent communities, hotels, office networks and campus networks.


Product Features

● Comply with IEEE 802.3, IEEE 802.3U and IEEE 802.3AB standards;

● 24 10/100Mbps adaptive RJ45, support automatic roll-over (auto-MDI /MDIX);

● 2 gigabit combo SFP ports;

● Support 8K MAC address;

● All ports support IEEE 802.3x half-duplex flow control and full-duplex backpressure mode;

● Non-blocking switching architecture, full speed forwarding and maximum throughput filtering packets;

● Provide ultra-low delay data transmission;

● Support MAC address learning, automatically adjust the transmission mode and transmission rate;

● Support one key VLAN, lower port isolation function;

● Support 250 meters long distance data transmission;

● LED indicator power supply,link and activity, provide simple working status prompts and troubleshooting;

● Built-in application power supply 100-240V AC;

● 19-inch metal shell design, protection grade IP30.

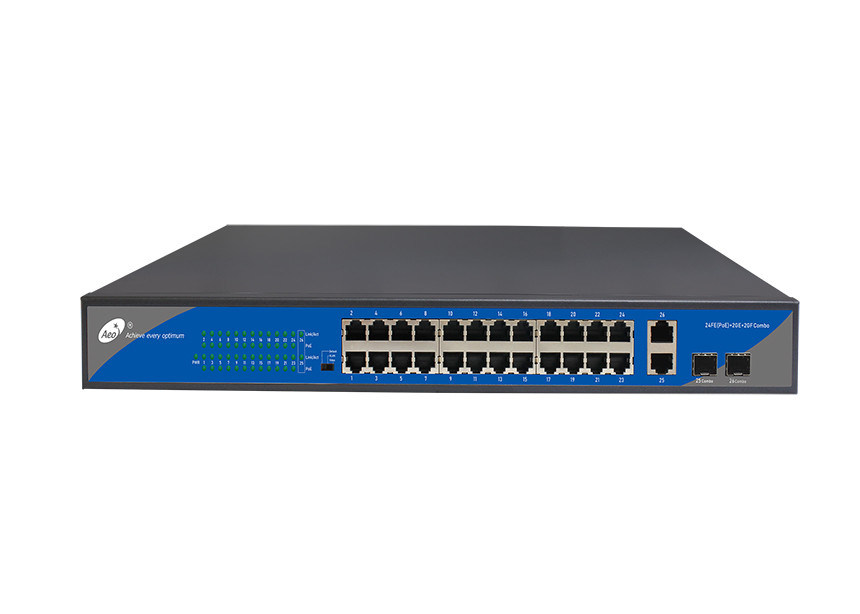

Product picture

10/100M 24 Port SFP Fiber Switch , 24 Port POE Switch With SFP 0
Packaging & Shipping


● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



10/100M 24 Port SFP Fiber Switch , 24 Port POE Switch With SFP 1
