Gigabit 8-Port Smart SFP Switch Industrial Ring Loop Managed 8 POE and 2 SFP

Gigabit 8-Port Smart SFP Switch Industrial Ring Loop Managed 8 POE and 2 SFP
Gigabit 8-Port Smart SFP Switch Industrial Ring Loop Managed 8 POE and 2 SFP

Large Image :  Gigabit 8-Port Smart SFP Switch Industrial Ring Loop Managed 8 POE and 2 SFP

Product Details:

Place of Origin: China
Brand Name: AEO
Certification: CE, FCC

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T
Supply Ability: 10000 pcs/month
Detailed Product Description
Backplane Capacity: 32G Cache: 2M
Gigabit POE Port: 8 Gigabit SFP Slot: 2
Working Temperature: -40~85°C Relative Humidity: 5% ~ 90%
Power Consumption: 120W Level Of Protection: IP40
IPC Extender: 250m VLAN: Support
CBIT: Support MTBF: 100000 Hours
High Light:

120W smart POE switch 8 port


Gigabit smart POE switch 8 port


IP40 gigabit switch 8 port managed

Gigabit 8-Port Smart SFP Switch Industrial Cascading Managed 8 POE and 2 SFP


Technical Parameter

Downlink Ports 8*10/100/1000Base-T RJ45 ports (PoE)
Uplink Ports 2*1000Base-X SFP ports (Mini-GBIC)
Console 1* Console port (RJ45 )
Button Reboot: short press
Reset: keep pressing at 5s or more
Standard IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q, IEEE 802.1p IEEE 802.3ad, IEEE 802.1D, IEEE 802.1X
Switching Capacity 32Gbps / non-blocking
Cache 2Mbit
MAC Address Table 8K
Package forward rate 14.8Mpps
PoE Standard IEEE802.3af/at(PSE)
PoE Line Pair 1/2(+),3/6(-)
PoE Output Power 54V DC , Output PoE power for single port ≤30W,Max PoE power budget≤135W
Surge Immunity 6KV Per: IEC61000-4-5
ESD Immunity 6KV Contact charge / 8KV Air charge
Per: IEC61000-4-2
Input Voltage 100~240VAC 50/60Hz,Auto-sensing
Power Consumption 120W( Including PoE)
Operating Temperature -10-50℃
Storage Temperature -40-85℃
Operating Humidity 5%-95% (No-condensation)
L2 Features
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
Port Security
DHCP Snooping
IP-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-unicast Storm Control
Dos Defend
Quality of Service
802.1p CoS/DSCP priority
4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN


Product Introduction

Gigabit 8-Port Smart SFP POE Ethernet Switch is equipped with 8 gigabit RJ45 ports and 2 SFP slots, all RJ45 Ports support the PoE standard and useful PoE power management features. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.Gigabit 8-Port Smart SFP Switch is especially designed for the small and medium business networks that require efficient network management. T1500G-10PS comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability.

Product Features

  • Supporting all the network HD cameras and other network signals;
  • Being compatible for IEE802.3,IEEE802.3U,IEEE802.3X and other internet protocol;
  • Supporting the transmission pattern of full-duplex and half-duplex, with the ability of automated negotiation;
  • Having the function of setting ring net in all the devices, and change transmission while the disconnection of the intermediate node;
  • Supporting POE on the network port;
  • Providing the transmission of ultra low delayed data;
  • Protecting from network broadcast radiation;
  • Providing 4 or 8 set adaptive Ethernet port, which can link with internet camera, the switch and so on;
  • Adapting parallel or cross-wire connection;
  • Having APC circuit, with constant optical power output and wide dynamic range;
  • 100Mbps/1000Mbps optical fiber transmission, with large capacity which could be upgraded easily;
  • Having advanced adaptive technology, no field of the use of optical or electrical adjustment
  • Adapting three-level lighting protection technology on the computer ports and network signals.
  • Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be 250M
  • Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.
  • Support the din rail & desktop installation
  • Support the CBIT to ensure the HD image.
  •  Built-in The United States Marvell and Broadcom industrial switch IC. High-speed processing capability and capacity of the cache, ensure a stable and reliable network.
  •  Fanless cooling circuit design, built-in heatsinks, thermal adhesive, such as multiple thermal structure design makes it in all kinds of consistent performance in harsh environment, operating temperature ranges up to -40℃ ~ +85℃.
  • Design with internal device precision compact size, in full consideration of the space requirement for installation.
  • Support for ring network redundancy and RSTP, network fault self-recovery time is less than 20ms.
  • Support for SNMP, provides both WEB and 0console management, easy to configure.
  • Support 802.1Q VLAN, meet the requirements of Division and management of network resources to enhance network security and ability to adapt to many business applications.
  • Support port isolation, port speed, broadcast storm suppression, ensure network security.
  • Support for IGMP snooping, and meet the needs of multicast traffic.
  • Support for port gathering, scalable connection bandwidth, and meet the needs of high-bandwidth connections.
  • Supports QoS for traffic control and management, and meet the needs of different business on the Internet.
  • Industry-standard design, high strength metal enclosure, IP30 protection.
  • Support for high level electromagnetic compatibility protection, support electrostatic discharge immunity, radiated electromagnetic field immunity, support electric fast transient burst anti-Rejection, support the surge immunity.
  • Support for a wide range of redundant dual DC power input, Power overload protection, Anti-reverse polarity protection.

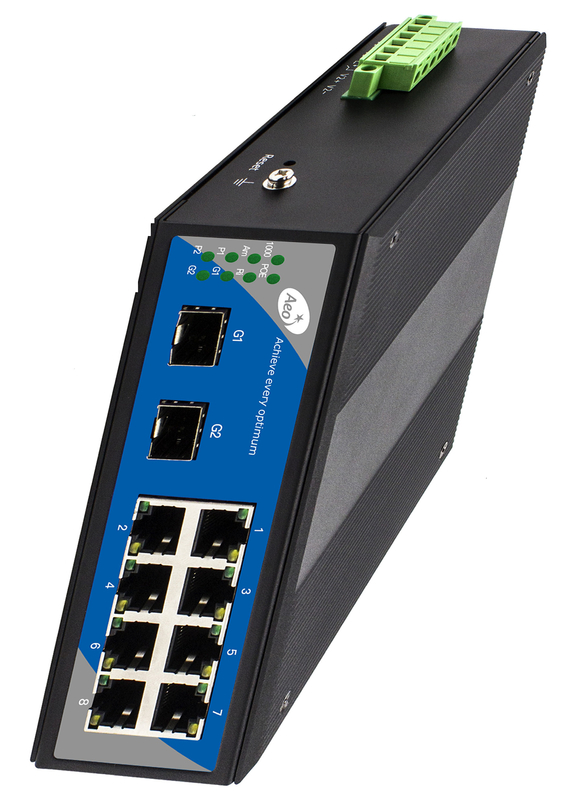

Product picture

Gigabit 8-Port Smart SFP Switch Industrial Ring Loop Managed 8 POE and 2 SFP 0
Gigabit 8-Port Smart SFP Switch Industrial Ring Loop Managed 8 POE and 2 SFP 1
Packaging & Shipping

● All of our package are international standard package

● We will deliver our products as soon as the order confirmed


Gigabit 8-Port Smart SFP Switch Industrial Ring Loop Managed 8 POE and 2 SFP 2
