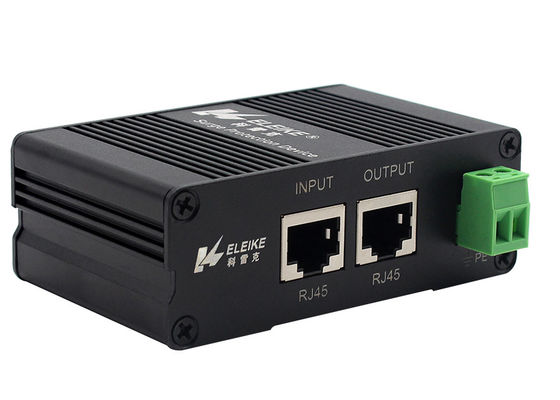

Single Channel Network Surge Protecter Device Guide Rail

Single Channel Network Surge Protecter Device Guide Rail

Single Channel Network Surge Protecter Device Guide Rail
Single Channel Network Surge Protecter Device Guide Rail
Single Channel Network Surge Protecter Device Guide Rail
Product Details:
Place of Origin: China
Brand Name: KLK
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Rated Operating Voltage Un: 5V MAX Continuous Running Voltage Uc: 8V
Maximum Discharge Current Imax(8/20): 10KA Limiting Voltage Up: 20V
Network Signal Transmission Rate Vs: 10/100/1000Mbps Self-adaption Grounding Resistance Ω: ≤4Ω
Wire Diameter: ≥2.0 Square Millimeter Operating Temperature: ﹣40~﹢85℃
High Light:

IP30 Network Surge Protection Device

,

RJ45 Network Surge Protection Device

,

FCC Network Surge Protection Device

Single Channel Network Surge Protecter Device Guide Rail



1. Support 10/100/1000Mbps Ethernet Device Protection

2. Guide Rail & Desktop Installation

3. POE Surge Protection

4. Industrial Grade



Technical Parameters

Interface Form RJ45
Rated operating voltage Un 5V
MAX Continuous running voltage Uc 8V
Nominal discharge current In(8/20) 5KA
Maximum discharge current Imax(8/20) 10KA
limiting voltage Up 20V
Network signal transmission rate Vs 10/100/1000Mbps self-adaption
Network signal protection circuit 1,2,3,4,5,6,7,8
Network Signal Response Time tA <1ns
Shell protection grade IP30
Protection level two filtering fine type protection
Grounding resistance Ω ≤4Ω
Wire diameter ≥2.0 Square millimeter
Installation Guide rail
Operating temperature ﹣40~﹢85℃
Relative humidity ≤95﹪(25℃ non-condensation)



Product Overview

Special network communication surge protection is designed according to IEC communication surge protection standard. Its interface is a standard RJ45 crystal joint, which can protect a variety of system equipments from surge voltage and induced harm caused by inductive lightning in the network communication signal transmission cable.1000M Single Channel Ethernet Surge Protector for Network Switches adopts multilevel protective circuit and the newest high-speed surge protection device which has quick response, low residual voltage output and excellent transmission performance.



Product Features

● Large flow (5~10KA)

● Support guide rail installation

● Multifunctional protection against surge overvoltage fine protection

● Two-stage filter pressure series protection

● High discharge current, fast reaction speed (1~25ns)

● Low transmission loss (wire-to-wire design of import plug-in)

● Full aluminum alloy shell, beautiful appearance, light weight

● 8-Wire protection, support POE surge protection

● Multi-function surge and overvoltage fine protection
● Multi-level protection, low residual voltage
● Imported plug wire to wire design
● Full aluminum shell, beautiful appearance, light weight





Product picture

Single Channel Network Surge Protecter Device Guide Rail 0

Single Channel Network Surge Protecter Device Guide Rail 1

Application Diagram



Single Channel Network Surge Protecter Device Guide Rail 2





Packaging & Shipping



● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



Single Channel Network Surge Protecter Device Guide Rail 3
