| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 pcs/month |
| Range Of Voltage: | DC12-57V | Self Consumption: | <20W |
|---|---|---|---|
| Switch Fabric: | 24Gbps | Buffer: | 4M |
| MAC Address Table: | 8K | Working Temperature: | -40℃~75℃ |
| High Light: | 12 Ports Gigabit Industrial Switch,FCC Gigabit Industrial Switch |
||

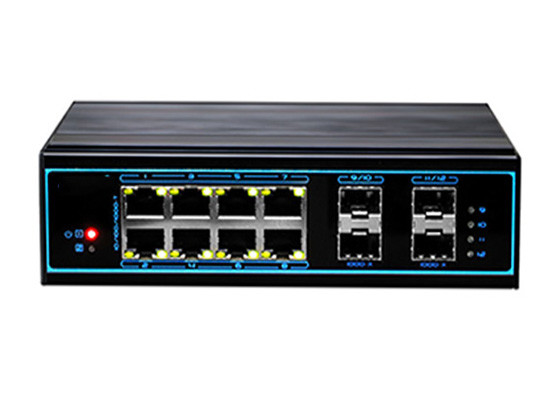

12 Ports Full Gigabit Industrial Switch with 8 Downlink and 4 SFP Ports
Technical Parameter
| Power supply | Powered by power adaptor |
| Range of voltage | DC 12~60V |
| Consumption | Self consumption<20W |
| Downlink ports | Ports 1~8: 10/100/1000Base-T RJ45 |
| Uplink ports | Ports 9~12 1000M SFP slots |
| Cable and distance | Use cat5e/6,100m max |
| Switch fabric | 24Gbps |
| Though put | 17.9Mpps |
| Buffer | 4M |
| MAC address table | 8K |
| Indicator |
Power: 2 *red ; Uplink 9~12: green LEDs indicate Link/Act Downlink 1~8: On RJ45 green LEDs indicate Link/Act. |
| Protection | Surge: 6KV, standard: IEC61000-4-5 ESD: 8KV: contact / 15KV: air, standard:IEC61000-4-2 |
| Working temperature | -40℃~75℃ |
| Storage temperature | -40℃~85℃ |
| Humidity | 0~95%(No condensation) |
Product Feature
With 8*10/100/1000M downlink ports, 4*1000M SFP ports, with L2 network management;
Supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management;
6KV surge protection, 8KV contact / 15KV air ESD protection;
Supports working temperature - 40℃～75℃.
Supports wall hanging and desktop installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
