| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 pcs/month |
| Range Of Voltage: | DC12-57V | Self Consumption: | <15W |
|---|---|---|---|
| Switch Fabric: | 20G | Buffer: | 1M |
| MAC Address Table: | 8K | Though Put: | 14.88Mpps |
| High Light: | Full Gigabit Industrial Unmanaged Switch,1M Buffer Industrial Unmanaged Switch |
||
10-port Full Gigabit Industrial Unmanaged Switch with 8 RJ45 and 2 SFP Ports
Technical Parameter
| Power supply | Powered by power adaptor |
| Range of voltage | DC 12~57V |
| Consumption | Self consumption<15W |
| Downlink ports | Ports 1~8 10/100/1000Base-T RJ45 ports |
| Uplink ports | Ports 9~10 1000M SFP slots |
| Working mode |
Default mode: normal switch mode. VLAN mode: ports 1 ~ 8 are isolated from each other and can only communicate with the uplink port; restrain the network storm; turn off the flow control. |
| Cable and distance | Use cat5e/6,100m max |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3z |
| Switch fabric | 20Gbps |
| Though put | 14.88Mpps |
| Buffer | 1M |
| MAC address table | 8K |
| Indicator |
Power: 2 *red ; Uplink 9~10: green LEDs indicate Link/Act Downlink 1~8: On RJ45 green LEDs indicate Link/Act |
| Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 8KV: contact / 15KV: air, standard:IEC61000-4-2 |
| Working temperature | -40℃~75℃ |
| Storage temperature | -40℃~85℃ |
| Humidity | 0~95%(No condensation) |
Product Feature
With 8*10/100/1000M downlink ports, 2*1000M SFP ports;
Provides two modes of Default and VLAN to adapt to various complex environments;
Supports relay alarm for power off and network broken;
6KV surge protection, 8KV contact /15KV air ESD protection;
Supports working temperature -40℃～75℃

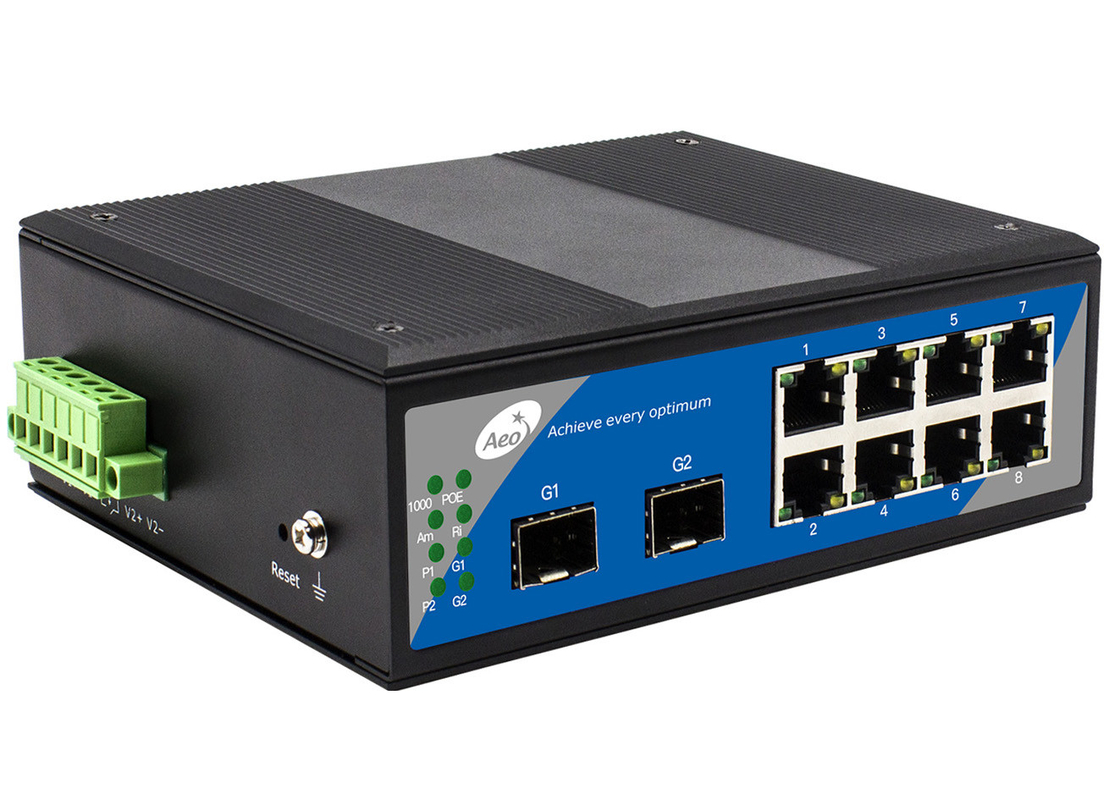

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
