Place of Origin: | China |
Brand Name: | AEO |
Certification: | CE, FCC |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | negotiation |
Packaging Details: | package and carton |
Delivery Time: | 3-4 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 10000 pcs/month |
Redundant Power Input: | 7-28V DC | Operating Humidity: | 5%~90% Non-condensing |
---|---|---|---|
MAC Table Size: | 2K | Power Consumption: | <3W |
MTBF: | 100 000 HOURS | Operating Temperature: | -40~80℃ |
High Light: | Aluminum Managed Ethernet Switch,Industrial Ring Ethernet Fiber Switch,IP40 Ethernet Fiber Switch |
L2+ Industrial Ring Managed Ethernet Switch 4 x 10/100TX + 4 x RS485 + 2 x 100FX SC Ports
Technical Parameter
Physical Port | |
Copper Ports | 4 × 10/100BASE-TX, RJ45 |
Fiber Ports | 2 x 100BASE-SC (ST/FC Optional) |
Serial Ports | 4 x RS485, Industrial Terminal Block |
Parameters | |
Standards |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3x flow control and back pressure IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3ah OAM Link-Fault Management IEEE 802.1X Port-Based Network Access Control |
MAC address table | 2K |
Transmission mode | Store and Forward (full/half duplex mode) |
Serial port mode | Supports multiple modes: server, terminal, UDP, multicast |
Serial port type | Support transparent transmission mode, MODBUS TCP to RTU, special frame mode |
Power Information | |
Redundant power input | 7-28V DC |
Power Consumption | <3W |
Mechanical Information | |
Casing | IP40 Aluminum |
Mounting Options | DIN-Rail / Wall-mount |
Working Environment | |
Operating Temperature | -40℃~80℃ |
Operating Humidity | 5%~90% non-condensing |
Storage Temperature | -40℃~80℃ |
Warranty | |
MTBF | 100,000 hours |
Defects Liability Period | 2-year warranty, lifetime technical support |
Certification Standard | |
EMI | FCC Part15 Subpart B Class A,EN 55022 Class A |
EMS |
EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 |
Collision | IEC60068-2-27 |
Drop | IEC60068-2-32 |
Vibration | IEC60068-2-6 |
Safety grade | EN60950-1 |
Software | |
Functions | Management method: unified configuration management software |
Support device scanning monitoring | |
Support network topology diagram | |
Support remote start |
Product Overview
Managed industrial Ethernet switch is an intelligent industrial ring network switch product independently developed for industrial automation, power automation, intelligent transportation, and security monitoring. Support ring network redundancy function, embedded 4-way serial port server, support transparent transmission mode, Modbus TCP to RTU mode and rich network management functions, truly integrate ring network switch and serial port server, improve manageability, this switch provides Stable and reliable Ethernet transmission, with high-quality design and reliability. It can provide users with high-efficiency bandwidth and reliable fiber optic network solutions for Ethernet data exchange, serial data access, aggregation and remote optical transmission. The product has the characteristics of small size, no fan, low power consumption, high reliability, good stability, and convenient maintenance.
Features
*Support 4-Port 10/100TX + 4-Port RS485 + 2-Port 100FX
*Support 4-Port RS485 serial server, each port can be configured in any mode server mode, terminal mode, UDP mode, multicast mode
*Serial port support type: transparent transmission, Modbus TCP to RTU and customized special conversion mode
*MAC address 2K, support unicast, multicast address allocation
*Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x store and forward mode
*Supports large backplane bandwidth, large switching cache, and ensures wire-speed forwarding of all ports
*Redundant dual DC power supply, support anti-reverse polarity, over-current protection function
*Support DIN-Rail and Wall-mount Installation
*-40°C -80°C wide working temperature

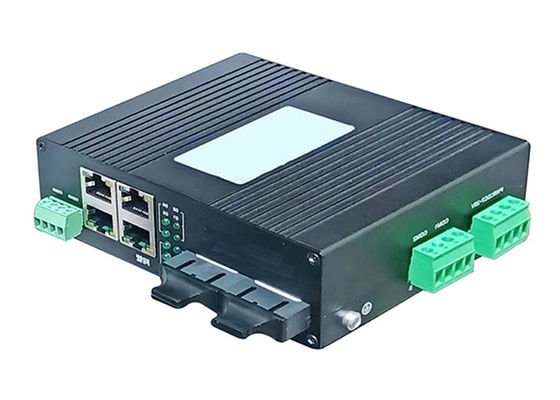

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
