| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 pcs/month |
| Air Switch Rated Voltage: | AC100V-AC240V | Rated Current: | 16A |
|---|---|---|---|
| Rated Power: | 50Hz~60Hz | Lightning Stroke Ability: | 10KA |
| Response Time: | ≤0.05S | Rated Load Current: | 16A |
| High Light: | Pre Warning IOT Comprehensive Intelligent Box,16A IOT Comprehensive Intelligent Box,Supervisory Case IOT Equipments |
||
Pre Warning Smart IOT Box Comprehensive Intelligent Box Supervisory Case
Technical Parameter
| Air switch | |||||
| Rated voltage | AC100V-AC240V | ||||
| Rated current | 16A | ||||
| Rated frequency | 50Hz~60Hz | ||||
| Lightning strike ability | 10KA | ||||
| Action time | ≤0.05S | ||||
|
|||||
| Rated load current | 16A | ||||
| Overflow action time | 2S | ||||
| Voltage operating range | AC85~300V | ||||
| Short circuit operation current | 20A | ||||
| Short-circuit operation time | 30ms | ||||
| Leakage operation current | ≥30mA | ||||
| Leakage inactive current | ≤15mA | ||||
| Leakage operation time | 30ms | ||||
| Overvoltage operation time | 30ms | ||||
| Overvoltage operation voltage | ≥275±5V,265V automatically restore power supply | ||||
| Undervoltage operating voltage | ≤100±5V,150V automatically restores power supply | ||||
| Overvoltage and undervoltage operation time | ＜100ms | ||||
| Reclosing interval | 30s/30m/1h | ||||
| Reclosing lock reset time | 5s | ||||
| Device power | ＜1W | ||||
| Surge resistance | 10/50,10KV itself is not damaged | ||||
| Installation mode | Guide rail installation | ||||
| Screen type | LED digital display | ||||
| Power surge protection module | |||||
| Max chase flow | 40KA,60KA,80KA,100KA,120KA optional | ||||
| Rated working voltage Un | AC220V | ||||
| Max continuous operating voltage Uc | AC385V | ||||
| Response time | <25ns | ||||
| Network surge protection module | |||||
| max flow | 10KA | ||||
| Network port | 4 RJ45 | ||||
| Rated working voltage Un | 5V | ||||
| max continuous working voltage | 8V | ||||
| Response time | ＜1ns | ||||
| Limit voltage Up | 20V | ||||
| Network signal transmission rate Vs | 10/100/1000Mbps | ||||
| Network signal protection cable | 1-8 core, supporting POE surge protection | ||||
|
|||||
| Network port | 1 10/100Base-T(X) rj45 port | ||||
| Power port | wiring terminal | ||||
| Operating temperature | -40°~85°(relative humidity 5% ~ 95% without condensation) | ||||
| Fiber Switch | |||||
| Network port | 5 10/100Base-T(X) rj45 port | ||||
| Fiber port | 1 100Base-X FC fiber port | ||||
| Backplane bandwidth | 1.8Gbps | ||||
| Cache | 1Mbit | ||||
| MAC address table | 2K | ||||
| Max frame length | 2048bytes | ||||
| Wavelength | 1310nm/1550nm(single mode single fiber),standard 20km | ||||
| Optical emission power | -8~-2 dBm | ||||
| Optical acceptance sensitivity | ≤-35 dBm | ||||
| Operating temperature | -40°~85°(relative humidity 5% ~ 95% without condensation) | ||||
| Output Power | |||||
| Centralized power supply unit | DC12V8A/DC12V16A/DC24V4A/DC24V8A optional | ||||
| DC power surge protector | 1.2/50μs 6KV(2Ω) | ||||
| AC220V output | 5-hole guide rail sockets | ||||
| Other parameters | |||||
| UPS(optional) | Battery capacity | 30Wh | |||
| Input power | AC150V-AC240V | ||||
| Operating temperature | -20℃-75℃ | ||||
| Fuse box | 4 SC | ||||
| Box power consumption | ＜12W (local power consumption) | ||||
| LED | LED | ||||
Product Overview
The pre-warning IOT box can collect and manage multiple data to achieve management functions such as multi-service data aggregation, transmission control, background alarm, and cloud platform monitoring. It can be widely used in the construction of smart public safety projects, including urban security monitoring, anti-terrorism monitoring, road bayonet monitoring, municipal facilities and environmental management, natural disaster monitoring and monitoring, water conservancy facilities monitoring.
Features
● Large multifunctional intelligent box.
● The box body adopts high strength cold rolled steel plate as a whole galvanized spray
● Equipped with one intelligent control 12V fan cooling system. When the temperature is higher than the set value, the fan starts to dissipate heat.
● With two intelligent dust removal fans.
● It has the function of monitoring tilt and collision. When the box tilts or is hit, the background will raise an alarm.
● Support real-time monitoring of mains input voltage, power failure alarm, reclosing trip report, remote power failure, power-on, restart function.
● It can determine whether the alarm is caused by the mains power failure or the equipment itself.
● Built-in backup battery, when the mains power failure support to continue to work, and report to the platform.
● Support box door switch status monitoring, abnormal open alarm.
● Electromagnetic lock device, remote consent to open the door.
● Support lightning arrester status monitoring, abnormal alarm.
● Monitor whether the box is waterlogged (optional).
● Support magnetic lock remote authorization opening and bluetooth unlocking (optional).
● Support box power consumption statistics (optional).
● Box supports the function of opening with the door.
● Support 485, 232 interfaces.
● Guide rail installation structure, convenient installation of power switch and power surge protection module.
● Built-in optical fiber welding box
● Built-in two or three plug 220V power socket, can remotely control the output switch state.
● Built-in 220V40KA lightning protection unit.
● AC220V, AC24V and DC12V provide status indicators.
● Power output can remotely control the switching state.
● Power output built-in lightning protection unit.
● Built-in insurance unit for each power output.
● CHINT 10A single phase power air switch with leakage
● Including network lightning protection device
● Including fault diagnosis transmission module
● Enclosure protection class: IP56
● Operating temperature: -40°C~+85°C
● Relevant certificates: commissioned test report issued by the Ministry of Public Security.
●National invention patent certificate: software copyright
● Support WEB management, support platform comprehensive management.

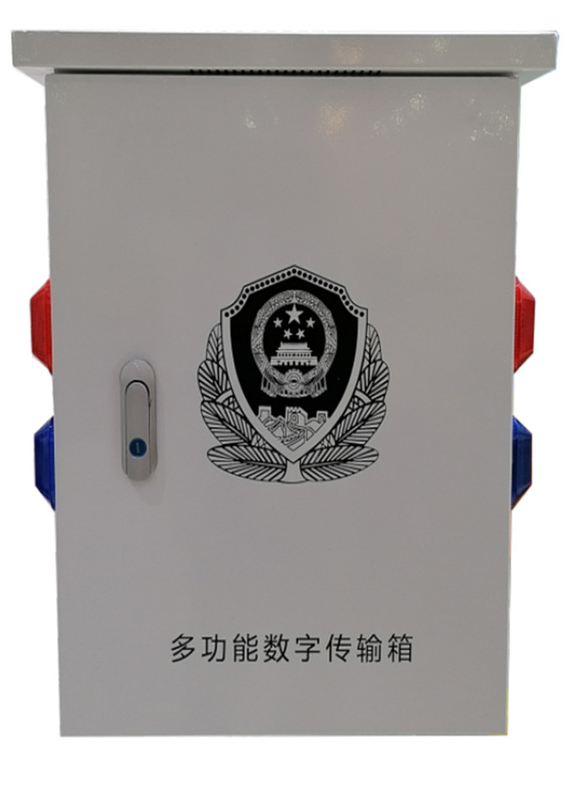

Product picture
Application field
● Anti-terrorism monitoring system
● Natural disaster monitoring and monitoring
● Wind and power monitoring system
● Urban road traffic monitoring system
● Industrial, coal mining and other production process monitoring system
● Urban security monitoring System (Safe City Project)
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
