| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE,FCC,ROHS |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Box, Carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | 100% T/T in advanced |
| Supply Ability: | 10000pcs every month |
| Data Transfer Rate: | 10/100/1000Mbps | Shock Resistance: | Yes |
|---|---|---|---|
| Product Name: | Industrial POE Switch | LED Indicators: | Yes |
| Power Supply: | AC/DC | Vibration Resistance: | Yes |
| Protocols Supported: | IEEE 802.3/802.3u/802.3ab | Operating Temperature: | -40℃~+85℃ |
| High Light: | 24 Port Industrial POE Switch,Industrial POE Switch with SFP Port |
||

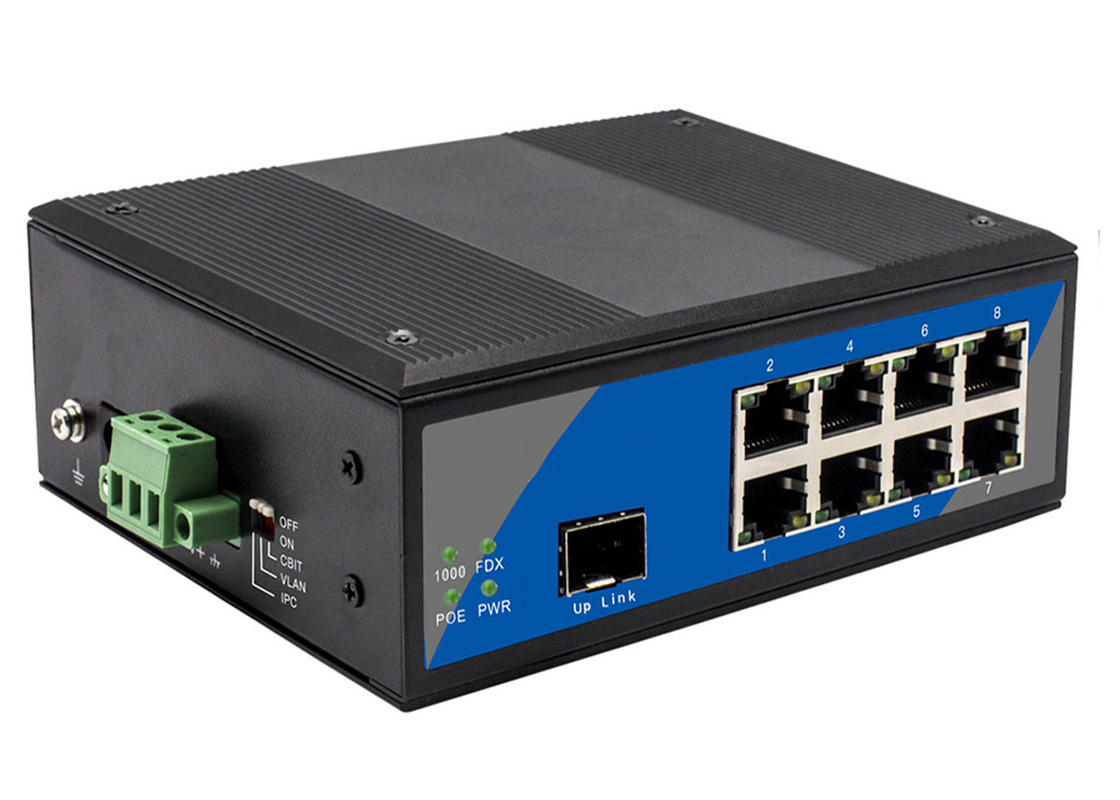

Introducing the Industrial POE Switch, the perfect solution for your networking needs. This switch is designed to provide reliable and efficient data transfer rates of up to 10/100/1000Mbps. The Industrial POE Switch is capable of operating between -40℃ and +85℃, making it a great choice for industrial applications. Its shock resistance ensures it can handle even the harshest conditions. The switch also supports both AC and DC power supply, making it easy to install in any environment. With its robust design, the Industrial POE Switch is the perfect choice for integrating POE fiber switch, fiber POE switch, and/or Ethernet switch into your network.
| Backboard capacity | 1.8G | |
| Cache | 1M | |
| MAC address | 2K | |
| Max frame | 1536bytes | |
| Ethernet port | 8 POE 10/100Mbps rj45 ports | |
| Optic interface | Optical module | |
| Ethernet port (10/100Mbps) | 8 | |
| Optic interface (10/100Mbps) | 1 | |
| Optical type | Single fiber single mode, 9/125um (multi-mode, 50um/125unu) | |
| Optical interface | FC, SC, LC for option | |
| Transmission distance | Standard 20Km (single fiber single mode), it is customized for max. 100Km | |
| Input voltage | DC44V - 57V | |
| Working temperature | -40℃ ~ 85℃ | |
| Relative humidity | 5% ~ 90% (Non-Condensing) | |
| Shell Material | Iron | |
| Heat dissipation | Built-in passive heatsink cooling, Silent fanless design | |
| Surge protection (Ethernet) | Common mode ±4KV(10/700µS), Differential mode ±2KV(10/700µS) | |
| Surge protection (Power) | 2000A (8/20µS) | |
| POE | Standard Protocol | IEEE 802.3af/at |
| Pin Definition | V+,V+,V-,V- Corresponding to 1,2,3,6 | |
| The Output Power | IEEE802.3af:15.5W IEEE802.3at:25.5W | |
| Power consumption | Full load≤4.8W | |
| Mean Time Between Failure (MTBF) | 100,000 hours | |
Industrial POE Switch is a reliable and cost-effective device used to connect and manage networks in industrial environments. It is a type of POE Fiber Switch that supports IEEE 802.3/802.3u/802.3ab protocols and features Power Over Ethernet (POE) technology to enable data and power transmission over a single Ethernet cable. This Industrial POE Switch is from AEO, a China-based brand known for its high-quality products and comes with CE,FCC,ROHS certification. It features a shock resistance design to ensure long-term reliable performance and is available with 4/8/16/24 ports. The minimum order quantity is 1 set, and it is packed in a box or a carton. Delivery time is 3-4 working days, and the payment term is 100% T/T in advanced. The company has the capacity to supply up to 10,000 pieces of this Industrial POE Switch every month.
Brand Name: AEO
Place of Origin: China
Certification: CE,FCC,ROHS
Minimum Order Quantity: 1 set
Packaging Details: Box, Carton
Delivery Time: 3-4 working days
Payment Terms: 100% T/T in advanced
Supply Ability: 10000pcs every month
Fiber POE Switch, POE Ethernet Fiber Switch, POE Ethernet Fiber Switch
Q: What is Industrial POE Switch?
A: Industrial POE Switch is a network switch that integrates PoE power supply technology. It is designed for industrial automation applications.
Q: What brand is Industrial POE Switch?
A: Industrial POE Switch is provided by AEO.
Q: Where is the origin of Industrial POE Switch?
A: Industrial POE Switch is made in China.
Q: What certifications does Industrial POE Switch have?
A: Industrial POE Switch is certified with CE, FCC, and ROHS.
Q: What is the minimum order quantity for Industrial POE Switch?
A: The minimum order quantity for Industrial POE Switch is 1 set.
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
