| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 pcs/month |
| Product Name: | 1000M Single Port PoE Injector 60W | Port Description: | 2x Copper Cable RJ45 Ports, 1x AC Input Port |
|---|---|---|---|
| PoE Power Supply: | End-span: 1/2+,3/6- Spare Line Pair | Thermal Protection: | >100°C |
| PoE Standards: | IEEE 802.3af/at/bt | LEDs Indicator: | Power On, Green; POE Output, Yellow |
| High Light: | 240v gigabit poe injector,1000m single port gigabit poe injector,802.3 bt poe injector 60w |
||

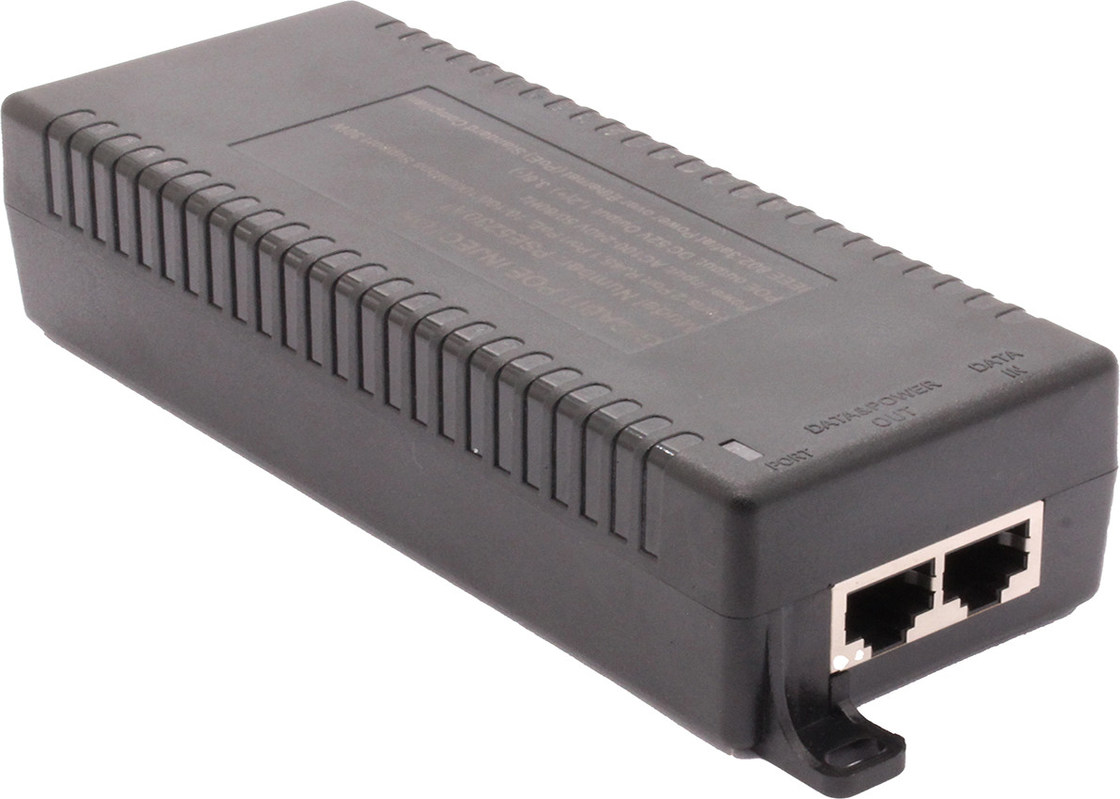

POE Injector Gigabit 60W with IEEE 802.3af/at/bt Power over Ethernet End-Span PSE
Technical Parameter
| Product Name | 1000M Single Port PoE Injector 60W |
| Port Description | 2x copper cable RJ45 ports, 1x AC input port. |
| PoE Power Supply | end-span: 1/2+,3/6- spare line pair |
| Network Medium | 1000BASE-TX: 5Cat and more UTP (≤100 meters) |
| Thermal Protection | >100°C |
| Performance | Working rate:1000Mbps working rate |
| Network port protection: meet with IEC61000-4-2(ESD) | |
| MTBF: 100,000 hours | |
| PoE Standards | IEEE 802.3af/at/bt |
| LEDs Indicator | Power on, Green; POE output, Yellow |
| Power | Total power: 60W |
| PoE port power: 60W | |
| AC input voltage: 100~240V 50-60Hz | |
| Output Voltage: 52V | |
| Dimensions/Weight | LxWxH: 142*56*38(mm), 0.2kg |
| Working Environment | Operating Temperature: -40°～ 75°C , Storage Temperature: -40°～ 85°C |
| Working Humidity: 10%～90%, non-condensing Storage Humidity: 10%～95%, non-condensing |
Product Overview
Our POE injector is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as network cameras, wireless AP, IP phone and other network devices power by POE, Complies with IEEE 802.3af/at/bt Power over Ethernet End-Span PSE.
Product Features:
Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
1-Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device
1-Port 10/100/1000Mbps interface for uplink
Complies with IEEE 802.3af/at/bt Power over Ethernet End-Span PSE
Supports PoE Power up to 60 watts for each PoE port
60-watt PoE budget
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m
Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
Product pictures
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
