IP56 Iot Equipments , IoT Interface Box CE FCC

IP56 Iot Equipments , IoT Interface Box CE FCC

IP56 Iot Equipments , IoT Interface Box CE FCC
IP56 Iot Equipments , IoT Interface Box CE FCC
IP56 Iot Equipments , IoT Interface Box CE FCC
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T, L/C
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Air Switch Rated Voltage: AC100V-AC240V Rated Current: 16A
Rated Power: 50Hz~60Hz Lightning Stroke Ability: 10KA
Protection Grade: IP56 Operating Temperature: -40°C~+85°C
High Light:

IP56 iot equipments

,

CE FCC iot equipments

,

IP56 iot interface box

Intelligent Smart Box with GPS Pinhole Camera 48V UPS for 30 Miniutes


Technical Parameter

Pre-warning operation and maintenance management unit Port 1 RJ45 port
RJ45 port 10/100M automatic detection, full/half duplex MDI/ MDI-x adaptive
Ethernet standard IEEE 802.3 10Base-T
IEEE 802.3u 100Base TX
IEEE 802.3x
Management and maintenance ●support the WEB management mode
●support SNMP v1/v2/v3
●supports remote unified upgrade
Supported Functions

●support temperature control, heat dissipation, and intelligent dust removal

●support LED lighting intelligent opening
● support stroboscopic indicator is enabled periodically
●support access switch buzzer alarm
●supports tilt collision detection
●supports water immersion status detection
●real-time temperature and humidity data can be obtained
●supports remote power control
●supports smart Bluetooth electromagnetic lock management and remote control
●supports SPD status detection and lightning strike count statistics
●supports the management and control of the positioning module

Pre-warning operation and maintenance management unit   ●supports the management and control of 4G network transmission modules
●support capture camera management control
●support real-time indication of working status
●support power statistics
Industry standard

IEC(EN)61000-4-2(ESD) :±8kV contact discharge,±12kV air discharge

IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz)

IEC(EN)61000-4-4(EFT) : network port : ±4kV CM//±2kV DM ;

IEC(EN)61000-4-5(Surge) : network port : ±4kV CM//±2kV DM ;

IEC(EN)61000-4-6(radio-frequency conduction) : 3V(10kHz~150kHz),10V(150kHz~80MHz)

IEC(EN)61000-4-16(common-mode conduction) : 30V cont. 300V,1s

IEC(EN )61000-4-8

Main parts parameter automatic reclosing lock

Over current short circuit protection, loss of phase protection, loss of voltage/overvoltage protection, leakage protection

Fault memory/display, detection before closing, automatic reclosing, etc

Voltage operating range:AC85~300V

Rated load current:16A
Leakage action current:≥30mA

Leakage operation time:30ms

Short-circuit operation current:50A

Short-circuit operation time:30ms



Main parts parameter automatic reclosing lock

Overpressure operation time:30ms
Overflow operation time:2S

Overvoltage operation voltage: ≥275±5V, 265V automatically restore power supply

Undervoltage operation voltage: ≤100±5V, 150V automatically restore power supply

Power surge protection module Max sustained voltage Uc: 385V
Nominal discharge current In(8/20) : 20KA
Max discharge current Imax(8/20us) : 40KA
Voltage protection level Up: ≤1.4KV
Response time tA: ≤25ns
Installation method: 35mm guide rail installation
New national standard 5-hole socket

Gb 2/3 insert 5 holes; Flame retardant ABS material

Rated power: 10A

16A air switch

Rated voltage: 230V

Rated current: 16A

The number of poles: 2P

Overload/short circuit protection/leakage protection

Bluetooth magnetic lock

Operating voltage: DC12V

Magnetic lock suction: 60Kg

Unlocking time: ≤1s

Bluetooth communication distance: Maximum 20 meters






Mechanical characteristics Surface treatment process outdoor baking paint
Box color Highlighter white (other colors can be customized)
Structure process rain proof brim structure
Protection level IP56
Mechanical characteristics Installation methods Pole, wall hanging, floor and other installation methods
Heat dissipation mode Intelligent temperature control heat dissipation fan
Operating temperature -40~85°C(-40~185°F)
Storage temperature -40~85°C(-40~185°F)
Relative humidity 5%~95%(no condensation)




Product Overview

Intelligent Smart Box with GPS Pinhole Camera 48V UPS for 30 Miniutes can collect and manage multiple data to achieve management functions such as multi-service data aggregation, transmission control, background alarm, and cloud platform monitoring.



Features

● Large multifunctional intelligent box.

● The box body adopts high strength cold rolled steel plate as a whole galvanized spray

● Equipped with one intelligent control 12V fan cooling system. When the temperature is higher than the set value, the fan starts to dissipate heat.

● With two intelligent dust removal fans.

● It has the function of monitoring tilt and collision. When the box tilts or is hit, the background will raise an alarm.

● Support real-time monitoring of mains input voltage, power failure alarm, reclosing trip report, remote power failure, power-on, restart function.

● It can determine whether the alarm is caused by the mains power failure or the equipment itself.

● Built-in backup battery, when the mains power failure support to continue to work, and report to the platform.

● Support box door switch status monitoring, abnormal open alarm.

● Electromagnetic lock device, remote consent to open the door.

● Support lightning arrester status monitoring, abnormal alarm.

● Monitor whether the box is waterlogged (optional).

● Support magnetic lock remote authorization opening and bluetooth unlocking (optional).

● Support box power consumption statistics (optional).

● Box supports the function of opening with the door.

● Support 485, 232 interfaces.

● Guide rail installation structure, convenient installation of power switch and power surge protection module.

● Built-in optical fiber welding box

● Built-in two or three plug 220V power socket, can remotely control the output switch state.

● Built-in 220V40KA lightning protection unit.

● AC220V, AC24V and DC12V provide status indicators.

● Power output can remotely control the switching state.

● Power output built-in lightning protection unit.

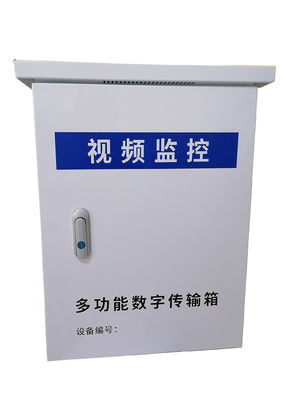

Product picture

IP56 Iot Equipments , IoT Interface Box CE FCC 0



Packaging & Shipping



● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
