Intelligent Monitoring Box PoE Switch IoT Box All In One Management Control Box

Intelligent Monitoring Box PoE Switch IoT Box All In One Management Control Box
Intelligent Monitoring Box PoE Switch IoT Box All In One Management Control Box

Large Image :  Intelligent Monitoring Box PoE Switch IoT Box All In One Management Control Box

Product Details:

Place of Origin: China
Brand Name: AEO
Certification: CE, FCC

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T, L/C
Supply Ability: 10000 pcs/month
Detailed Product Description
Air Switch Rated Voltage: AC100V-AC240V Rated Current: 16A
Rated Power: 50Hz~60Hz Lightning Stroke Ability: 10KA
Protection Grade: IP56 Operating Temperature: -40°C~+85°C
Power Consumption: Standby<50W MTBF: 100 000H
High Light:

PoE Switch IoT Box

,

Intelligent Control IoT Box

IoT Box PoE Switch IoT Intelligent Control Box All in One Management Control Box


Technical Parameter

220V AC power supply air switch 1 set, 220V/20A
220V AC power supply lightning arrester

1 set power lightning arrester: 220V max: 40kA, In: 10KA

Voltage protection Level≤1.1kV

Adding 1.2/50us (8-20us ) combined wave of L-N, 2KV does not cause to malfunction, 6KV is non-damaged, the upper limit is 10KV.

Auto-reclosing

Working voltage: 175-275VAC 50-60Hz

Rated output current: 10A

Electric leakage protection / action time: 300mA/≤0.1S

Over voltage protection / action time: AC275V/2-5S

Under voltage protection / action time: AC145V/2-5S

Over current protection / action time: 16A/2-5S

Short circuit protection/ action time: 3 times input current/≤0.1S

Detection function before closing, with remote control function

AC24V power supply 1 set of AC100-264V input, AC24V/2.5A output, 60W AC power supply
DC52V power supply 1 set of AC100-264V input, DC52V/4.8A output, 250W DC power supply
DC12V power supply 3 set of AC100-264V input, DC12V/8.5A, DC power supply with total power of 90W
Power Consumption Standby<50W, Full Load<1500W
Data Control Unit
Main control boardparameters

Flash:4GByte

DDR: 512MByte

CPU: ARM 600MHz

Data port

1ch RS232 data

1ch RS485 data

2ch switch interface

Extended Function port

1ch fan control

1ch lighting control

1ch automatic heating control

1ch local storage SD card slot

1ch water leak detection control

1ch 4G wireless routing expansion slot

Alarm Output port

1ch alarm output

1ch door status output

1ch status indicator output

1ch automatic lighting status output
Controlled Power Supply

1ch 24VAC output

3ch 12VDC output

Support remote control

Ethernet port 1*10/100Base-TX RJ45 port for transmitting control signals
Ethernet Standard IEEE802.3 10Base-TX, IEEE802.3u 100Base-TX
Screen Display A status display LCD screen, used to display the address of the device, query the status of various control switches
Door Alarm switch Unpacking alarm signal output
PoE Power Supply Transmission Unit
Fixed Port

7*10/100/1000Base-T PoE ports (Data/Power)

1*10/100/1000Base-T uplink RJ45 ports (Data)

2*100/1000Base-X uplink SFP fiber slot ports (Data)

1*Console RS232 port (115200,N,8,1)

Ethernet Port Port 1-8 can support 10/100/1000Base-T auto-sensing,Full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-T: Cat5e or later UTP(≤100 meter)

Optical Fiber Port Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable/ Distance Multi-mode:850nm/ 0~500m, Single-mode:1310nm/ 0~40km,1550nm /0~120km.
Chip Parameter
Network Management Type L2+
Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T

IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE802.3x

Forwarding Mode Store and Forward(Full Wire Speed)
Switching Capacity 192Gbps (non-blocking)

Forwarding

Rate@64byte

14.88Mpps
MAC 8K
Buffer Memory 4M
Jumbo Frame 9.6K
LED Indicator Power: PWR (green), system:SYS (yellow), network:Link (yellow), PoE: PoE (green), Fiber port : L/A (green)
Reset Switch Yes, support one key to restore factory settings
PoE & Power
PoE Port Port 1 to 7
PoE Management

PoE working status

Delay start of power supply

PoE output priority configuration

Scheduling of PoE operation and time

Total power limit of PoE power supply

PoE output power allocation, off& af &at

Power Supply Pin Default: 1/2 (+), 3/6 (-)
Max Power Per Port 30W, IEEE802.3af/at
Total PWR / Input Voltage 250W/52VDC
Power Consumption Standby<8W, Full Load<240W
Physical Parameter
Operation TEMP / Humidity -40~+75°C,5%~90% RH Non condensing
Storage TEMP / Humidity -40~+80°C,5%~95% RH Non condensing
MTBF >100000 hours
Dimension (L*W*H) 542*440* 280mm
Net /Gross Weight <26kg / <28kg
Installation Pole hoop mount
Certification & Warranty
Lightning protection / protection level Lightning protection: 6KV 8/20us; Protection level: IP55
Certification CCC, CE mark, commercial, CE/LVD EN60950,
Warranty 3 years, lifelong maintenance.




Product Overview

It is an intelligent transmission and power control system with high integration, high functionality, and simple use. It has a modular structure and provides multiple sets of power output and remote monitoring control. The transmission module can be selected according to the application requirements to realize the optical transmission of various topologies. The IoT comprehensive intelligent box consists of project requirements, integrated PoE power supply network transmission module, port lightning protection module, power supply control module, etc.



Features

  • Built-in lightning protection module, air switch, input voltage detection, input voltage overload/underload alarm, lightning strike count indication.
  • Modular design, centralized the power supply, automatic reclosing, voltage short circuit trip, self-recovery power supply. More than 1 set AC220V power output, 3 set DC12V output, 1 set AC24V output, 1 set DC52V output.
  • Remote PoE power supply and management, multi-channel UTP network connection, fiber connection, link alarm, supporting fiber optic splice trays and fiber optic adapter.
  • Power failure detection, voltage, current monitoring, on-site recording and remote viewing of device name and model, voltage output, real-time reporting of detection results, positioning of equipment through cloud platform and online map.
  • The IoT intelligent box related information can be managed by the QR code in the box to record all status information and logs of the device.
  • The mechanical lock installed in the box provides the function of preventing the box from being disassembled, and when the box door is opened, the operation and maintenance platform actively gives an alarm prompt.(Optional)
  • The network management data is output through Ethernet and the key data of operation.

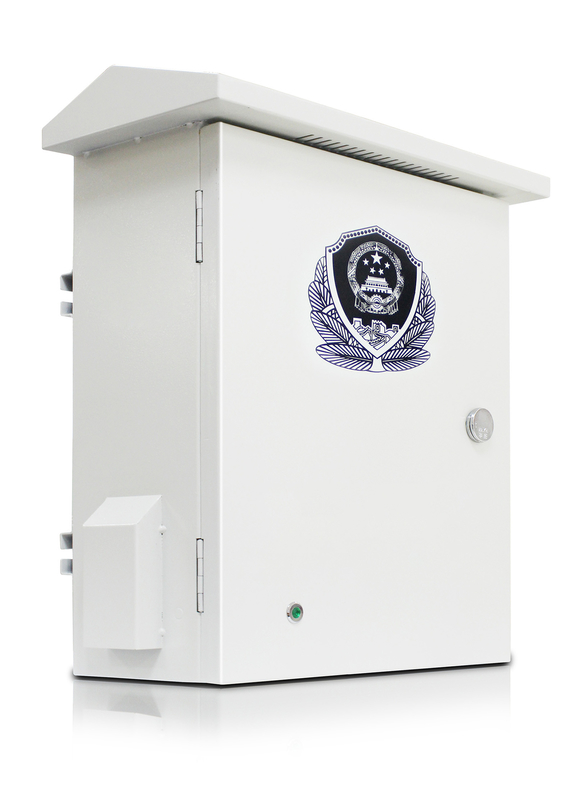

Product picture

Intelligent Monitoring Box PoE Switch IoT Box All In One Management Control Box 0



Packaging & Shipping



● All of our package are international standard package
● We will deliver our products as soon as the order confirmed

Intelligent Monitoring Box PoE Switch IoT Box All In One Management Control Box 1
