L2 Managed Industrial BT PoE SFP Switch 10 Port Full Gigabit Dual DC Power Input Din Rail

L2 Managed Industrial BT PoE SFP Switch 10 Port Full Gigabit Dual DC Power Input Din Rail

  • L2 Managed Industrial BT PoE SFP Switch 10 Port Full Gigabit Dual DC Power Input Din Rail
L2 Managed Industrial BT PoE SFP Switch 10 Port Full Gigabit Dual DC Power Input Din Rail
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T
Supply Ability: 10000 pairs/month
Contact Now
Detailed Product Description
Switching Capacity: 20Gbps Forwarding Rate@64byte: 14.88Mpps
CPU: 416MHz DRAM: 1G
FLASH: 128M MAC: 8K
Power Supply Pin: 1/2(+)3/6(-) 4/5(+)7/8(-) Power Consumption: Standby<8W, Full Load<480W
High Light:

L2 Managed PoE SFP Switch

,

Industrial BT PoE SFP Switch

,

10 Port L2 Managed Switch

L2 Managed Industrial bt PoE SFP Switch 10 Port Full Gigabit Dual DC Power Input Din Rail

Technical parameters

Interface Characteristics
Fixed Port

1*RS232 console port (115200,N,8,1)

2*100/1000Base-X uplink SFP ports (Data)

8*10/100/1000Base-T bt PoE ports (Data/Power)

2 set of V+, V- redundant DC power interface (6 Pin Phoenix terminal)

Ethernet Port Port 1-8 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP(≤100 meters)

100BASE-TX: Cat5 or later UTP(≤100 meters)

1000BASE-T: Cat5e or later UTP(≤100 meters)

SFP Slot Port Gigabit SFP optical fiber port, default no include optical modules (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance

Multi-mode: 850nm/ 0-500m

Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.

Chip Parameter
Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX

IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x

Forwarding Mode Store and Forward(Full Wire Speed)
Switching Capacity 20Gbps

Forwarding

Rate@64byte

14.88Mpps
CPU 416MHz
DRAM 1G
FLASH 128M
MAC 8K
Buffer Memory 4M
Jumbo Frame 9.6K
LED Indicator

Fiber port: L/A (Green), PoE: PoE (Green)

Power: PWR (Yellow), System: SYS (Yellow), Network: Link (Yellow)

Reset Switch Yes, (Press and hold for 10 seconds and release, the switch will restore the factory settings)
PoE & Power Supply
PoE Port Port 1 to 8, IEEE 802.3 af/at/bt
PoE Management

Port PoE working status display

Port PoE output priority configuration

PoE power supply total power limit configuration

Power delay start, PoE work and time scheduling

Port PoE output power distribution, PoE on/off, af/at/bt power distribution

Power Supply Pin 1/2(+)3/6(-) 4/5(+)7/8(-)
Max Power Per Port 90W, IEEE 802.3 af/at/bt
Power Consumption Standby<8W, Full load<480W
Working Voltage DC48-57V, 6 Pin industrial Phoenix terminal, support anti-reverse protection.
Power Supply No, optional 48V/240W or 48V/480W industrial power supply
Physical Parameter
Operation TEMP / Humidity -40°C~+80°C, 5%~90% RH Non condensing
Storage TEMP / Humidity -40°C~+85°C, 5%~95% RH Non condensing
Dimension(L*W*H) 165*148*54mm
Net /Gross Weight <0.8kg / <1.2kg
Installation Desktop, 35mm DIN rail



Product overview

L2+ managed industrial bt PoE fiber switch independently It has 8*10/100/1000Base-T adaptive RJ45 and 2*100/1000Base-X SFP fiber ports. Port 1-8 supports IEEE 802.3 af/at/bt PoE standard, and the single-port PoE power up to 90W. As a PoE power supply device, it can automatically detect and identify powered devices that meet standards and power them through network cables. Powering POE terminal equipment such as high-power wireless AP, network dome cameras, high-power PoE lighting, industrial sensors, and high-power network industrial control equipment through network cables to meet the network environment that requires high-density and high-power PoE power supply.


Product featurer

Gigabit access, SFP fiber port uplink

Support non-blocking wire-speed forwarding.

Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

The combination of RJ45 port and SFP fiber port allows users to flexibly build networks to meet the networking needs of various scenarios.



Intelligent PoE power supply

PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.

8*10/100/1000Base-T RJ45 ports can support bt PoE power, meeting the demand for super high power PoE power supply in various scenarios.

The max output power of single-port POE is 90W, and the backwards compatibility IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.



Strong business processing ability

Support ERPS ring network and STP/RSTP/MSTP to eliminate layer 2 loops and realize link backup.

Support IEEE 802.1Q VLAN, users can flexibly divide VLAN according to needs, support Voice VLAN and QinQ configuration.

Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.

Support QoS, port-based, 802.1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.

Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.

Support IGMP V1/V2/V3 multicast protocol and IGMP Snooping to meet multi-terminal high-definition video surveillance and video conference access requirements.



Security

Support port isolation.

Support port broadcast storm suppression.

Support IP+MAC+port+VLAN quadruple flexible combination binding function.

Support 802.1X authentication to provide authentication functions for LAN computers, and control the authorization status of controlled ports according to the authentication results.

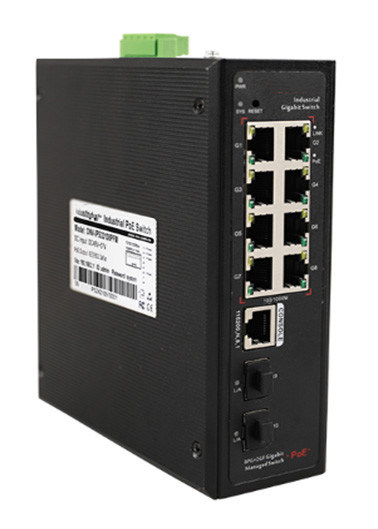

Product picture
L2 Managed Industrial BT PoE SFP Switch 10 Port Full Gigabit Dual DC Power Input Din Rail 0



Packaging & Shipping



● All of our package are international standard package
● We will deliver our products as soon as the order confirmed

L2 Managed Industrial BT PoE SFP Switch 10 Port Full Gigabit Dual DC Power Input Din Rail 1
