| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pairs/month |
| Local Loop: | 1 Channel Local Loop Out | Wavelength: | 1310nm/1550nm |
|---|---|---|---|
| Resolution (of A Photo): | 4K@60HZ | Transmission Rate: | 11.88Gbps |
| Power Wastage: | ＜10W | Relative Humidity: | 0-95% No Condensation |
| High Light: | 12G-SDI SDI Fiber Converter,4K 60HZ SDI Fiber Converter |
||

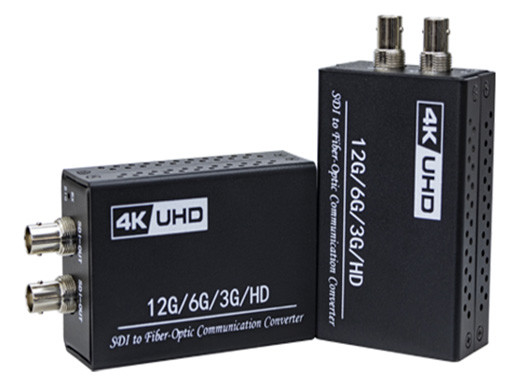

SDI Fiber Converter 4K@60HZ 12G-SDI Compatible with 1080P 1080I 720P
Technical Parameters
| Number of input channels | 1 channel |
| local loop | 1 channel local loop out |
| wavelength | 1310nm,1550nm |
| resolution (of a photo) | 4K@60HZ, backward compatible with 1080P, 1080I, 720P |
| transmission rate | 11.88Gbps |
| power wastage | ＜10W |
| relative humidity | 0-95% no condensation |
| Module Type | Pluggable SFP Optical Module |
| optical interface | LC interface |
| Fiber Type | Singlemode/Multimode |
| batteries | 970 Battery Snap-In Plate |
| transmission distance | Standard 20km, customizable 0-60km |
| electric power source | 9-18VDC/2A wide voltage supply |
| operating temperature | -20℃-50℃ |
| LED status indication |
Power, Optical, Video |
Overview
With unparalleled signal accuracy, super stability, and super reliability, NextVision 4K Ultra HD video fiber optic extender is the ideal HD video fiber optic transmission equipment for TV stations, CMMB, IPTV, mobile TV, cell phone TV and other new media.
Features
· Signal input with automatic cable equalization and output with drive function; Clock recovery function on both transmitter and receiver;
· LED lights are well-designed, and it is convenient to monitor the working status of the equipment through the LED lights;
· Lead-free environmentally friendly circuit board PCB design PCB circuit board adopts multi-layer design, stable and reliable circuit, stable and · reliable signal transmission;
· All components, including connectors, use the products of international famous manufacturers, reliable quality; The use of aluminum material shell design, beautiful and light weight;
· Rack-mount optional dual switching power supply design, wide voltage range, power supply system for a long time and reliable work;
Product Picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
