| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pairs/month |
| Power: | 12V DC | Transmission Rate: | 11.88Gbps |
|---|---|---|---|
| Power Wastage: | ＜10W | Relative Humidity: | 0-95% No Condensation |
| Pattern: | SD/HD/3G-SDI | Transmission Distance: | 20km |
| High Light: | 1Ch SDI Fiber Converter,HD SDI Fiber Converter,HD/3G SDI Over Fiber Converter |
||
1Ch SDI Fiber Converter SD/HD/3G-SDI Pattern Generator HD/3G SDI over Fiber Converter
Technical Parameters
| Number of input channels | 1 channel |
| local loop | 1 channel local loop out |
| wavelength | 1310nm,1550nm |
| transmission rate | 11.88Gbps |
| power wastage | ＜10W |
| relative humidity | 0-95% no condensation |
| Module Type | Pluggable SFP Optical Module |
| optical interface | LC interface |
| Fiber Type | Singlemode/Multimode |
| batteries | 970 Battery Snap-In Plate |
| transmission distance | Standard 20km, customizable 0-60km |
| electric power source | 9-18VDC/2A wide voltage supply |
| operating temperature | -20℃-70℃ |
| LED status indication |
Power, Optical, Video |
Overview
SD/HD/3G-SDI pattern generator, which supports 2970Mb/s, 1485Mb/s and 270Mb/s color bar pattern with moving circle and embedded 1 KHz audio. It is a compact structure device and easy to use, and can be widely used in TV live broadcast, high-definition video conference, high-definition video monitoring, intelligent transportation system and public security system.
Features
1. Comply with SMPTE-424M 3G-SDI, SMPTE-292M HD-SDI and SMPTE-259M SD-SDI standard, supports 2970Mb/s, 1485Mb/s and 270Mb/s
2. Support NTSC and PAL, which can be switched by button on the front panel
3. Support the most popular SDI format, which can be switched by button on the front panel
4. Support 1080P@59.94/29.97, 1080I@59.94, 720P@59.94, 525I@59.95 format of NTSC
5. Support 1080P@60/30, 1080I@60, 720P@60, 625I@50 format of PAL
6. Support embedded 8 channel audio signal of 1 KHz sine wave
7. Support NTSC/PAL and SDI format indicator led on the front panel
8. 12V DC power supply, consumption: 1.5W±10%
9. Dimension: 93.0mmx46.2mmx29.6mm

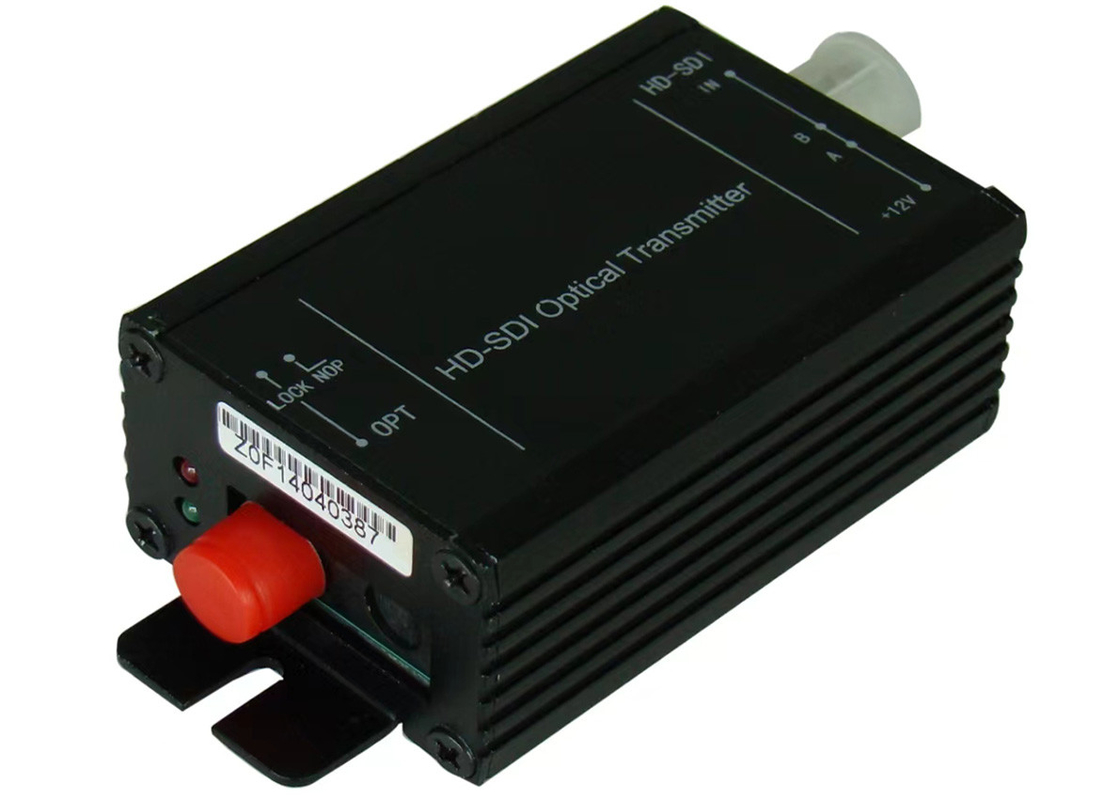

Product Picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
