3G-SDI Fiber Converter with Loop Out Fiber Optic Transceiver HD/SD/3G SDI Fiber Extender

Product Details:

Place of Origin:	China
Brand Name:	AEO
Certification:	CE, FCC

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	negotiation
Packaging Details:	package and carton
Delivery Time:	5-8 working days
Payment Terms:	T/T
Supply Ability:	10000 pairs/month

Contact Now

Detailed Product Description

Power Supply:	DC 5V -12V	Operating Temperature:	-20°C ~ 70°C
Storage Temperature:	-40°C ~ 85°C	Video Bits Rate:	Max 3.2Gb/s
Transmission Distance:	20km	Fiber Interface:	Simplex LC
High Light:	HD/SD/3G SDI Fiber Extender , 3G-SDI Fiber Converter Extender , Loop Out 3G-SDI Fiber Converter

3G-SDI Fiber Converter with Loop Out Fiber Optic Transceiver HD/SD/3G SDI Fiber Extender

Technical Parameter

Fiber interface	Simplex LC
Transmission distance	0-20Km (Other distance available)
Wavelength	1310nm/1550nm
SDI format support	625/25 PAL
	525/29.97 NTSC, 525/23.98 NTSC
	720p50, 720p59.94
	1080i 23/24/30/50/59.94
	1080P 23.98/24/30/50/60
Video SDI standard	270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
	SMPTE425M3Gb/s Mapping(3G-SDI)
	SMPTE424M 3Gb/s serial interface(3G-SDI)
Input Cable Specifications	≤ 150m (Belden 1694A cable standard)
Output Cable Specifications	≤ 150m (Belden 1694A cable standard)
Power adaptor	5~12V DC
Power consumption	<5W
Dimensions (LxWxH)	80 x 40 x 20 mm
Weight	0.8KG/pair
Casing	Aluminum Case
Mounting Options	Desktop
Environmental
Working Temperature	-20℃～+70℃
Storage Temperature	-40℃～+80℃
Working Humidity	0~95%
MTBF	≥100000 hours

Overview

3G/HD-SDI Fiber Converter supports 1-channel 3G/HD-SDI Video (audio embedded) & Tally or Reverse RS485 signal transmitted via fiber optical cable, and monitor the signal locally over a 3G/HD-SDI loop output. E-link 3G/HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal.

Features

► Supports bidirectional HD/3G SDI and embedded audio synchronous transmission;

► Dual color BNC design for easy identification of input and output signals (gold as input);

► Supports HDTV 1080P, 1080I, 720P. Maximum 1920* 1080@60Hz ;

► Strong compatibility, without selecting signal sources and devices;

► Adaptive technology, without setting adjustments, supports plug and play and hot swapping;

► The status indicator LED lights provide real-time monitoring of parameters such as power supply, optical path, and video

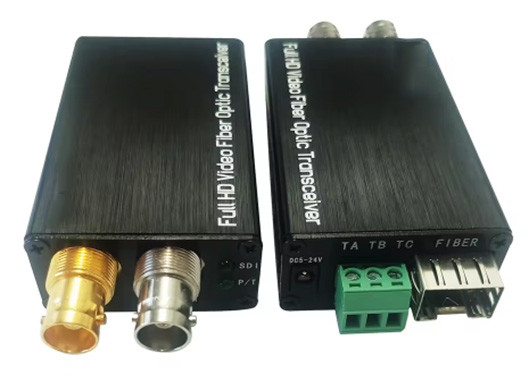

Product Picture

3G-SDI Fiber Converter with Loop Out Fiber Optic Transceiver HD/SD/3G SDI Fiber Extender 0
