10/100/1000Mbps 16 Port POE Managed Switch

China Shenzhen Qiutian Technology Co., Ltd certification
China Shenzhen Qiutian Technology Co., Ltd certification
I'm Online Chat Now

10/100/1000Mbps 16 Port POE Managed Switch

10/100/1000Mbps 16 Port POE Managed Switch
10/100/1000Mbps 16 Port POE Managed Switch

Large Image :  10/100/1000Mbps 16 Port POE Managed Switch

Product Details:

Place of Origin: China
Brand Name: AEO
Certification: CE, FCC

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T, L/C
Supply Ability: 10000 pcs/month
Detailed Product Description
Backplane Capacity: 64G Cache: 4.1M
MAC Address Table: 16K Maximum Frame Size: 10000bytes
IPC/VLAN Dip Switch: Yes Max Voltage Range: AC 90~264V;47/63Hz
Working Temperature: -10~60°C Relative Humidity: 5% ~ 90%
Power Consumption: 36W Level Of Protection: IP30
Standard Protocol: IEEE802.3af/at Pin Definition: V+ V+ V- V-Corresponding To 4,5,7,8
Output Power: IEEE802.3af:15.5W IEEE802.3at:25.5W Output Power: 250W
Protection Grade: IP30
High Light:

10/100/1000Mbps 16 port POE managed switch

,

IP30 16 port POE managed switch

,

10000 bytes 16 port switch 1000 mbps

Managed 16 Port POE Switch 16 Gigabit POE and 4 Gigabit SFP and 4 Gigabit Ethernet Ports



Technical Parameter

Model AEO-GS5S9416M-P
Ethernet POE port 16
Combo port 4
Management port One Console port
Ethernet & SFP Port 10/100/1000Mbps
Exchange capacity 56G
Layer2 forwarding rate 36Mpps
Max Frame length 10000bytes
Cache 4.1Mbit
Switch mode Store and Forward
Port

IEEE 802.3x flow control(full duplex)

Supports PPS - based broadcast storm suppression

Trunk

LACP

Manual polymerization

Supports MAX 8 aggregation groups, each of which supports MAX eight ports

MAC Address

• Max 16K MAC

• Support the black hole MAC

VLAN

• Support for port-based VLANs (4K)

• GVRP

• VLAN VPN (QinQ)

Multicast

• IGMP Snooping

• IGMP V1/V2/v3

Layer2 loop protocol • STP/RSTP/MSTP protocol
Mirror

• N:1 port mirror

• Support stream mirroring

ACL

• Support L2-L4 packet filtering function, provide based on source MAC address, destination MAC address, source IP address, destination IP address, port, protocol type, etc

• Timetime-based ACL are supported

QoS

• Supports restrictions on the rate at which messages can be received and sent on the port

• Support 802.1p and DSCP priority relabeling of packets

• Support message redirection

• Supports 8 port output queues

• Support for flexible queue scheduling algorithms (SP, WRR, SP+WRR)

Security features

• Support IEEE 802.1X authentication/centralized MAC address authentication

• AAA&RADIUS authentication support

• Supports MAC address learning limit

• Support MAC address binding with port and IP

• support SSH2.0

• Supports ARP intrusion detection

• Support port isolation

• Supports MAC address black holes

Management and maintenance

• Support for WEB/TFTP loading upgrades

• Support command line interface (CLI), Telnet, Console port for configuration

• Support SNMPV1/V2/V3, WEB network management

• Support system logging, hierarchical alarm, debugging information output

• Support for PING and Tracert

• Support for DLDP (Device Connection Detection Protocol)

• Support port loopback detection

Input Voltage

•Rated voltage range:AC 100~240V ;50/60Hz

• Max voltage range:AC 90~264V;47/63Hz

Max power consumption 36W
Working temperature -20℃ to 70℃
POE Standard protocol IEEE802.3af/at
  Pin definition V+ V+ V- V- to 1,2,3,6
  Total output power 250W
Working humidity 5% to 95% RH (No condensation)
MTBF 100000 hours
Enclosure material Metal case
Protection grade IP30



Product Introduction

16 10/100/1000Mbps adaptive POE RJ45 ports are provided, and all ports are equipped with line-speed forwarding capability; 4 gigabit Combo (SFP and Ethernet) ports are provided to fully protect user investment and networking.


Product Features
● Support Port/MAC/IP/VLAN ID intelligent scanning binding, quickly locate user information, easy operation, simplify network management; Combined with ARP attack protection function to completely solve the ARP spoofing and attack; Support port security, can limit the number of port MAC address learning, effective defense against MAC address attack; Support DoS attack protection, effectively ensure network security.

● Support IEEE 802.1Q VLAN, Voice VLAN and other rich VLAN functions to meet the needs of different users and make networking more convenient, efficient and secure.

● Support port IEEE802.1P and DSCP priority mode, support Equ, SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR four queue scheduling algorithms, ensure the priority of key business data processing; Support flow control function, can allocate bandwidth reasonably; Support voice VLAN to ensure the quality of calls.

●  Strong hardware ACL capability, support L2~L4 data flow classification; Support ACL based on port, VLAN, easy to achieve network monitoring, traffic monitoring, priority re-marking and data forwarding control; Support ACL control based on time, convenient to achieve access requirements for accurate control of time; Support port based and MAC based 802.1X authentication, easy to set user access rights.



● Support STP/RSTP/MSTP layer2 link protection technology, greatly improve the fault-tolerant, redundant backup capacity of the link, to ensure the stable operation of the network; Provide manual convergence, static LACP, dynamic LACP convergence mode, effectively increase link bandwidth, improve link reliability, and at the same time to achieve load balance, link backup; Multicast management is supported. IGMP Snooping technology can be used to effectively control network congestion caused by multicast flooding.

● Support CLI command line (Console, Telnet, SSHV1/V2), Web network management (HTTP, SSL V2/V3/TLSV1), SNMP (V1/V2c/V3) and other management methods, fast and convenient network management; Support user classification, identity filtering and other functions to enhance configuration security; Support port data monitoring, monitoring network status, easy to achieve unified global network management, convenient and flexible.

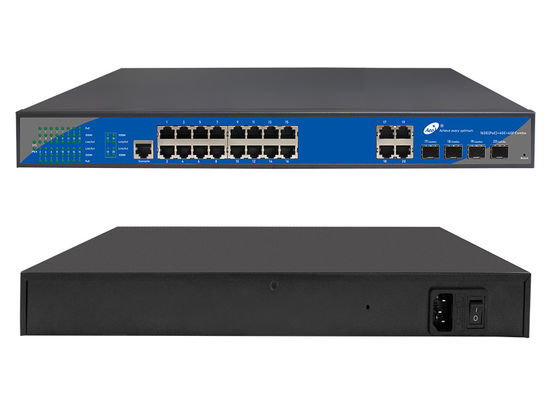

Product picture
10/100/1000Mbps 16 Port POE Managed Switch 0
Packaging & Shipping


● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



10/100/1000Mbps 16 Port POE Managed Switch 1
