| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC, ROHS |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/month |
| Network Ports: | 8 Gigabit POE Ethernet Port | Optical Ports: | 2 Gigabit SFP Ports |
|---|---|---|---|
| Backplane Bandwidth: | 20G | Cache: | 2M |
| MAC Address Table: | 16K | MAX Frame Length: | 10K |
| Fiber Ports Propertie: | 1310/1550nm | Transmission Distance: | 20-100KM |
| Transmission Power: | -10~-2 DBm | Received Sensitivity: | ≤-24 DBm |
| Network Ports Properties: | IEEE802.3、IEEE802.3U、IEEE802.3X Protocol | Network Port Delay: | ﹤9.6μS |
| Network Port Bit Error Rate: | ﹤1/1000000000 | Power Consumption: | ≤5W |
| POE Protocol: | IEEE802.3af/at | EN61000-4-2 Anti-static: | ±8KV Contact Discharge；±15KV Air Discharge |
| EN61000-4-5 Surge Voltage: | ±2KV/CM，±2KV/DM Power Cable，±2KVdata Cable | Power Terminal: | 6 Pin Industrial Terminal Interface |
| MTBF: | 100,000 Hours | POE Pin Definition: | V+、V+、V-、V- Corresponding To 4，5，7，8 (1.2.3.6 Can Be Custom-made) |
| POE Output Power: | IEEE802.3af：15.5W IEEE802.3at：30W | Operating Temperature: | -40 ~ 85℃ |
| Input Voltage: | +44~+57VDC | ||
| Highlight: | 20km 8 port gigabit switch managed,IP40 8 port gigabit switch managed,1310/1550nm POE switch with uplink port |
||
Managed Optical Fiber Switch Full Gigabit 8 POE Ethernet and 2 SFP Ports
Technical Parameters
| Processing Type | Store and Forward |
| MAC Table Size | 16K |
| Cache | 2M |
| Backplane | 20G |
| Max frame length | 10k |
| Fiber Ports | 1000BaseX SFP Slot |
| RJ45 Ports | 10/100/1000BaseT(X) auto negotiation speed |
| Full/Half duplex mode | |
| MDI/MDI-X connection |
| Connection | 1 removable 6-contact terminal block |
| Input Voltage | +44~+57VDC |
| Full-load Power | 5W |
| Reverse Polarity Protection | yes |
| Over current protection | yes |
| Housing | Hard aluminum alloy case |
| IP Rating | IP40 |
| Installation | DIN-rail mounting |
| Operating Temperature | Standard Models: -40 to 85℃ |
| Storage Temperature | -40 to 85℃ |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
System Overview
Managed industrial Ethernet switches. It supports up to 10 ports, which included 2 Gigabit fiber ports. This switch is low power consumption; the fanless design prevents it from noise interference; the operating temperature range is from -40~85°C. These make it provides safe and reliable solution for industrial automation, intelligent transportation, video monitoring, and other industrial application networking.
Product Features
>> Standards & Protocols
Standards: IEEE802.3, IEEE802.3u, IEEE802.3x,
IEEE802.3z, IEEE802.1Q, IEEE802.1p,
IEEE802.1s, IEEE802.1D, IEEE802.1W
Protocols: ICMP, TCP, HTTP, Telnet, UT-Ring, STP/RSTP, SNMP, LLDP, IGMP-Snooping, GMRP
Flow control: IEEE802.3x flow control, back pressure flow control
>> Ports
Fiber port: 1000Base-FX(SC/FC/ST)
1000Base-X(SC/FC/ST)
RJ-45 ports: 100/1000Base-T(X), auto MDI/MDI-X
>> Switching Performance
Forwarding rate:
Transmission mode: store-and-forward
MAC address buffer: 16K
Switching bandwidth: 20G
>> Power Consumption
Overload: <5W
>> Mechanical Characteristics
IP rating: IP40
Installation: DIN-Rail
>> Environment
Operating temperature: -40℃~85℃
Storage temperature: -40℃~85℃
Relative humidity: 0~95%(non-condensing)

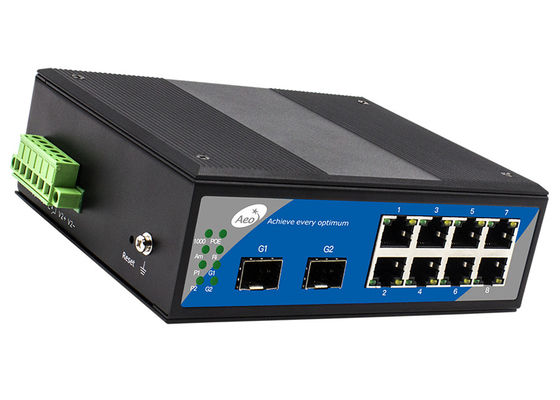

Product picture
Application Diagram
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
