10/100Mbps Industrial POE Switch

China Shenzhen Qiutian Technology Co., Ltd certification
China Shenzhen Qiutian Technology Co., Ltd certification
I'm Online Chat Now

10/100Mbps Industrial POE Switch

10/100Mbps Industrial POE Switch
10/100Mbps Industrial POE Switch

Large Image :  10/100Mbps Industrial POE Switch

Product Details:

Place of Origin: China
Brand Name: AEO
Certification: CE, FCC, ROHS

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000 pcs/month
Detailed Product Description
10/100M Network Ports: 4 POE 10/100M Optical Ports: 2
Backplane Bandwidth: 1.6G Cache: 1M
MAC Address Table: 2K MAX Frame Length: 1536bytes
Fiber Ports Propertie: 1310/1550nm Transmission Distance: 20-100KM
Input Voltage: +44~+57VDC Transmission Power: -8~-2 DBm
Received Sensitivity: ≤-35 DBm Network Ports Properties: IEEE802.3、IEEE802.3U、IEEE802.3X Protocol
Network Port Delay: ﹤9.6μS Network Port Bit Error Rate: ﹤1/1000000000
Power Consumption: ≤5W Operating Temperature: -40 ~ 85℃
High Light:

RJ45 Industrial POE Switch

,

15.4W Industrial POE Switch

,

10/100Mbps 4 port rj45 switch

Industrial POE Fiber Optical Switch 10/100Mbps 4 POE Ethernet and 2 Optical Ports



Technical Parameters

Network Ports Four 10/100Base-T(X) adaptive POE Ethernet port
Network Ports Properties RJ45
Network Ports protocol IEEE802.3,IEEE802.3U,IEEE802.3X protocol
Ports Features Support half-duplex, full-duplex, auto-negotiation mode
Ports Features Support MDI/MDI-X adaptation
Delay ﹤9.6μS
Bit Error Rate ﹤1/1000000000
Backplane Bandwidth 1.6G
Cache 1M
MAC address table 2K
Power consumption ≤5W
Transmission Rate 10/100Mbps
Optical Fiber Ports 2 10/100Mbps Single Mode FC Optical Fiber Ports
Optical Fiber Ports Properties Wave Length:1310/1550nm
Transmission Distance Adjacent Distance:0-100KM
POE protocol IEEE802.3af/at
Pin Definition V+,V+,V-,V- Corresponding to 1,2,3,6
Output Power 15.4W
Rated Input voltage +44~+57VDC
Operating Temperature -40 ~ 85℃



System Overview

The industrial POE fiber optical switch is your best choice for smart building or fiber to desktop solution. It's with 2 10/100M optical ports and 4 10/100M POE ports. It extends the transmission distance from 20km to 100km, easily to make the connection among master servers, repeaters, hubs, terminals. It adopts industrial design, fanless, low power consumption. The working temperature range is -40℃~85℃. The reverse polarity protection prevents from device burnt. It supports industrial standard DIN-Rail installation or wall-mounted installation, which meets the different industrial network requirements. It is widely used in the field of power, rail transit, mine, and other industrial automation fields.



Product Features

  • Supporting all the network HD cameras and other network signals;
  • Adapting parallel or cross-wire connection;
  • Having APC circuit, with constant optical power output and wide dynamic range;
  • 10/100Mbps optical fiber transmission, with large capacity which could be upgraded easily;
  • Having advanced adaptive technology, no field of the use of optical or electrical adjustment
  • Adapting three-level lighting protection technology on the computer ports and network signals.
  • Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be 250M
  • Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.
  • Support the din rail & desktop installation
  • Support the CBIT to ensure the HD image.
  • Being compatible for IEE802.3,IEEE802.3U,IEEE802.3X and other internet protocol;
  • Supporting the transmission pattern of full-duplex and half-duplex, with the ability of automated negotiation;
  • Having the function of setting ring net in all the devices, and change transmission while the disconnection of the intermediate node;
  • Supporting POE on the network port;
  • Providing the transmission of ultra low delayed data;
  • Protecting from network broadcast radiation;
  • Providing 4 set adaptive Ethernet ports, which can link with internet camera, the switch and so on;

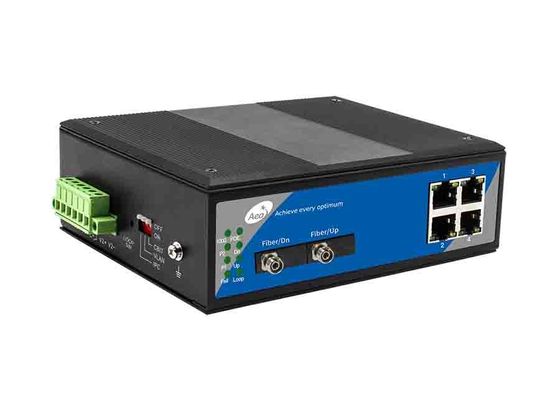

Product picture

10/100Mbps Industrial POE Switch 0

Application Diagram

10/100Mbps Industrial POE Switch 1

Packaging & Shipping



● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

10/100Mbps Industrial POE Switch 2
