Cascading Unmanaged Ethernet Switch

Cascading Unmanaged Ethernet Switch
Cascading Unmanaged Ethernet Switch

Large Image :  Cascading Unmanaged Ethernet Switch

Product Details:

Place of Origin: China
Brand Name: AEO
Certification: CE, FCC, ROHS

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000 pcs/month
Detailed Product Description
10/100/1000M Network Ports: 2 10/100/1000M Optical Ports: 2
Backplane Bandwidth: 12G Cache: 1M
MAC Address Table: 1K MAX Frame Length: 1632bytes
Fiber Ports Propertie: 1310/1550nm Transmission Distance: 20-100KM
Input Voltage: +44~+57VDC Transmission Power: -8~-2 DBm
Received Sensitivity: ≤-35 DBm Network Ports Properties: IEEE802.3、IEEE802.3U、IEEE802.3X Protocol
Network Port Delay: ﹤9.6μS Network Port Bit Error Rate: ﹤1/1000000000
Power Consumption: ≤4W Operating Temperature: -40 ~ 85℃
IPC Extender: 250m VLAN: Support
CBIT: Support
High Light:

Cascading Unmanaged Ethernet Switch


1310/1550nm Unmanaged Ethernet Switch


Cascading unmanaged gigabit switch

Cascading Unmanaged Ethernet Switch Full Gigabit 2 Ethernet and 2 Optical Ports


Technical Parameters

Network Ports 2 10/100/1000Base-T(X) adaptive Ethernet port
Network Ports Properties RJ45
Network Ports protocol IEEE802.3,IEEE802.3U,IEEE802.3X protocol
Ports Features Support half-duplex, full-duplex, auto-negotiation mode
Ports Features Support MDI/MDI-X adaptation
Delay ﹤9.6μS
Bit Error Rate ﹤1/1000000000
Backplane Bandwidth 12G
Cache 1M
MAC address table 1K
Power consumption ≤4W
Transmission Rate 10/100/1000Mbps
Optical Fiber Ports 2 10/100/1000Mbps Single Mode FC Optical Fiber Ports
Optical Fiber Ports Properties Wave Length:1310/1550nm
Transmission Distance 20-100KM
POE protocol IEEE802.3af/at
Pin Definition V+,V+,V-,V- Corresponding to 1,2,3,6
Output Power 15.4W
Rated Input voltage +44~+57VDC
Operating Temperature -40 ~ 85℃


System Overview

The Cascading Unmanaged Ethernet Switch is 2 giagbit optical ports and 2 ethernet ports, it is a high performance and cost-effective un-managed Ethernetswitch that meets the high reliability requirements of network operations. It designed to extend the distance of network by converting Gigabit Ethernet data between twisted pair cabling and multi-mode or single-mode fiber-optic cabling. It features 2 x 1000Base-X optical ports and 2 x 10/100/1000Base-T twisted-pair port. The SFP slot port for any kind of MSA-compliant pluggable 1.25G optical transceivers. The twisted-pair port has 2 x RJ-45 connector with a maximum operating distance of 250m.


Product Features

 Provide 2 x 10/100/1000Base-T
 2 x 1000Base-X optical for Daisy-Chain
 RJ45 support auto MDI/MDI-X function
 Auto-negotiation speed, half/full-duplex
 Store-and-forward
 Max packet size: 10K bytes
 Wide-range power design (12~56VDC)
 Provide EFT protection for Power line
 Support Ethernet ESD protection
 Desk-top Installation
 Low power consumption

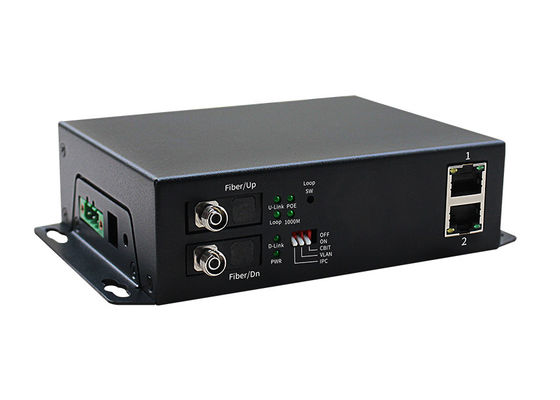

Product picture

Cascading Unmanaged Ethernet Switch 0

Application Diagram

Cascading Unmanaged Ethernet Switch 1

Packaging & Shipping


●All of our package are international standard package

●We will deliver our products as soon as the order confirmed

Cascading Unmanaged Ethernet Switch 2
