| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/month |
| Gigabit Ethernet Network Port: | 4 POE Ports | Gigabit Optical Port: | 1 SC Optical Port |
|---|---|---|---|
| Transmission Distance: | 20-100km | Backplane Processing Capacity: | 14G |
| MAC Address Table: | 2K | Cache: | 2M |
| MAX Frame Length: | 2K | Power Consumption: | ≤4.8W |
| Transmitted Power: | -10~-2 DBm | Receiving Sensitivity: | ≤-24 DBm |
| Power Input: | +44~+57VDC | Relative Humidity: | 5~90% |
| Operating Temperature: | -40~85°C | MAX Frame Length: | 9216bytes |
| Optical Wavelength: | 1310/1550nm | IPC Extender: | 250m |
| VLAN: | Support | CBIT: | Support |
| Protection: | IP30 | POE Standard Protocol: | IEEE 802.3af/at |
| Power Terminal: | 3 Pin Terminals And Φ2.1mm DC Interface | Heat Dissipation: | Built-in Passive Heatsink Cooling, Silent Fanless Design |
| Surge Protection (Ethernet): | Common Mode ±4KV(10/700µS), Differential Mode ±2KV(10/700µS) | Surge Protection (Power): | 2000A (8/20µS) |
| High Light: | 1310/1550nm 4 port POE media converter,100km gigabit ethernet to fiber media converter,9216 bytes gigabit ethernet to fiber media converter |
||
Industrial Gigabit Ethernet to Fiber Media Converter 1 Fiber Port and 4 Ethernet POE Ports
Technical parameters
| IEEE Standard | |
| IEEE 802.3 | 10BaseT Ethernet |
| IEEE 802.3u | 100BaseT(X) and 100BaseFX Fast Ethernet |
| IEEE 802.3ab | 1000BaseT(X) Ethernet |
| IEEE 802.3z | 1000BaseX Ethernet |
| IEEE 802.3x | Flow Control(flow control) |
| Switching Feature | |
| MAC address table | 2K |
| Packet Caching | 2Mbit |
| Processing method | Store and forward |
| Interface | |
| RJ45 port | x4 |
| Fiber | x1, SM/MM optional, SC/ST/FC optional, dual fiber/single fiber optional |
| Fiber transmission distance | MM 550m/2km,SM 20km/40km/60km/80km optional |
| LED | PWR, TP/Fx Link/Act, Fail |
| Power | |
| 24V input | 6-Pin, dual power input, 12~48VDC wide range |
| 220V input | 6-Pin, dual power input, 85~264VAC/77~300VDC wide range |
| Power consumption | Max 4.8W |
| Power protection | Reverse connection protection and overload protection |
| Environment | |
| Standard operation temperature | -10 ~ 60℃ |
| Wide range operation temperature | -40 ~ 75℃ |
| Storage temperature | -40 ~ 85°C |
| Relative humidity | 5 ~ 95% (non-condensation) |
Product overview
The industrial 10/100/1000M gigabit media converter support the conversion from 10/00/1000M copper to 1000M optical. Redundant power supply design, wide voltage range input, and provide overload and reverse protection. Wide temperature model can be selected, strong anti-electromagnetic interference ability, fully meet the harsh industrial application environment.
Product features
• Support 4*10/100/1000M POE Ethernet RJ45 port and 1*1000M optical port (SC/FC/LC optional)
• Electrical interface (RJ45 interface) supports 10/100/1000M self-adaptation, full/half-duplex mode, MDI/MDI-X auto-detection.
• Support IEEE802.3, IEEE802.3u, IEEE802.3x,IEEE802.3z Flow Control, IEEE802.3x Flow Control, Back Pressure Flow Control
• Support for LFP link disconnection alarms
• Ultra-low latency and resilient caching technology: "store-and-forward" mode, seamlessly connects devices at different rates, adaptive mode of operation
• Input voltage: DC 44~57V , power supply support overload protection, anti-reverse connection protection.
• Lightning protection level: power inlet and RJ45 electrical port are all four levels of lightning protection
• Comply with Industrial Class IV electromagnetic compatibility requirements
• Protection class: IP40, anti-surge static, DIN clamp rail, metal aluminum profile, fanless design
• Working temperature: -40 ℃ ~ + 85 ℃ (industrial-grade materials)
• Supports DIN-rail / wall mounting

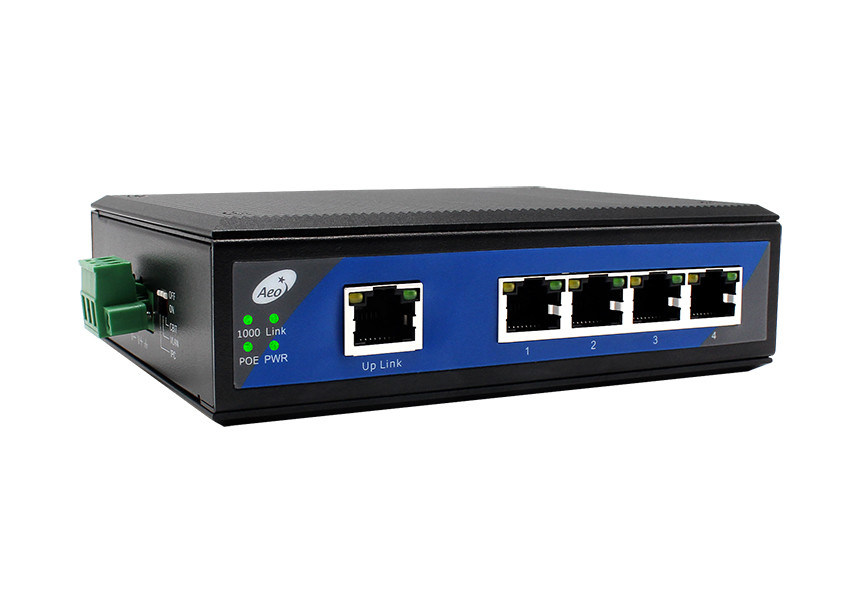

Product Pictures
Application Diagram
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
