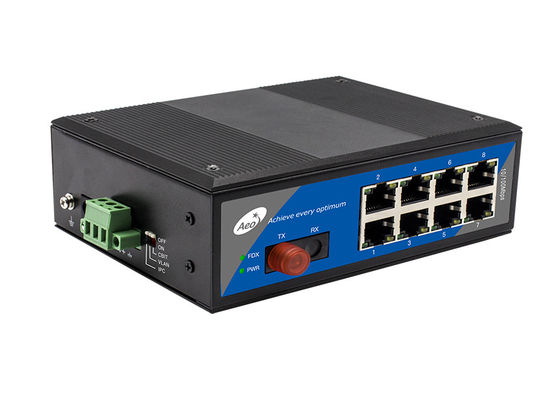

Industrial Gigabit Ethernet Media Converter

Industrial Gigabit Ethernet Media Converter
Industrial Gigabit Ethernet Media Converter

Large Image :  Industrial Gigabit Ethernet Media Converter

Product Details:

Place of Origin: China
Brand Name: AEO
Certification: CE, FCC

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000 pcs/month
Detailed Product Description
10/100M Ethernet Network Port: 8 Ports 10/100M Optical Port: 1 SC Optical Port
Transmission Distance: 20-100km Backplane Processing Capacity: 1.8G
MAC Address Table: 2K Cache: 1M
MAX Frame Length: 2048bytes Power Consumption: ≤4.8W
Transmitted Power: -10~-2 DBm Receiving Sensitivity: ≤-24 DBm
Power Input: +44~+57VDC Relative Humidity: 5~90%
Operating Temperature: -40~85°C MAX Frame Length: 9216bytes
Optical Wavelength: 1310/1550nm IPC Extender: 250m
VLAN: Support CBIT: Support
Protection: IP30 POE Standard Protocol: IEEE 802.3af/at
Power Terminal: 3 Pin Terminals And Φ2.1mm DC Interface Heat Dissipation: Built-in Passive Heatsink Cooling, Silent Fanless Design
Surge Protection (Ethernet): Common Mode ±4KV(10/700µS), Differential Mode ±2KV(10/700µS) Surge Protection (Power): 2000A (8/20µS)
High Light:

100km gigabit ethernet media converter

,

FCC gigabit ethernet media converter

,

IP30 sc to ethernet converter

Industrial Gigabit Ethernet Media Converter 10/100M 1 Fiber and 8 Ethernet POE Ports



Technical parameters

IEEE Standard
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseT(X) and 100BaseFX Fast Ethernet
IEEE 802.3ab 1000BaseT(X) Ethernet
IEEE 802.3z 1000BaseX Ethernet
IEEE 802.3x Flow Control(flow control)
Switching Feature
MAC address table 2K
Packet Caching 1Mbit
Processing method Store and forward
Interface
RJ45 port x8
Fiber x1, SM/MM optional, SC/ST/FC optional, dual fiber/single fiber optional
Fiber transmission distance MM 550m/2km,SM 20km/40km/60km/80km optional
LED PWR, TP/Fx Link/Act, Fail
Power
24V input 6-Pin, dual power input, 12~48VDC wide range
220V input 6-Pin, dual power input, 85~264VAC/77~300VDC wide range
Power consumption Max 4.8W
Power protection Reverse connection protection and overload protection
Environment
Standard operation temperature -10 ~ 60℃
Wide range operation temperature -40 ~ 75℃
Storage temperature -40 ~ 85°C
Relative humidity 5 ~ 95% (non-condensation)



Product overview

The industrial 10/100M gigabit ethernet media converter support the conversion from 10/00M copper to 100M optical. Redundant power supply design, wide voltage range input, and provide overload and reverse protection. Wide temperature model can be selected, strong anti-electromagnetic interference ability, fully meet the harsh industrial application environment.



Product features

• Support 8*10/100M Ethernet RJ45 port and 1*100M optical port (SC/FC/LC optional)
• Electrical interface (RJ45 interface) supports 10/100/100M self-adaptation, full/half-duplex mode, MDI/MDI-X auto-detection.
• Support IEEE802.3, IEEE802.3u, IEEE802.3x,IEEE802.3z Flow Control, IEEE802.3x Flow Control, Back Pressure Flow Control
• Support for LFP link disconnection alarms
• Ultra-low latency and resilient caching technology: "store-and-forward" mode, seamlessly connects devices at different rates, adaptive mode of operation
• Input voltage: DC 44~57V , power supply support overload protection, anti-reverse connection protection.
• Lightning protection level: power inlet and RJ45 electrical port are all four levels of lightning protection
• Comply with Industrial Class IV electromagnetic compatibility requirements
• Protection class: IP40, anti-surge static, DIN clamp rail, metal aluminum profile, fanless design
• Working temperature: -40 ℃ ~ + 85 ℃ (industrial-grade materials)
• Supports DIN-rail / wall mounting



Product Pictures

Industrial Gigabit Ethernet Media Converter 0

Application Diagram



Industrial Gigabit Ethernet Media Converter 1



Packaging & Shipping


● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



Industrial Gigabit Ethernet Media Converter 2
