1 Uplink 4 Port POE Ethernet Switch

China Shenzhen Qiutian Technology Co., Ltd certification
China Shenzhen Qiutian Technology Co., Ltd certification
I'm Online Chat Now

1 Uplink 4 Port POE Ethernet Switch

1 Uplink 4 Port POE Ethernet Switch
1 Uplink 4 Port POE Ethernet Switch

Large Image :  1 Uplink 4 Port POE Ethernet Switch

Product Details:

Place of Origin: China
Brand Name: AEO
Certification: CE, FCC

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T, L/C
Supply Ability: 10000 pcs/month
Detailed Product Description
Backplane Capacity: 1G Cache: 448Kbit
MAC Address Table: 1K Maximum Frame Size: 1536bytes
IPC/VLAN Dip Switch: Yes Input Voltage: +44~+57VDC
Working Temperature: -10~60°C Relative Humidity: 5% ~ 90%
Power Consumption: ≤3W Level Of Protection: IP30
Standard Protocol: IEEE802.3af/at Pin Definition: V+ V+ V- V-Corresponding To 4,5,7,8
Output Power: IEEE802.3af:15.5W IEEE802.3at:25.5W IPC Extender: 250m
Optical Port: 1 10/100M Uplink Ports Ethernet Ports: 4 10/100M POE Ports
High Light:

1 Uplink 4 port POE Ethernet Switch

,

IEEE802.3U 4 port POE Ethernet Switch

,

10/100M POE switch uplink port

4 Port POE Switch IPC Extender 250m and VLAN 10/100M 1 Uplink and 4 POE Ports



Technical Parameter



Backplane capacity 1G
Cache 448Kbit
MAC address table 1K
Maximum frame size 1536bytes
Ethernet interface 4 Port 10/100Base-T(X) POE Ethernet port RJ45
IPC/VLAN dip switch Yes
Input Voltage +44~+57VDC
Material Iron
Working temperature -10~60°C
Relative humidity 5% ~ 90%
Power consumption Full loaded≤4W(except POE)
POE Standard Protocol IEEE802.3af/at
Pin definition V+ V+ V- V-Corresponding to 4,5,7,8
Input Voltage +44~+57VDC
Output Power IEEE802.3af:15.5W IEEE802.3at:25.5W
Level of protection IP30



Product Introduction

4 Port POE Switch IPC Extender 250m and VLAN 10/100M 1 Uplink and 4 POE Ports is to provide two uplink 100 Mbps Ethernet RJ45 interface and eight switching 100Mbps POE Ethernet RJ45 interface to meet the user video data transmission needs. It extends the limit of the network transmission distance from the 100m of the twisted pair to 250m through the IPC extension function to meet the needs of the remote and high-speed Ethernet users. It can easily realize the main board server, repeater, network camera, terminal and terminal Interconnection between machines. Product performance is stable and reliable, designed to meet the Ethernet standard, especially for telecommunications, cable television, railways, military, financial securities, customs, civil aviation, shipping, electricity, water conservancy and oil fields and other broadband data and require high reliability data Transmission or the formation of IP data transmission network area


Product Features
● Automatically compatible with IEEE802.3 IEEE802.3U and IEEE802.3X and other network protocols

● Supports for full duplex and half duplex transfer modes, and with auto-negotiation skills.

● Supports for Adaptive MDI/MDI-X, store-and-forward mechanism.
● Supports for up to 1536byte long data packet transmission.
● Built-in efficient exchange core, suppression of broadcast storm, flow control, CRC error check
● Supplies ultra low latency data transmission.

● Ethernet ports support POE function, POE standard protocol IEEE802.3af / at, port maximum output

power 25.5W

● Supports DIP switch set monitoring mode, extend the IPC access distance; up to 250 meters

● Supports DIP switch set VLAN function: blocking the next port between the communication, improve

data forwarding efficiency, security system security.

● Suppress network storm function, automatically identify and filter broadcast packets

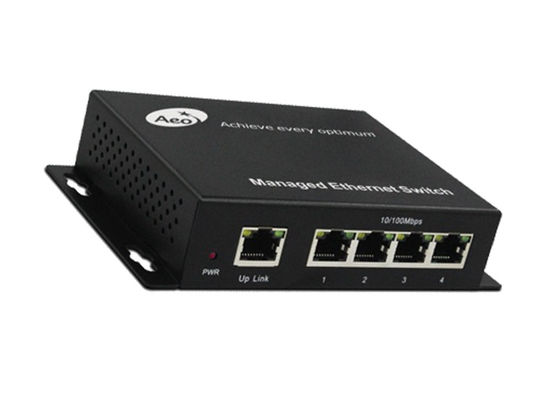

Product picture

1 Uplink 4 Port POE Ethernet Switch 0

Application Diagram


1 Uplink 4 Port POE Ethernet Switch 1

Packaging & Shipping


● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



1 Uplink 4 Port POE Ethernet Switch 2
