10/100M Fiber Optic To UTP Converter

China Shenzhen Qiutian Technology Co., Ltd certification
China Shenzhen Qiutian Technology Co., Ltd certification
I'm Online Chat Now

10/100M Fiber Optic To UTP Converter

10/100M Fiber Optic To UTP Converter
10/100M Fiber Optic To UTP Converter

Large Image :  10/100M Fiber Optic To UTP Converter

Product Details:

Place of Origin: China
Brand Name: AEO
Certification: CE, FCC

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000 pcs/month
Detailed Product Description
Ethernet Port: 4 10/100Mbps Ethernet Ports Optical Port: 1 10/100Mbps Optical Port
Transmission Distance: 20-100km Backplane Processing Capacity: 1Gbps
MAC Address Table: 1K Cache: 448kbit
MAX Frame Length: 1536bytes IPC/VLAN DIP Switch: Yes
Power Consumption: ≤3W POE Function: Yes
Transmitted Power: -8~-2 DBm Receiving Sensitivity: ≤-35 DBm
Relative Humidity: 5~90% Operating Temperature: -10~60°C
IPC Extender: 250m CBIT: Support
VLAN: Support Forwarding Rate: 10.416Mpps
Working Voltage: 5V Protection Grade: IP30
High Light:

10/100M fiber optic to utp converter

,

1Gbps fiber optic to utp converter

,

250m fiber to utp media converter

UTP Fiber Switch 10/100M Single Fiber Single Mode One Fiber and Four Ethernet Ports



Technical parameters

Network port 4 10/100M Ethernet ports
Optical port 1 10/100M optical port
Transmission distance Standard is 20km
Backplane capacity 1G
MAC address table 1K
Cache 448kbit
MAX frame length

1536bytes

Power Consumption ≤4W
Fiber wavelength 1310nm/1550nm
Transmitted power -8~-2 dBm
Receiving sensitivity ≤-35 dBm
Relative humidity 5~90%
operating temperature -10~60°C
Shell material iron



Product overview

The UTP Fiber Switch is 1 fiber to 4 UTP switch uses 1X9 fiber modules which supports multimode or single mode dual fiber, bi-directional single fiber. The transmission distance is 20-100km. Standard in-stock fiber interface is SC. LC, ST and FC available upon requests. It is with the IPC extender 250m and VLAN & CBIT functions. It automatically adapts to gigabit transmission rate and supplies multiport Ethernet ports to meet user requirements, the transmission distance can be more than 100km to meet the requirements of long distance and high speed Ethernet, can easily realize the mainboard server, repeaters, network camera, the interconnection between the terminals and the terminal. Product performance is stable and reliable, the design meets Ethernet standard, and with lightning protection measures. Especially suitable for telecom, cable TV, railways, military, financial securities, customs, civil aviation, sea transport, electric power, water conservancy, oil field and other broadband data network and require high reliability of data transmission or set up IP data transmission field of private network.



Product features

◆ Automatically compatible with IEEE802.3 IEEE802.3U and IEEE802.3 X network protocols.

◆ Support full duplex and half-duplex transmission mode, and with automatic negotiation ability.

◆ Support the MDI/MDI - X adaptive, inside take a store-and-forward mechanism.

◆ Support the long packet transmission.

◆ Built-in efficient exchange core, the broadcast storm, flow control, CRC error checking.

◆ To provide low delay of data transmission.

◆ Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be about 250M.

◆ Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.

Support CBIT intelligent video optimization technology to ensure that high-definition video monitoring solutions always present high-quality images;

CBIT applicable conditions: applicable to the entire link has this function of the environment.



Product Picture

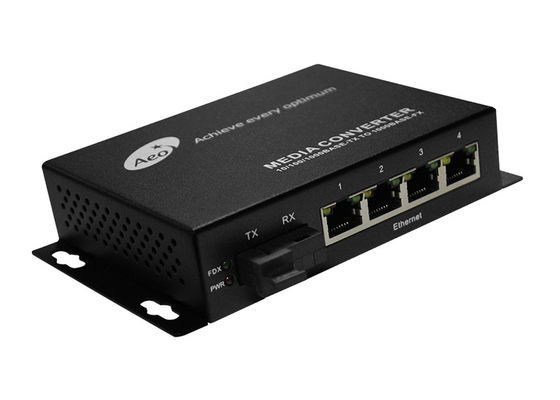

10/100M Fiber Optic To UTP Converter 0

Packaging & Shipping



● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



10/100M Fiber Optic To UTP Converter 1
