28Gbps 8 Port Fiber Media Converter

28Gbps 8 Port Fiber Media Converter
28Gbps 8 Port Fiber Media Converter

Large Image :  28Gbps 8 Port Fiber Media Converter

Product Details:

Place of Origin: China
Brand Name: AEO
Certification: CE, FCC

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000 pcs/month
Detailed Product Description
Ethernet Network Port: 8 Gigabit Optical Port: 1 Gigabit
Transmission Distance: 20-100km Backplane Processing Capacity: 28Gbps
MAC Address Table: 2K Cache: 2Mbit
MAX Frame Length: 9216bytes IPC/VLAN DIP Switch: Yes
Power Consumption: ≤4W POE Function: Yes
Transmitted Power: -10~-2 DBm Receiving Sensitivity: ≤-24 DBm
Relative Humidity: 5~90% Operating Temperature: -10~60°C
IPC Extender: 250m CBIT: Support
VLAN: Support Forwarding Rate: 10.416Mpps
Working Voltage: 5V Protection Grade: IP30
Connector Type: SC/APC Communication Mode: Full-Duplex&Half-Duplex
High Light:

28Gbps 8 port fiber media converter

,

9216 bytes 8 port fiber media converter

,

100km fiber utp converter

8 Port UTP Fiber Switch Gigabit One Fiber and Eight Ethernet Ports​



Technical parameters

Standard IEEE802.3 10Base-T Ethernet,IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control, IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
Protocol CSMA/CD
Fiber 1 x Single fiber or Dual fiber
Distance Single fiber SM: 20-100km, Dual fiber MM: 1km, Dual fiber SM:20-100km
Optical interface SC (ST, FC)
Ethernet Interface 8 x MDI/MDIX RJ45 ports
Power Supply DC5V 1A (external power)
Operating Temperature 0℃~+50℃
Storage Temperature -30℃~+60℃
Humidity 5%~90% non-condensing



Product overview

The 8 port UTP fiber switch uses 1X9 modules which supports multimode or single mode dual fiber, bi-directional single fiber, it is one gigabit optical port and 8 gigabit ethernet ports. It is with management function, it with the IPC extender 250m and VLAN & CBIT functions. It automatically adapts to gigabit transmission rate and supplies multiport Ethernet ports to meet user requirements, the transmission distance can be more than 100km to meet the requirements of long distance and high speed Ethernet, can easily realize the mainboard server, repeaters, network camera, the interconnection between the terminals and the terminal. Product performance is stable and reliable, the design meets Ethernet standard, and with lightning protection measures. Especially suitable for telecom, cable TV, railways, military, financial securities, customs, civil aviation, sea transport, electric power, water conservancy, oil field and other broadband data network and require high reliability of data transmission or set up IP data transmission field of private network.



Product features

◆ Automatically compatible with IEEE802.3 IEEE802.3U and IEEE802.3 X network protocols.

◆ Support full duplex and half-duplex transmission mode, and with automatic negotiation ability.

◆ Support the MDI/MDI - X adaptive, inside take a store-and-forward mechanism.

◆ Support the long packet transmission.

◆ Built-in efficient exchange core, the broadcast storm, flow control, CRC error checking.

◆ To provide low delay of data transmission.

◆ Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be about 250M.

◆ Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.

Support CBIT intelligent video optimization technology to ensure that high-definition video monitoring solutions always present high-quality images;

CBIT applicable conditions: applicable to the entire link has this function of the environment.

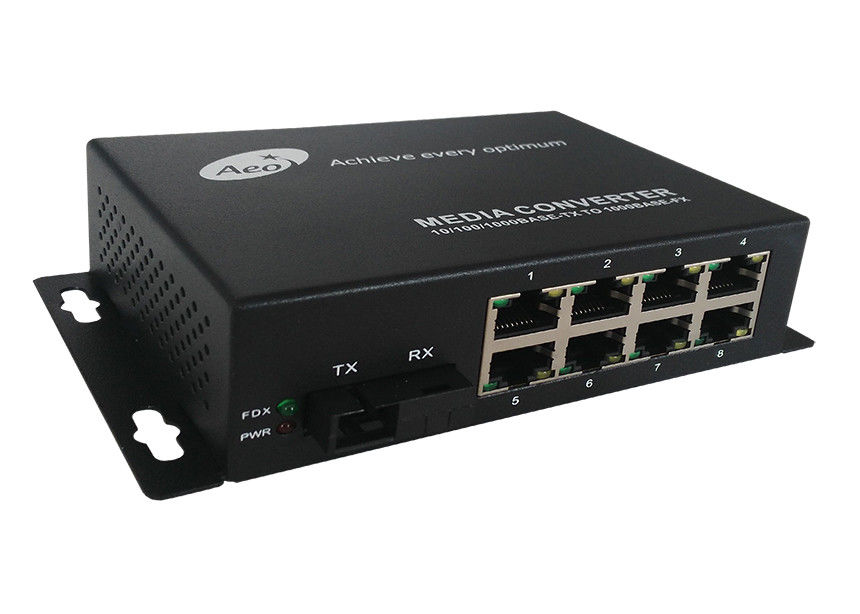

Product Picture

28Gbps 8 Port Fiber Media Converter 0

Packaging & Shipping



● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



28Gbps 8 Port Fiber Media Converter 1
