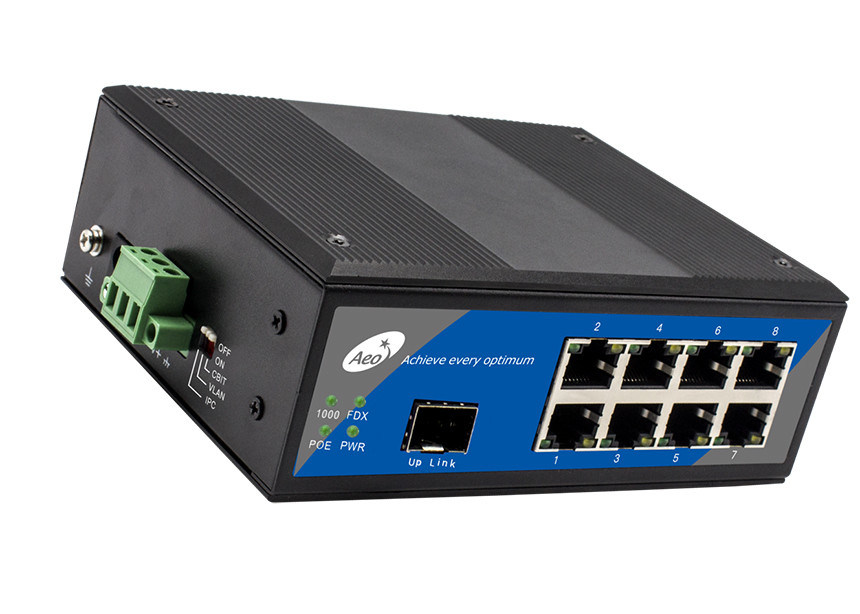

8 Port Industrial Gigabit Switch

8 Port Industrial Gigabit Switch
8 Port Industrial Gigabit Switch

Large Image :  8 Port Industrial Gigabit Switch

Product Details:

Place of Origin: China
Brand Name: AEO
Certification: CE, FCC

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000 pcs/month
Detailed Product Description
Gigabit Ethernet Network Port: 8 POE Ports Gigabit Optical Port: 1 SFP Slot
Transmission Distance: 20-100km Backplane Processing Capacity: 28G
MAC Address Table: 2K Cache: 2M
MAX Frame Length: 9216bytes Power Consumption: ≤4.8W
Transmitted Power: -10~-2 DBm Receiving Sensitivity: ≤-24 DBm
Power Input: +44~+57VDC Relative Humidity: 5~90%
Operating Temperature: -40~85°C Optical Wavelength: 1310/1550nm
IPC Extender: 250m VLAN: Support
CBIT: Support Protection: IP40
POE Standard Protocol: IEEE 802.3af/at Power Terminal: 3 Pin Terminals And Φ2.1mm DC Interface
Heat Dissipation: Built-in Passive Heatsink Cooling, Silent Fanless Design Surge Protection (Ethernet): Common Mode ±4KV(10/700µS), Differential Mode ±2KV(10/700µS)
Surge Protection (Power): 2000A (8/20µS)
High Light:

8 Port industrial gigabit switch


1310/1550nm industrial gigabit switch


100km switch poe 8 port 2 sfp

Industrial 8 Port SFP Switch Full Gigabit 1 SFP Slot and 8 POE Ports


Technical parameters

Backboard capacity 28G
Cache 2M
MAC address 2K
Max frame 9216bytes
Ethernet port 8 POE 10/100/1000Mbps rj45 ports
Optic interface SFP
Ethernet port (10/100/1000Mbps) 8
Optic interface (10/100/1000Mbps) 1
Optical type Single fiber single mode, 9/125um (multi-mode, 50um/125unu)
Optical interface FC, SC, LC for option
Transmission distance Standard 20Km (single fiber single mode), it is customized for max. 100Km
Input voltage DC44V - 57V
Working temperature -40℃ ~ 85℃
Relative humidity 5% ~ 90% (Non-Condensing)
Shell Material Iron
Heat dissipation Built-in passive heatsink cooling, Silent fanless design
Surge protection (Ethernet) Common mode ±4KV(10/700µS), Differential mode ±2KV(10/700µS)
Surge protection (Power) 2000A (8/20µS)
POE Standard Protocol IEEE 802.3af/at
  Pin Definition V+,V+,V-,V- Corresponding to 1,2,3,6
  The Output Power IEEE802.3af:15.5W IEEE802.3at:25.5W
Power consumption Full load≤5W
Mean Time Between Failure (MTBF) 100,000 hours


Product overview

Industrial 8 Port SFP Switch adopts industrial-grade design solution, through Electro-optical technique conversion, it can transfer data signal by different transmission media of twisted pair and fiber in new high-speed Ethernet network, multi-channel of HD 1080P network signals can be transferred without delay, it can meet the user’s requirements of long range transmission and high-speed transmission, the max high-speed transmission distance of HD network signals can reach 100 Km without repeater, it also can be connected with other network devices. Din rail style and desktop style for installation are provided, it supports wide range of power input, power with positive and negative protection, ultra wide range of operating temperature (-40~85℃), IP30 shell protection. The equipment can be used in combination with HD network integrated multi-port fiber switch to compose a large HD networks transmission system for easy control, it is an ideal device over fiber transmission for CCTV security, Telecommunications, Broadcasting, Network applications, suitable for roads, factories and mines, rail, traffic and other network scenario.


Product features

◆ Built-in United States Marvell industrial-grade network switching chips, performance is stable and reliable

◆ Automatically compatible with IEEE802.3, IEEE802.3U, IEEE802.3X network protocols

◆ Supports full duplex and half duplex transfer modes, and with auto-negotiation skills

◆ Supports Max 9216byte long data packet transmission

◆ Adaptive parallel line / crossover cable connection

◆ With APC circuit, constant output optical power, large dynamic range.

◆ Advanced adaptive technologies, without the need for on-site electrical or optical adjustment when using

◆ Power port and network signals comply with Three-level lightning protection technology

◆ Industry-standard design, IP40 shell protection

◆ Desktop style and din rail style installation for option

◆ Supports a variety of power supply wiring, power overload protection, anti-reverse polarity protection

◆ POE solution (optional): compatible with standard protocol IEEE802.3af /at.

◆ Support dial the code switch to set up monitoring mode function, extended the IPC access distance.

◆ Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.

◆ Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be about 250M.


Product Pictures

8 Port Industrial Gigabit Switch 0

Application Diagram


8 Port Industrial Gigabit Switch 1


Packaging & Shipping

● All of our package are international standard package

● We will deliver our products as soon as the order confirmed


8 Port Industrial Gigabit Switch 2
