Gigabit 24 Port POE Switch with 24 POE Ports and 4 Uplink Ports and 4 SFP Slots

China Shenzhen Qiutian Technology Co., Ltd certification
China Shenzhen Qiutian Technology Co., Ltd certification
I'm Online Chat Now

Gigabit 24 Port POE Switch with 24 POE Ports and 4 Uplink Ports and 4 SFP Slots

Gigabit 24 Port POE Switch with 24 POE Ports and 4 Uplink Ports and 4 SFP Slots
Gigabit 24 Port POE Switch with 24 POE Ports and 4 Uplink Ports and 4 SFP Slots

Large Image :  Gigabit 24 Port POE Switch with 24 POE Ports and 4 Uplink Ports and 4 SFP Slots

Product Details:

Place of Origin: China
Brand Name: AEO
Certification: CE, FCC

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T, L/C
Supply Ability: 10000 pcs/month
Detailed Product Description
Backplane Capacity: 64G Package Forward Rate: 47.62Mpps
MAC Address Table: 16K 10/100/1000M POE Ports: 24
10/100/1000M SFP Port: 4 10/100/1000M Ethernet Ports: 4
Relative Humidity: 5% ~ 90% Protection Grade: IP30
Power Consumption: 20W Working Temperature: -10~60°C
Rated Voltage Range: AC 100~240V ;50/60Hz POE Protocol: IEEE802.3af/at
POE Pin: V+ V+ V- V- To 1,2,3,6 Output Power: 360W
Working Humidity: 5% ~ 90%(non-condensation) MTBF: 100000 Hours
High Light:

20W 24 port gigabit POE switch

,

IP20 24 port gigabit POE switch

,

IEEE 802.3x 1gb POE switch

Gigabit 24 Port POE Switch with 24 POE Ports and 4 Uplink Ports and 4 SFP Slots



Technical Parameter

10/100/1000M Ethernet port 24
10/100/1000M SFP 4
10/100/1000M Ethernet port 4
Exchange capacity 64G
forwarding rate 47.62Mpps
MAC address table 16k
Switch mode Store and Forward
Port

IEEE 802.3x flow control(full duplex)

Supports PPS - based broadcast storm suppression

Max power consumption 20W
Rated voltage range AC 100~240V ;50/60Hz
Maximum voltage range AC 90~264V;47/63Hz
POE protocol IEEE802.3af/at
POE pin V+ V+ V- V- to 1,2,3,6
Output power 360W
Working temperature -20℃ to 70℃
Working humidity 5% to 95% RH (No condensation)
MTBF 50000 hours
Anti-static EN61000-4-2 ± 8kV contact discharge; ±15 kV air discharge
EN61000-4-5 Surge voltage ± 2kV /CM, ± 2kV /DM power line, ± 2kV data line
Enclosure material Metal case
Protection grade IP20



Product Introduction

The 24 port gigabit fiber POE switch is a full gigabit unmanaged PoE fiber switch with 24 gigabit POE ports and 4 gigabit ethernet ports and 4 gigabit SFP slots. It is easy to manage and maintain, and can meet the networking and access requirements of enterprises, intelligent communities, hotels, office networks and campus networks.


Product Features

● Comply with IEEE 802.3, IEEE 802.3U and IEEE 802.3AB standards;

● 24 10/100/1000Mbps POE adaptive RJ45, support automatic roll-over (auto-MDI /MDIX);

● 4 gigabit combo SFP ports;

● Support 16K MAC address;

● All ports support IEEE 802.3x half-duplex flow control and full-duplex backpressure mode;

● Non-blocking switching architecture, full speed forwarding and maximum throughput filtering packets;

● Provide ultra-low delay data transmission;

● Support MAC address learning, automatically adjust the transmission mode and transmission rate;

● All series supports "gigabit Ethernet port and gigabit SFP fiber port " combination, which enables users to flexibly build networking to meet the needs of various scenarios.

● Support non-blocking wire-speed forwarding.

● Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

● Support one key VLAN, lower port isolation function;

● LED indicator power supply,link and activity, provide simple working status prompts and troubleshooting;

● Built-in application power supply 100-240V AC;

● 19-inch metal shell design, protection grade IP30.

● Low power consumption, galvanized steel casing, The fan active cooling.

● Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

● Plug and play, no configuration, simple and convenient.

● The user-friendly panel, it can show the device status through the LED indicator of PWR, Link ,PoE.

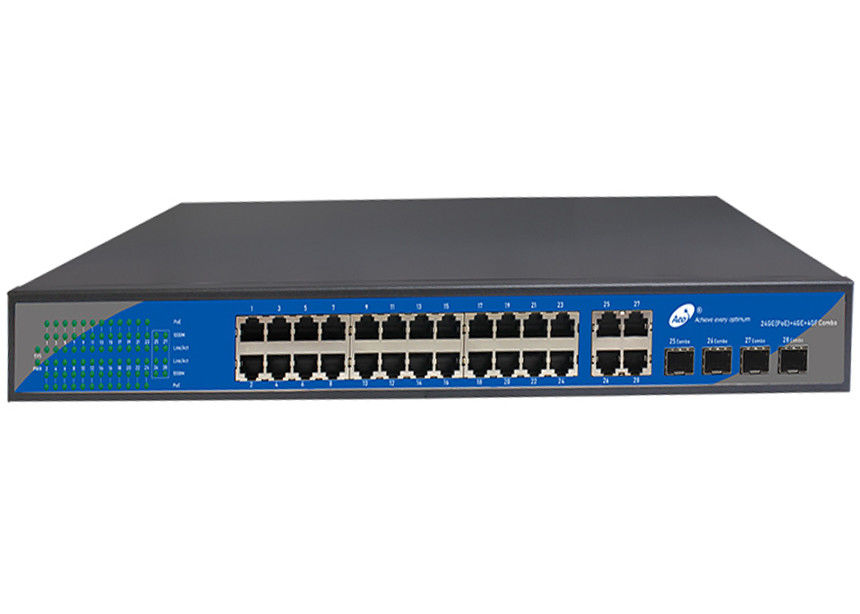

Product picture

Gigabit 24 Port POE Switch with 24 POE Ports and 4 Uplink Ports and 4 SFP Slots 0
Packaging & Shipping


● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



Gigabit 24 Port POE Switch with 24 POE Ports and 4 Uplink Ports and 4 SFP Slots 1
