10/100Mbps Ethernet Fiber Switch

China Shenzhen Qiutian Technology Co., Ltd certification
China Shenzhen Qiutian Technology Co., Ltd certification
I'm Online Chat Now

10/100Mbps Ethernet Fiber Switch

10/100Mbps Ethernet Fiber Switch
10/100Mbps Ethernet Fiber Switch

Large Image :  10/100Mbps Ethernet Fiber Switch

Product Details:

Place of Origin: China
Brand Name: AEO
Certification: CE, FCC, ROHS

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000 pcs/month
Detailed Product Description
10/100M POE Ports: 4 10/100M Optical Ports: 2
Backplane Bandwidth: 1.6G Cache: 1M
MAC Address Table: 2K MAX Frame Length: 1536bytes
Fiber Ports Propertie: 1310/1550nm Transmission Distance: 20-100KM
Input Voltage: +44~+57VDC Operating Temperature: -40 ~ 85℃
Transmission Power: -8~-2 DBm Received Sensitivity: ≤-35 DBm
Network Ports Properties: IEEE802.3、IEEE802.3U、IEEE802.3X Protocol Network Port Delay: ﹤9.6μS
Network Port Bit Error Rate: ﹤1/1000000000 Power Consumption: ≤5W
IPC: 250M VLAN: Support
CBIT: Support
High Light:

10/100Mbps Ethernet Fiber Switch

,

250m Ethernet Fiber Switch

,

100KM industrial fiber switch

Industrial Fiber Switch 10/100Mbps 4 POE Ethernet and 2 Optical Ports



Technical Parameters

CONNECTORS
  • Fiber: 2 x Optic Ports
  • Ethernet: 4 x RJ-45 POE
  • Power & Relay: 6-pin removable screw terminal block
ENCLOSURE IP30, Metal Shell with Solid Mounting Kits
FAULT OUTPUT 1 Relay Output
INDICATORS LED
  • System: P1, P2, P-Fail
  • Gigabit Copper: Link/Activity, Spped (1000 Mbps)
  • Gigabit SFP: Link/Activity
INTERFACES LAN: 100 Base-TX, 10/1000 Base-T, Optional 100 Base-FX
MOUNTING DIN Rail, Wall
MPN EKI-7629C-AE
MTBF 100,000 hrs
POWER CONSUMPTION Max. 5 W
SECURITYPROTECTION
  • Overload: 1.6A @ 12 VDC (Resetable Fuse)
  • Reverse Polarity: Present
STANDARDS IEEE 802.3, 802.3x, 802.3u, 802.3ab, 802.3z
STORAGE SPECIFICATIONS
  • Temperature: -40°C to +85°C
  • Humidity: 0% to 95% (non-condensing)
TEMPERATURE RANGE
  • Operating: -40°C to +85°C
  • Humidity: 5% to 95% (non-condensing)
TRANSMISSION DISTANCE
  • Ethernet: Up to 250 m (4-wire CAT5e, CAT6 Cable)
  • Gigabit Fiber: Up to 100 km (Depending on optical)
TRANSMISSION SPEED
  • Ethernet: Up to 10/100 Mbps Auto-Negotiation
  • optic: Up to 100 Mbps



System Overview

The Unmanaged Industrial Switch supports supports 4 10/100 Fast POE Ethernet Ports with 2 10/100M Fiber Optic Ports. It comes in an compact metal housing which rates IP30 helping to protect the switch from dusty industrial environments. The standard Ethernet ports can be used for up-linking wide-band paths in distances 250M. Additionally replaceable optic modules can be used for the application of wide band uploading and long distance transmissions.



Product Features

  • Supporting all the network HD cameras and other network signals;
  • Being compatible for IEE802.3,IEEE802.3U,IEEE802.3X and other internet protocol;
  • Supporting the transmission pattern of full-duplex and half-duplex, with the ability of automated negotiation;
  • Having the function of setting ring net in all the devices, and change transmission while the disconnection of the intermediate node;
  • Supporting POE on the network port;
  • Providing the transmission of ultra low delayed data;
  • Protecting from network broadcast radiation;
  • Providing 4 set adaptive Ethernet ports, which can link with internet camera, the switch and so on;
  • Adapting parallel or cross-wire connection;
  • Having APC circuit, with constant optical power output and wide dynamic range;
  • 10/100Mbps optical fiber transmission, with large capacity which could be upgraded easily;
  • Having advanced adaptive technology, no field of the use of optical or electrical adjustment
  • Adapting three-level lighting protection technology on the computer ports and network signals.
  • Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be 250M
  • Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.
  • Auto Negotiation and Auto MDI/MDI-X
  • DIN-Rail and Wall Mountable
  • IP30 Rated Compact Metal Housing
  • Redunant 12 ~ 48VDC Power Input and P-Fail Relay
  • Support the din rail & desktop installation
  • Support the CBIT to ensure the HD image.

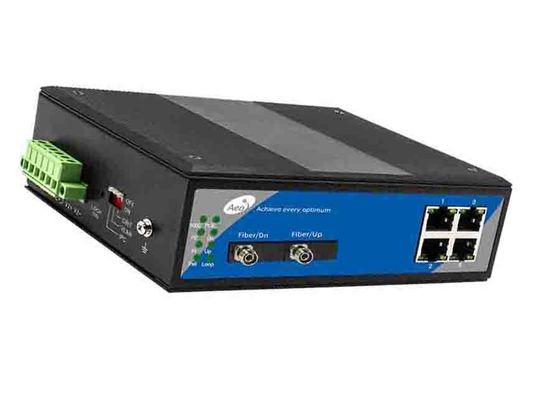

Product picture

10/100Mbps Ethernet Fiber Switch 0

Application Diagram



10/100Mbps Ethernet Fiber Switch 1

Packaging & Shipping



● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

10/100Mbps Ethernet Fiber Switch 2
