100M Power Over Ethernet Network Switch

China Shenzhen Qiutian Technology Co., Ltd certification
China Shenzhen Qiutian Technology Co., Ltd certification
I'm Online Chat Now

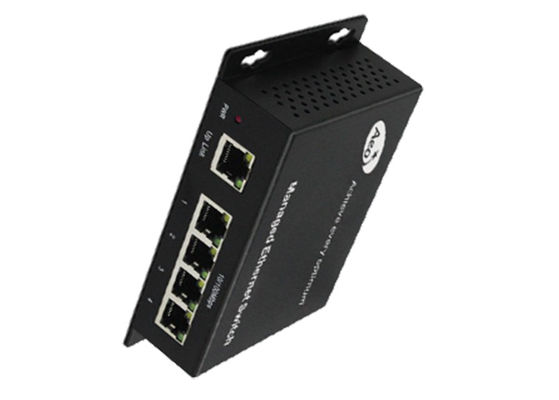

100M Power Over Ethernet Network Switch

100M Power Over Ethernet Network Switch
100M Power Over Ethernet Network Switch

Large Image :  100M Power Over Ethernet Network Switch

Product Details:

Place of Origin: China
Brand Name: AEO
Certification: CE, FCC

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T, L/C
Supply Ability: 10000 pcs/month
Detailed Product Description
Backplane Capacity: 1G Cache: 448Kbit
MAC Address Table: 1K Maximum Frame Size: 1536bytes
IPC/VLAN Dip Switch: Yes Input Voltage: DC5V
Working Temperature: -10~60°C Relative Humidity: 5% ~ 90%
Power Consumption: ≤3W Level Of Protection: IP20
IPC Extender: 250m 100M Ethernet Port: 4
100M Uplink Port: 1 VLAN: Support
CBIT: Support
High Light:

100M power over ethernet network switch

,

1536 bytes power over ethernet network switch

,

IP20 POE network switch 4 port

4 Port 100M Ethernet Network Switch with IPC Extender 250m and VLAN and CBIT



Technical Parameter

Network port 1 uplink 4 100Base-T(X) adaptive RJ45 Ethernet ports
Backplane processing capacity 1G
MAC address table 1K
Cache 448Kbit
Max frame length

1536bytes

IPC/VLAN DIP switch support
IPC Extender 250m
VLAN yes
CBIT yes
Power Consumption ≤3W
Power input DC5V
relative humidity 5~90%
Working temperature -20~70°C
Heat-dissipating method The built-in passive cooling heat sink, no fan mute design
MTTF 100000 hours
Shell material iron



Product Introduction

This 4-port switch is a 100M Ethernet switch, providing 4 100M Ethernet ports to upload data via the convergence switch. The switch is reliable, easy to install and maintain, and equipped with rapid switch function. With multiple access ports, the switch is applicable for access or aggregation and upload of small-scale LAN devices.


Product Features

● Supports for full duplex and half duplex transfer modes, and with auto-negotiation skills.

● Supports for Adaptive MDI/MDI-X, store-and-forward mechanism.
● Supports for up to 1536byte long data packet transmission.
● Built-in efficient exchange core, suppression of broadcast storm, flow control, CRC error check
● Supplies ultra low latency data transmission.

● Supports DIP switch set monitoring mode, extend the IPC access distance; up to 250 meters

● Supports DIP switch set VLAN function: blocking the next port between the communication, improve

data forwarding efficiency, security system security.

● Support CBIT to ensure the image clear.

● Support network storm function, automatically identify and filter broadcast packets



Product picture

100M Power Over Ethernet Network Switch 0

100M Power Over Ethernet Network Switch 1

Application Diagram


100M Power Over Ethernet Network Switch 2

Packaging & Shipping


● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



100M Power Over Ethernet Network Switch 3
