Industrial Cascading Ethernet Fiber Switch 8 10/100Mbps Ethernet and 2 Gigabit Optical Ports

Industrial Cascading Ethernet Fiber Switch 8 10/100Mbps Ethernet and 2 Gigabit Optical Ports

  • Industrial Cascading Ethernet Fiber Switch 8 10/100Mbps Ethernet and 2 Gigabit Optical Ports
Industrial Cascading Ethernet Fiber Switch 8 10/100Mbps Ethernet and 2 Gigabit Optical Ports
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC, ROHS
Model Number: AEO-GHD818E
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Network Ports: 8 10/100Mbps Adaptive Ethernet Ports Optical Ports: 2 10/100/1000Mbps Optical Ports
Backplane Bandwidth: 7.6G Cache: 1M
MAC Address Table: 8K Power Consumption: ≤5W
Fiber Ports Propertie: 1310/1550nm Transmission Distance: Adjacent Distance:0-100KM
Input Voltage: DC12V-18V Operating Temperature: -40 ~ 85℃
Transmission Power: -10~-2 DBm Received Sensitivity: ≤-24 DBm
Network Ports Properties: IEEE802.3、IEEE802.3U、IEEE802.3X Protocol Network Port Delay: ﹤9.6μS
Network Port Bit Error Rate: ﹤1/1000000000

Industrial Cascading Ethernet Fiber Switch 8 10/100Mbps Ethernet and 2 Gigabit Optical Ports



Technical Parameters

Network Ports 8 10/100Base-T(X) adaptive Ethernet ports
Network Ports Properties RJ45
Network Ports protocol IEEE802.3,IEEE802.3U,IEEE802.3X protocol
Ports Features Support half-duplex, full-duplex, auto-negotiation mode
Ports Features Support MDI/MDI-X adaptation
Delay ﹤9.6μS
Bit Error Rate ﹤1/1000000000
Backplane Bandwidth 7.6G
Cache 1M
MAC address table 8K
Power consumption ≤5W
Transmission Rate 10/100/1000Mbps
Optical Fiber Ports 2Ch Gigabit Single Mode FC Optical Fiber Ports
Optical Fiber Ports Properties Wave Length:1310/1550nm
Transmission Distance Adjacent Distance:0-100KM
Rated Input voltage DC12V-18V
Operating Temperature -40 ~ 85℃



System Overview

Industrial cascading ethernet fiber switch uses the design of industrial redundant ring net, and you can find two fiber ports which make up the ring net in every transmission equipment. The ring network topology structure is composed through hand in hand cascading, which can achieve no phase delay transmission of the 1080p HD network signals. The purpose of industrial redundant ring net design is to achieve the stability, reliability and instantaneity of the data transmission in a harsh environment. The working principle is that the network signals become ring structure in physical connection while chain structure during work. Once out of connection in the transmission optical cable, the device would switch to the spare line to transmit. The redundant ring net structure not only reduces the risk of data signals transmission, but also simplifies the project installation and lowers the project costs.



Product Features

  • Supporting all the network HD cameras and other network signals;
  • Being compatible for IEE802.3,IEEE802.3U,IEEE802.3X and other internet protocol;
  • Supporting the transmission pattern of full-duplex and half-duplex, with the ability of automated negotiation;
  • Having the function of setting ring net in all the devices, and change transmission while the disconnection of the intermediate node;
  • Providing the transmission of ultra low delayed data;
  • Protecting from network broadcast radiation;
  • Providing 8 set adaptive Ethernet ports, which can link with internet camera, the switch and so on;
  • Adapting parallel or cross-wire connection;
  • Having APC circuit, with constant optical power output and wide dynamic range;
  • 1000Mbps optical fiber transmission, with large capacity which could be upgraded easily;
  • Having advanced adaptive technology, no field of the use of optical or electrical adjustment
  • Adapting three-level lighting protection technology on the computer ports and network signals.
  • Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be 250M
  • Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.
  • Support the din rail & desktop installation
  • Support the CBIT to ensure the HD image.

Product picture

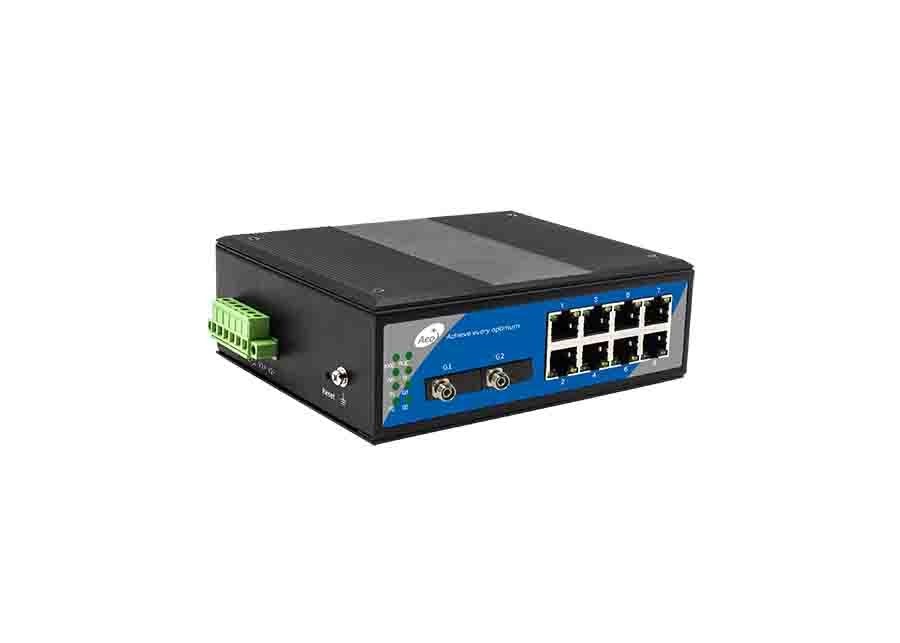

Industrial Cascading Ethernet Fiber Switch 8 10/100Mbps Ethernet and 2 Gigabit Optical Ports 0



Packaging & Shipping



●All of our package are international standard package

●We will deliver our products as soon as the order confirmed


Industrial Cascading Ethernet Fiber Switch 8 10/100Mbps Ethernet and 2 Gigabit Optical Ports 1
