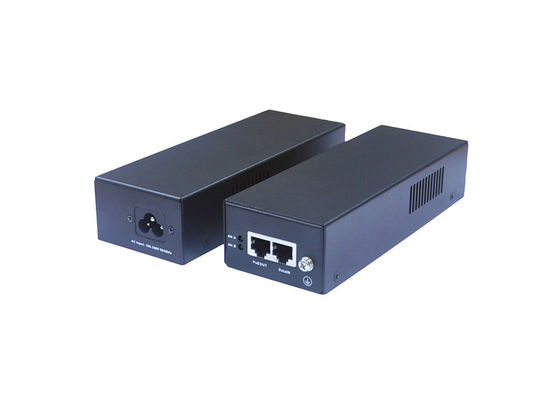

Cat5 5e 6 Gigabit POE Injector , 60W 100m POE 802.3 At Injector

Cat5 5e 6 Gigabit POE Injector , 60W 100m POE 802.3 At Injector

Cat5 5e 6 Gigabit POE Injector , 60W 100m POE 802.3 At Injector
Cat5 5e 6 Gigabit POE Injector , 60W 100m POE 802.3 At Injector
Cat5 5e 6 Gigabit POE Injector , 60W 100m POE 802.3 At Injector
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Model Number: AEO-PI60W
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000 pairs/month
Contact Now
Detailed Product Description
Transmission Rate: 10/100/1000 Mbps Connectors: Shielded RJ-45, EIA 568A And 568B
Regulatory Compliance: IEEE802.3af, IEEE802.3at, IEEE802.3bt Output Ripple: <5%
Input Voltage: AC100V~AC240V PoE Power Method: End-span / Mid-span
Transmission Medium: Cat5/5e/6 Cable Communication Port: 1×RJ45 Input
Distance: 100m Working Temperature: -10℃~55℃
Storage Temperature: -20℃~70℃ Humidity(Non-condensing): 0~90%
High Light:

60W Gigabit POE Injector

,

Gigabit POE Injector

,

100m POE 802.3 at injector

Gigabit POE Injector 60W 100m by Cat5/5e/6



Technical Parameters

Item Description
Interface Input Voltage AC100V~AC240V
  Data Input 1×RJ45
  PoE output 1×RJ45
PoE PoE Power Method End-span / Mid-span
  PoE Power Output DC 54V/60 watts
  Output Ripple <5%
  Power Pin Assignment Pair1:1/2(+),3/6(-) Pair2:4/5(-),7/8(+)
Ethernet Port Communication Port 1×RJ45 Input
  Transmission Rate 10/100/1000Mbps
  Transmission Medium Cat5/5e/6 Cable
  Distance 100m (Max.)
Status Power LED 1 (Red)
  PoE LED 1 (Orange)
Protection Surge PoE Power: 1KV(Differential Mode),2KV(Common
    Mode)1.2/50us,8/20us
    Ethernet:2KV(Differential Mode),6KV(Common
    Mode)10/7000us
  ESD 1a Contact Discharge Level 3
    1b Air Discharge Level 3
    Per: IEC61000-4-2
Environment Working Temperature -10℃~55℃
  Storage Temperature -40℃~85℃
  Humidity(Non-condensing) 0~90%



Product Description:

This is a single-port PoE injector with one Ethernet port, one PoE output port, and one AC input power port. It supports end-span PoE and the output power consumption is up to 60W; It features:10/100M/1000Mbps network,100m transmission distance,6KV lightning protection, industrial-level chip, and patent alert. it's an excellent choice for power supply and network transmission on PTZ cameras, all-in-one PC, digital display system. It is a single port Mid-spans offer a compact and cost effective, fully IEEE802.3bt compliant solution for remote powering of wireless LAN (WAN) access points, IP Security cameras, VoIP telephone and other low port density installations. It eliminates the need for external power supply and its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over existing Ethernet infrastructure.



Product Features:

◆ IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt.

◆ Up to 60W.
◆ Supports 10/100/1000 Base-T applications
◆ LED indicators power input and PoE output indication
◆ Distance up to 100 meters
◆ Internal AC/DC converter ‐ no need for external power brick
◆ Easy plug‐and‐play installation



Application Diagram



Cat5 5e 6 Gigabit POE Injector , 60W 100m POE 802.3 At Injector 0



Packaging & Shipping



● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



Cat5 5e 6 Gigabit POE Injector , 60W 100m POE 802.3 At Injector 1
