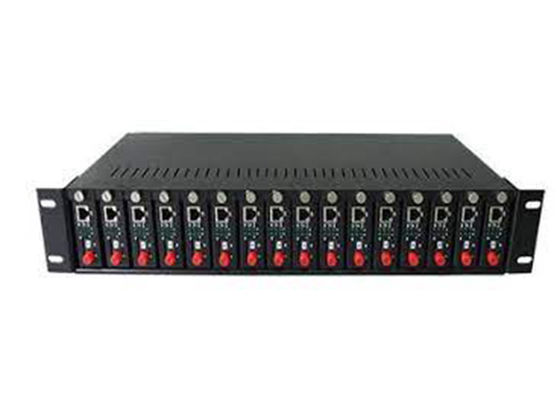

16 Slots Rack Mount Media Converter Chassis With Redundant Power Supply

16 Slots Rack Mount Media Converter Chassis With Redundant Power Supply

16 Slots Rack Mount Media Converter Chassis With Redundant Power Supply
16 Slots Rack Mount Media Converter Chassis With Redundant Power Supply
16 Slots Rack Mount Media Converter Chassis With Redundant Power Supply
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Power In: AC100V ~ 260V,0.5A Slot: 16 Cards To Support The Hot Plug
Power Protection: Overpressure/overcurrent/short Circuit Protection DC Output: DC5V
DC Power Plug Diameter: 2.5/5.5mm Ripple: ≤50 Mv
Power Configuration: Dual Power Backup Working Temperature: -10~60°C
Storage Temperature: -20 ~ 70℃ Working Humidity: 5% ~ 90%(non-condensation)
Noise: ≤50 Mv Slots Number: 16
Diameter Of DC Plug: 2.5/5.5 Mm
High Light:

16 Slots Rack Mount Media Converter Chassis

,

AC100V Rack Mount Media Converter Chassis

,

19" fiber media converter chassis

16 Slots Rack for Media Converter Chassis with Redundant Power Supply



Technical parameters

Slot 16 cards to support the hot plug
Input power AC100V ~ 260V,0.5A
Power protection Overpressure/overcurrent/short circuit protection
Slot number 16
DC output DC5V
DC power plug diameter 2.5/5.5mm
Ripple ≤50mV
Power configuration A single or dual power backup
Working temperature -10~60°C
Storage Temperature -20 ~ 70℃
Working humidity 5% ~ 90%(non-condensation)
Ripple ≤50 Mv
Noise ≤50 Mv
Diameter of DC plug 2.5/5.5 mm
Safety certification FCC Class A,CE Mark,VCCI Class A,C-Tick
Dimensions(mm) 480(W) X 231(D) X 90(H)



Product overview

The media converter chassis providing more capacity to the converters in one chassis, it is able to host up to 16 series media converters.

All converters are individually secured into the chassis and can be hot-swapped for maximum connection reliability. The Chassis is a standard 19 inch rack mountable size, to save more spaces for fiber-optic wiring and ease to maintain of media converters.The dual hot-swappable power supplies ensure continues network operation, and independent power supply, you can freely install the converters without interrupting the rest of the networks.



Product Features

◆ Supports up to 16 media converters
◆ Supports 19” standard rack-mount size
◆ Supports Fast Ethernet, Gigabit Ethernet, Single-mode and Multi-mode fiber media converters
◆ Supports Hot-swappable of Media Converters and Power Supplies
◆ Two redundant power supplies with two cooling fans

◆ The main and spare power configuration to ensure system work.

◆ Support 100Mbps, gigabit, single fiber and double fiber media converter card to work at the same time.

◆ Each card support hot plug.

◆ High strength metal shell, standard rack installation.

◆ Number of slots :16

◆ Media converters adapted :

◆ 16 cards chassis : 10/100M or 1000M or 10/100/1000M media converter cards

◆ Power in :AC 100 V~260 V

◆ Diameter of DC plug :2.5/5.5 mm

◆ Ripple≤50 Mv

◆ Noise :≤50 Mv

◆ Protection of power supply :circuit-breaker when overvoltage ;circuit-breaker when overflow ;circuit-breaker when short circuit



Product Picture

16 Slots Rack Mount Media Converter Chassis With Redundant Power Supply 0

Application Diagram

16 Slots Rack Mount Media Converter Chassis With Redundant Power Supply 1



Packaging & Shipping


● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



16 Slots Rack Mount Media Converter Chassis With Redundant Power Supply 2
