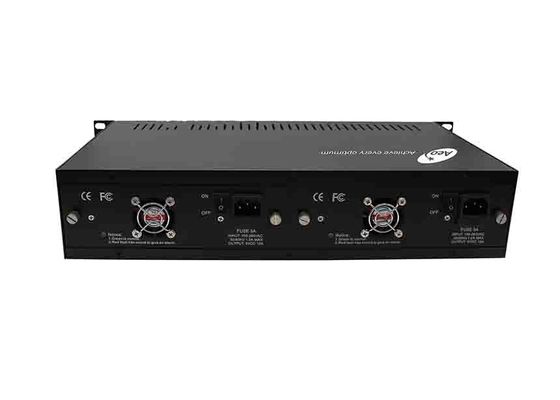

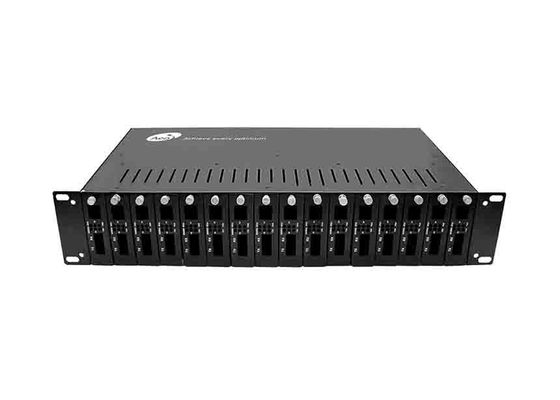

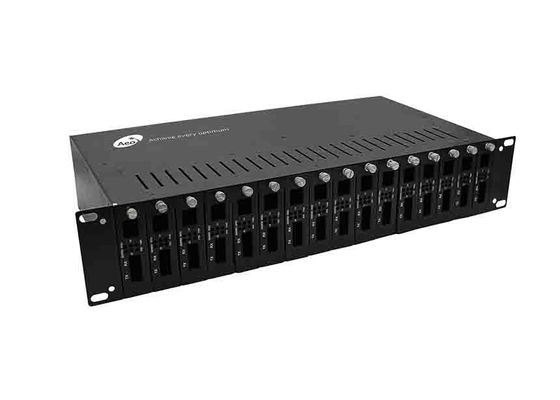

2U Rack Mount Media Converter Chassis Dual Power Supply

2U Rack Mount Media Converter Chassis Dual Power Supply

2U Rack Mount Media Converter Chassis Dual Power Supply
2U Rack Mount Media Converter Chassis Dual Power Supply
2U Rack Mount Media Converter Chassis Dual Power Supply
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Power In: AC100V ~ 260V,0.5A Slot: 16 Cards To Support The Hot Plug
Power Protection: Overpressure/overcurrent/short Circuit Protection DC Output: DC5V
DC Power Plug Diameter: 2.5/5.5mm Ripple: ≤50mV
Power Configuration: Dual Power Backup Working Temperature: -10~60°C
Storage Temperature: -20 ~ 70℃ Working Humidity: 5% ~ 90%(non-condensation)
Noise: ≤50 Mv Number Of Cards: 16
High Light:

2U Rack Mount Media Converter Chassis

,

16 Cards Rack Mount Media Converter Chassis

,

transition networks rack mount media converter

2U 16 Cards Rack Mount Media Converter Chassis with Dual Power Supply



Technical parameters

Model AEO-ZGF2U-16/C
Slot 16 cards to support the hot plug
Input power AC100V ~ 260V,0.5A
Power protection Overpressure/overcurrent/short circuit protection
DC output DC5V
DC power plug diameter 2.5/5.5mm
Ripple ≤50mV
Power configuration A single or dual power backup
Working temperature -10~60°C
Storage Temperature -20 ~ 70℃
Working humidity 5% ~ 90%(non-condensation)
Safety certification FCC Class A,CE Mark,VCCI Class A,C-Tick
Dimensions(mm) 480(W) X 231(D) X 90(H)



Product overview

This converter chassis can supply several media converters with power ,this will simple the links and structure , it can work stably and adapt broad width of voltage .It can store strong power and can be operated and managed easily. The maintenance of this chassis is also very easy. This option is the very one to meet the requirements of good stability , high capacity , good integration and good quality .

This option supports hot-swap convert modules .It can work with dual power supply as users wish, when the power supply should be maintained or changed ,it is not necessary to pull-out the converters ,this makes the maintenance easy. With all these advantages ,this option can supply users with an effictive solution of networks.  It supports hot plug, dual power supply working, maintenance is very convenient. It has the significant characteristics of stable work, large range of supply voltage, large capacity of power supply, easy to operate, easy to manage, easy to maintain and others. It is suitable for high reliability, high capacity, high integration and high performance work environment.



Product Features

◆ The main and spare power configuration to ensure system work.

◆ Support 100Mbps, gigabit, single fiber and double fiber media converter card to work at the same time.

◆ Each card support hot plug.

◆ High strength metal shell, standard rack installation.

◆ Number of cards :16

◆ Media converters adapted :

◆ 16 cards chassis : 10/100M or 1000M or 10/100/1000M media converter cards

◆ Power in :AC 100 V~260 V

◆ Diameter of DC plug :2.5/5.5 mm

◆ Ripple≤50 Mv

◆ Noise :≤50 Mv

◆ Protection of power supply :circuit-breaker when overvoltage ;circuit-breaker when overflow ;circuit-breaker when short circuit



Application Diagram

2U Rack Mount Media Converter Chassis Dual Power Supply 0



Packaging & Shipping


● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



2U Rack Mount Media Converter Chassis Dual Power Supply 1
