ROHS 10/100/1000Mbps POE Fiber Switch With 1 Fiber And 4 Ethernet Port

ROHS 10/100/1000Mbps POE Fiber Switch With 1 Fiber And 4 Ethernet Port

  • ROHS 10/100/1000Mbps POE Fiber Switch With 1 Fiber And 4 Ethernet Port
ROHS 10/100/1000Mbps POE Fiber Switch With 1 Fiber And 4 Ethernet Port
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC, ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
SFP Ports: 1x 100/1000Mpbs UTP RJ45: 4x10/100/1000M
Transmission Mode: Storage And Forward System Bandwidth: 40Gbps (non-traffic Jam)
Working Temperature: -40°~ 85°C Working Humidity: 10%~90%,non-condensing
SM: 1310nm/1550nm,20Km MM: 1310nm,2Km
High Light:

10/100/1000Mbps POE Fiber Switch


ROHS POE Fiber Switch


ROHS Fiber Optic POE Switch

Industrial POE Fiber Switch 10/100/1000Mbps 1 Fiber and 4 Ethernet Ports


System Overview

1 Fiber and 4 Ethernet Ports​ Industrial POE Fiber Switch is the 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.


Technical Parameters

Product Name 10/100/1000Mbps Industrial POE Fiber Switch (1F+4TP)

1 x 1000Mpbs SFP port




4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Switching features

Transmission mode:storage and forward

System bandwidth:40Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network, fiber
Power supply

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W (port 1~4)

(802.3at standards required special instructions)


Working temperature:-40°~ 85°C

Storage temperature:-40°~ 85°C

Working humidity:10%~90%,non-condensing

Storage humidity:10%~95%,non-condensing

Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control:NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic:EN 50121-4


CE Mark ,commercial

CE/LVD EN60950

Mechanical information

Shell:Corrugated metal shell

Safety class:IP40

Dimension:114 x 93 x 35mm

Mounting method:Din-rail mounting


Replacement within 1 year; 5 years repairing


Product Features

1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.

2. IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports

3. 4 x 10/100/1000Mbps Auto-sensing RJ45 ports

4. 1 x 1000Mbps SFP fiber ports

5. 4 KV Ethernet surge protection, adapt to a harsh outdoor environment

6. Support Auto MDI/MDIX

7. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard

8. IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant

9. Max power to15.4W under af standard, 30W under at standard to each PoE port

10. Detect the PoE models of electrical equipments.

11. A store-and-forward switching mechanism

12. Operating environment temperature:-40 ° ~85 ° c


Product Picture

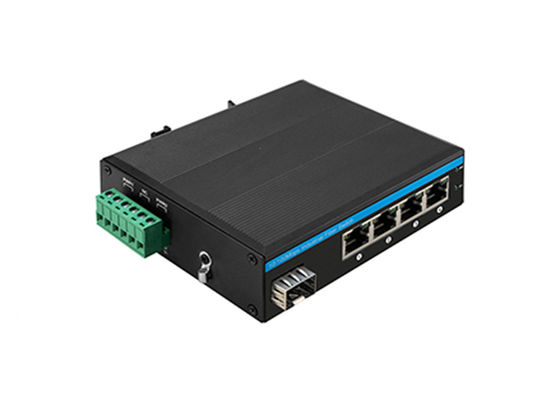

ROHS 10/100/1000Mbps POE Fiber Switch With 1 Fiber And 4 Ethernet Port 0


Packaging & Shipping


● All of our package are international standard package

● We will deliver our products as soon as the order confirmed


ROHS 10/100/1000Mbps POE Fiber Switch With 1 Fiber And 4 Ethernet Port 1
