| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 pcs/month |
| SFP Port: | 10/100/1000Mbps | Ethernet Port: | 8 10/100/1000mbps UTP |
|---|---|---|---|
| Bandwidth: | 40G | Chipset: | DC48V |
| Storage Temperature: | -40°～ 85°C | Working Temperature: | -40°～ 85°C |
| High Light: | 9 Port Industrial POE Switch,IP44 Din Rail Media Converter |
||
9 Port Industrial POE Switch Gigabit Optical Din Rail Fiber Converter
Technical Parameter
| Port |
1 x 1000Mpbs SFP port SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply |
POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1~4) (802.3at standards required special instructions) |
| Environment |
Working temperature:-40°～ 85°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Safety |
CE Mark ,commercial CE/LVD EN60950 |
| Warranty | Replacement within 1 year; 5 years repairing |
Product Overview
10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards.
Product Feature
IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable

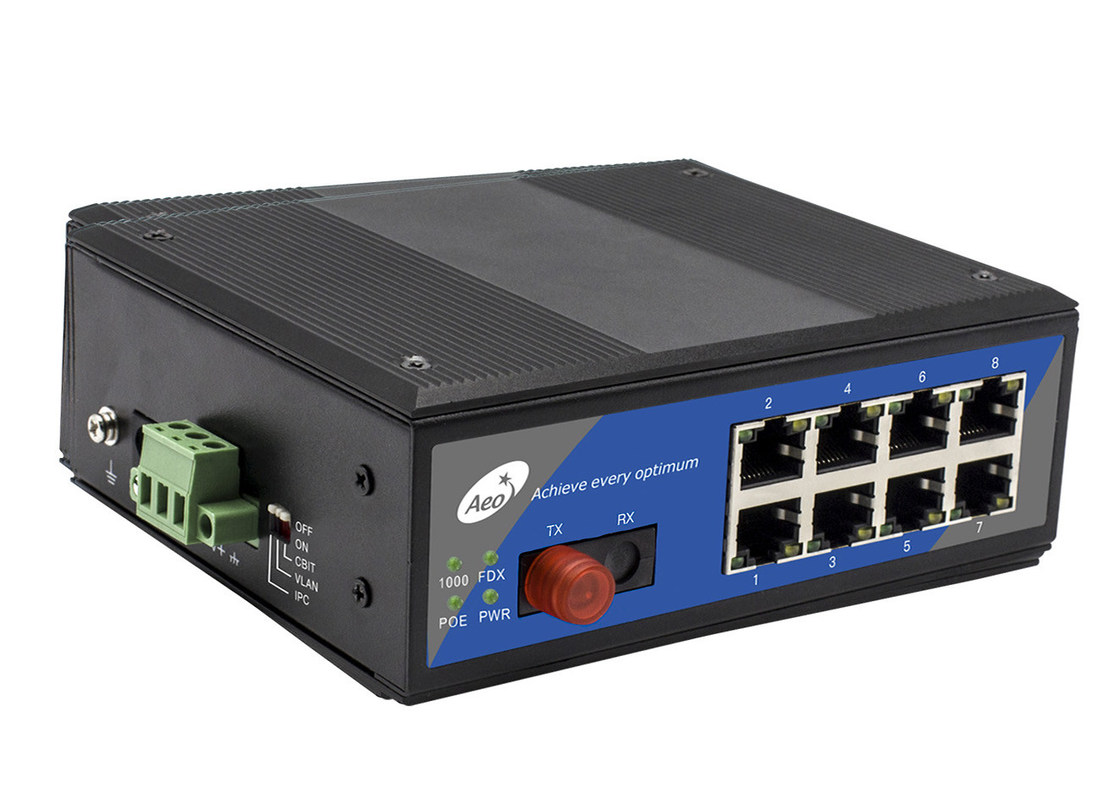

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
