| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 pcs/month |
| POE Protocol: | IEEE 802.3af/IEEE 802.3at | Switch Capability: | 12Gbps |
|---|---|---|---|
| Power Distance: | ≤100m | Whole Power: | ≤120W (52V 2.3A) |
| Forwarding Mode: | Store And Forward | Working Temperature: | -10°– 55°C |
| High Light: | Detachable Antennas WIFI 4G Router,128MB WIFI 4G Router,NTP Synchronize 4G 5G WIFI Router |
||
12-port PoE Switch 8 10/100/1000 PoE and 2 10/100/1000 Uplink Port and 2 10/100/1000 SFP Slots
Technical Parameter
| Product | 8+2+2 Port SFP POE Switch (Built-in) |
| POE Port | 1 to 8 support IEEE802.3AF/AT Standard |
| Output Power | 15.4W/30W IEEE802.3af/at |
| Power Pin | Both 1/2+,3/6- and 4/5+7/8- |
| Whole Power | ≤120W (52V 2.3A) |
| POE Protocol | IEEE 802.3af/IEEE 802.3at |
| POE Type | End-span |
| Power Distance | ≤100m |
| Network Standard | IEEE 802.3, IEEE802.3u,802.3x,802.3af/at |
| Network Medium | 10/100BASE-TX:5 class and above non shielded twisted pair |
| Data Distance | ≤100m |
| Switch Capability | 12Gbps |
| Forwarding Mode | Store and forward |
| Forwarding Rate | 10BASE-T:14880PPS/port100BASE-tx:14800pps/port1000BASE-tx:1488095pps/port |
| MAC Address | MAC address table 2K |
| Port Function | Power priority mechanism, fast and forward, MAC automatic learning and agingIEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
| LED Indicator | Each port occupied 1 LINK/ACT.100Mbps,POE Status Indicator, Whole power indicator |
| Working Environment | Working temperature:-10°– 55°C |
Product Overview
POE switches provide from one network node uses Cat5 cable simultaneous transmission of data and power, when AC power is not power or take power inconvenient (such as PTZ cameras and WiMAX devices), it is designed for wireless networks, security automation applications..
The POE switches dramatically reduces the cost of wiring the power user, wireless LAN access points, video surveillance cameras and other equipment must be spent to better support the new services and applications, providing users with a higher flexibility and mobility.
Product Features
*8*100/1000mbps POE port+2*100/1000mbps UP Link port+2*Gigabit SFP Fiber Port;
*100m Distance
*Supports Quality of Service (QoS)
*Support IEEE802.3AF/AT, Support Vlan.
*Watchdog function
*Whole Power:120W(52V 2.3A), internal power supply
*All port supported by MDI/MDIX auto flip and self negotiation
*Supply 8 100/1000Mpbs adaptive high speed forwarding data packet non-lost port.
*Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
*Each port max. power supply reached 30W.

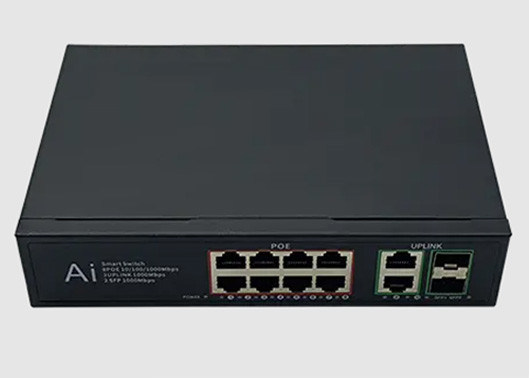

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
