| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 pcs/month |
| Switching Capacity: | 12G | Forwarding Rate: | 8.93Mpps |
|---|---|---|---|
| MAC: | 2K | Buffer Memory: | 2M |
| Operation TEMP: | -20~+55°C | PoE Port: | Yes |
| High Light: | Openwrt Modem 5G Wireless Router,M2 Interface 5G Wireless Router,Gigabit SIM 4G 5G WIFI Router |
||

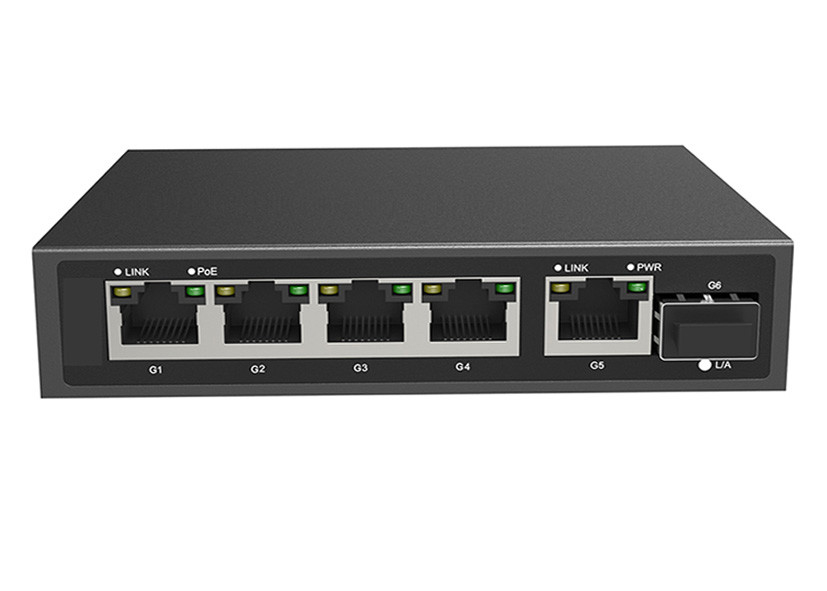

Full Gigabit 6-port PoE Switch 5*10/100/1000M RJ45 ports and 1*1000M Uplink SFP Port
Technical Parameter
| Interface Characteristics | |
| Fixed Port |
4*10/100/1000Base-T PoE ports(Data/Power) 1*10/100/1000Base-T uplink RJ45 port (Data) 1*1000Base-X SFP fiber port slots (Data) |
| Ethernet Port | Port 1-5 can support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
| SFP Slot Port | Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
| Optical Cable/ Distance | Multi-mode: 850nm/0 ~ 550M, Single-mode: 1310nm/ 0 ~ 40KM, 1550nm/ 0 ~ 120KM. |
| Chip Parameter | |
| Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IEEE802.3x |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 12Gbps |
|
Forwarding Rate@64byte |
8.93Mpps |
| MAC | 2K |
| Buffer Memory | 2M |
| LED Indicator | Power: PWR (green), network: Link(yellow), POE: PoE (green) |
| Reset Switch | Yes, One-button factory reset |
| PoE & Power Supply | |
| PoE Port | Port 1 to 4 IEEE802.3af/at @ POE |
| Power Supply Pin | Default 1/2 (+), 3/6 (-), optional 4/5 (+), 7/8 (-) |
| Max Power Per Port | 30W; IEEE802.3af/at |
| Total PWR / Input Voltage | 65W/(DC52V) |
| Power Consumption | Standby<5W, Full load<65W |
| Power Supply |
External power adapter, AC100~240V 50-60Hz 1.1A |
| Physical Parameter | |
| Operation TEMP / Humidity | -20~+55°C;5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing |
| Installation | Desktop, wall-mounted |
Product Overview
Full gigabit PoE fiber switch has 5*10/100/1000M RJ45 ports and 1*1000M SFP slot port. Port 1-4 can support IEEE802.3af/at standard PoE. single port PoE power reaches 30W, and the maximum PoE output power is 65W(at-110W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable.
Product Features
Full gigabit access, gigabit TP/SFP port uplink
◇ All series supports "gigabit Ethernet port and gigabit SFP fiber port " combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Intelligent PoE power supply
◇ 4*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
