| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 pcs/month |
| Power Input: | DC12V 2A | Switching Capacity: | 32G |
|---|---|---|---|
| MAC Table Size: | 16K | Free Fall: | 0.5m |
| Full Load: | <15W | Operating Temperature: | -20~70℃ |
| High Light: | Auto MDI Fiber Ethernet Switch,DC12V Fiber Ethernet Switch,2A Ethernet Fiber Switch |
||
FIBER ETHERNET SWITCH with 2 10/100/1000TX Ethernet + 8 1000FX SFP Ports
Technical Parameter
| Fixed Port | 2*10/100/1000Base TX+8*1000Base X SFP |
| Power interface | DC Connector (2.5 mm) |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission Distance |
Cat5 100m Multimode, Single/Dual-fiber 2Km Single Mode, Single-fiber 20/40/60/80/100Km Single Mode, Dual-fiber 20/40/60/80/100/120Km |
| Ethernet Port | 10/100/1000M RJ45 Ports, Connection STP / UTP Cat5/Cat5e Cooper Cable |
| Fiber Port |
Multimode, Dual-fiber SC/ST/FC (Diameter 50/125, 62.5 / 125μm) Single Mode, Single Fiber, SC/ST/FC (Diameter 9/125μm ) Single Mode, Dual-fiber SC/FC (diameter 9/125μm ) |
| Exchange Attribute |
Conversion Method: Media conversion, store and forward / straight in MAC Add: 16 K Switching capacity:32G Full duplex state: flow control, half-duplex: backpressure mode Store and Forward: 9.6us, Straight In: 0.9us Vlan:Support |
| Network Topology |
Ring topology:Not Support Star topology:Support Bus topology:Support Tree Topology:Support |
| LED Indicator |
PWR:Power Supply FX1-FX8: Fiber port indicator Ethernet port link/act yellow light: Rate indicator Ethernet port link/act green light: Ethernet port indicator |
| Input Voltage |
DC12V2A (Total power) ≤15W |
| Working Environment |
Operating Temperature: -20~70℃ Storage Temperature: -40~85℃ Storage Humidity: 5% to 90% non-condensing |
| Dimension | 210*100*25mm ( L * W * H ) |
| Weight | 1KG |
| MC&INGRESS PROTECTION |
Surge protection of Power:IEC 61000-4-5 Level 3(2KV)(8/20us) Surge protection of Ethernet port:IEC 61000-4-5 Level 4(4KV)(10/700us) ESD:IEC 61000-4-2 Level 4 (8K/15K) Free fall:0.5m |
Product Overview
10/100/1000M self-adaptive Fast Ethernet fiber switch, with 8 1000M SFP ports and 2 10/100/1000Base-TX self-adaptive Ethernet RJ45 interfaces.
The product design conforms to the Ethernet standard, adds lightning protection and anti-static protection measures, and has a wide range of operating temperature from -20°C to 70°C, with stable and reliable performance. The device can be widely used in various broadband data
transmission fields
Features
* Compliance with IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.1Q, 10Base-TX, 100Base-TX, 1000Base-TX, 1000Base-FX standards.
* It supports TCP / IP, PPPOE, DHCP, ICMP, NAT protocol.
* Flow control: Full duplex using IEEE 802.3X, a standard half-duplex adopt Backpressure.
* Electrical ports support auto-negotiation function, automatically adjusts the transmission and transfer rates.
* Ports support Auto-MDI / MDIX auto-flip.
* Support store and forward mode.
* Supports 10M, 100M, 1000M mode or adaptive mode.
* Provide status indicators, external power supply (output 5V ~ 50Hz 2A).
* The card design, to facilitate future maintenance and inspection equipment.
* Modular power supply design, function board with separate power supply design, easy to post-maintenance.
* Unique IC solutions, the chip temperature low, to get rid of plus cooling system, flow control and reduce broadcast storms.
* High-quality integrated photovoltaic module provides good optical properties and electrical properties to ensure reliable transmission, long life.
* Operating Mechanism broadcast filtering, address auto-learning and auto-update feature and store and forward.
* It supports up to 1916 byte long data packet transmission.
* Missing link to provide remote diagnostics, electrical interface and optical port link link connection diagnostics, dynamic data transmission, full-duplex / half duplex, speed light, easy installation and later maintenance.

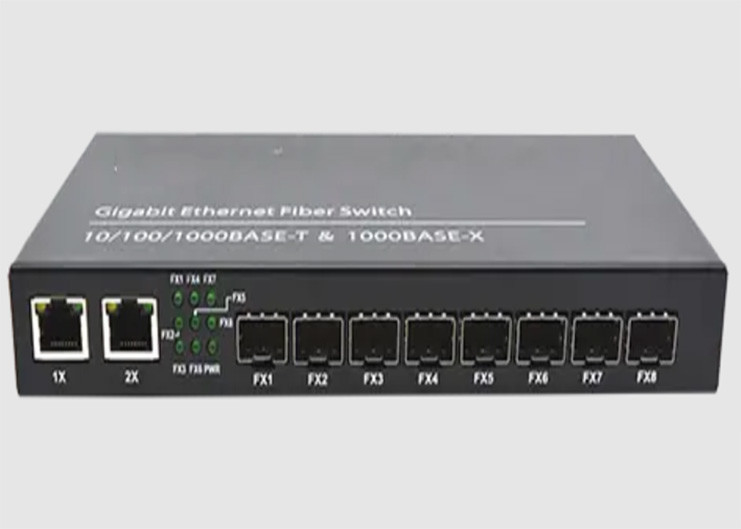

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
