DC12V Ethernet Fiber Switch 5 Port 2.5 G Switch With 10G SFP+ Uplink

DC12V Ethernet Fiber Switch 5 Port 2.5 G Switch With 10G SFP+ Uplink

  • DC12V Ethernet Fiber Switch 5 Port 2.5 G Switch With 10G SFP+ Uplink
DC12V Ethernet Fiber Switch 5 Port 2.5 G Switch With 10G SFP+ Uplink
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T, L/C
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Power Input: DC12V Switching Capacity: 45Gbps
MAC Table Size: 4K Pack Forward Rate: 33.48Mpps
MTBF: 100 000 HOURS Operating Temperature: -20~70℃
High Light:

45Gbps 2.5G Network Switch

,

DC12V 2.5G Network Switch

,

RoHS Ethernet Fiber Switch

5-port 2.5G Network Switch with 5 x 2.5G Ethernet Ports and 1 x 10G SFP+ Port


Technical Parameter

Power DC12V
Ethernet

5*2.5G RJ45 Ports

1*10G SFP+ Port

Performance
Bandwidth 45Gbps
Pack forward rate 33.48Mpps
VLAN 4096
MAC address 4K
Jumbo Frame 12Kbytes
Transfer mode Storage & forward
MTBF 100000 Hours
Standard
Network protocol

IEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE802.3ab(Gigabit Ethernet)

IEEE 802.3bz (5G Ethernet)

IEEE 802.3z (Gigabit Ethernet)

IEEE 802.3ae (10G Ethernet)

IEEE802.3x (Flow control)

Industry standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD)

EN61000-4-5(Surge)

Network Medium

10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m)

100Base-TX: Cat5 or above UTP/STP(≤100m)

1000Base-TX: Cat5 or above UTP/STP(≤100m)

Optical Medium

multi mode: 50/125, 62.5/125, 100/140um

Single mode: 8/125, 8.7/125, 9/125, 10/125um

Certificate
Safety certificate CE, FCC, RoHS
Environment standard
Working environment

Working Temperature: -20~70°C

Storage Temperature: -40~70°C

Working Humidity: 10%~90%, non-condensing

Storage Temperature: 5%~90%, non-condensing

Power voltage

Adapter input voltage: AC 100-240 V

switch input voltage: DC 12V1A



Product Overview

5-port 2.5G Ethernet Switch with 10G SFP+ uplink,using high quality and high speed network chip solution, this product completely solves the problem of loud noise of small switches deployed in the office environment through the fanless silent design. The equip 5* 2.5G RJ45 ports and 1* 10G SFP+ port, providing seamless connection to 10/100/1000M/2.5G Ethernet for easy management and maintenance. This switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.



Features

*5 x 2.5G BASE-T ports
*1 x 10G BASE-X SFP+ port
*IEEE 802.3bz (2.5G) compliant
*Compatible with 10/100/1000Mbps devices
*45Gbps switching capacity
*Fanless design eliminates noise

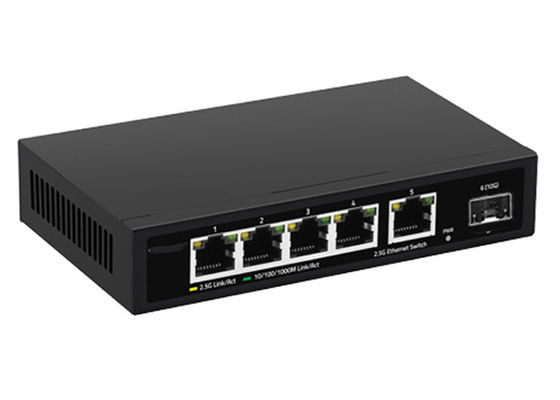

Product picture

DC12V Ethernet Fiber Switch 5 Port 2.5 G Switch With 10G SFP+ Uplink 0

Packaging & Shipping



● All of our package are international standard package
● We will deliver our products as soon as the order confirmed

DC12V Ethernet Fiber Switch 5 Port 2.5 G Switch With 10G SFP+ Uplink 1
