| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 pcs/month |
| Power Input: | DC12V | Switching Capacity: | 20Gbps |
|---|---|---|---|
| Jumbo Frame: | 9kb | Pack Forward Rate: | 14.89Mpps |
| MTBF: | 100 000 HOURS | Operating Temperature: | -20~70℃ |
| High Light: | L2 Managed Fiber Switch,14.89Mpps Managed Fiber Switch,Fanless Cooling Ethernet Fiber Switch |
||
8-port L2 Managed Fiber Switch with 2 1000 SFP Ports and 8 1000 Ethernet Ports
Technical Parameter
| Service Ports |
8 * 10/100/1000MBase-T ports; |
|
| Management Port | 1 Console | |
| Cooling system | Fanless | |
| Switching Capacity | 20 Gbps | |
| Packet Forwarding Capacity | 14.89Mpps | |
| Packet Buffer Memory | 4.1 Mbit | |
| Jumbo Frame | 9 KB | |
| Operation Temperature | -20~70°C | |
| Storage Temperature | -40~70°C | |
| Operation Humidity | 10%～90%(non-condensing) | |
| Storage Humidity | 5%～95%(non-condensing) | |
| Dimensions | 230(L)*154(W)*44(H)mm | |
| Weight | <1.5Kg | |
| Input Voltage(AC) | AC:110～240V/50～60Hz | |
| Power Consumption | <10W | |
| Protocol and Standards | IEEE 802.3, 10 Base-T Ethernet; | |
| IEEE 802.3u,100 BASE-TX; | ||
| IEEE 802.3ab,1000 BASE-T; | ||
| IEEE 802.3z,1000 BASE-X; | ||
| IEEE 802.3az,EEE(Energy Efficient Ethernet); | ||
| MAC Address | 8K MAC address Support auto-update, two-way learning |
|
| VLAN | Based Port VLAN | |
| Up to 4096 VLAN | ||
| VLANs based on IEEE 802.1q | ||
| Spanning Tree | STP Spanning Tree Protocol | |
| RSTP Rapid Spanning Tree Protocol | ||
| Port Aggregation | 8 aggregation groups,each containing up to 8 ports; | |
| Port Mirroring | Send and receive two-way port mirroring | |
| Ring network protocol | support | |
| Support ring protection | ||
| Support for Downward Multiring | ||
| Port Isolation | Downlink ports are isolated from each other and can communicate with uplink | |
| Port stream control | Half duplex based on backpressure control | |
| Full duplex based on PAUSE frames | ||
| Port speed limit | Port Based Input / Output Bandwidth Management | |
| Multicast control | IGMPv1/2/3 and MLDv1/2 Snooping | |
| DHCP | DHCP Snooping | |
| Storm suppression | Storm suppression for unknown Unicast, multicast, multicast, broadcast type | |
| Storm suppression based on bandwidth regulation and storm filtering | ||
| Security features | Based on Vlan, MAC binding | |
| ACL Based on IP and MAC | ||
| Security limit on the number of MAC addresses based on ports | ||
| QOS | 802.1 P Port Queue Priority Algorithm | |
| Cos/Tos,QOS tags | ||
| WRR (Weighted Round Robin) | ||
| Ping Detection | IPv4/IPv6 Ping Detection | |
| Modalities for consultation | Port automatic negotiation | |
| System maintenance | Detection of connectivity | |
| Upgrade package upload | ||
| See System log | ||
| WEB factory configuration restored | ||
| Management | WEB-based interface management | |
| Telnet | ||
| CLI Management (Command Line Interface) | ||
| SNMP | ||
Product Overview
8-port L2 Managed Fiber Switch is a full Gigabit management switch, which uses the unique optical port design of the industry, breaking through the limitations of traditional multiplexing ports; reliable switching engine, broadband telecommunication power supply design, fast and efficient loop protection function, escorting the stable operation of your network; international "EEE" environmental protection and energy saving Standard design, effectively saving electricity and money for users. This series of products provide users with brand-new technical characteristics and solutions in the aspects of security, reliability, multi-service integration, easy management and maintenance. It is the ideal convergence of office network, service network and resident network, access switch and the core switch of small and medium-sized enterprises and branches.
Features
*8x 10/100/1000 Base-T ports
*2x 1000 Base-X SFP ports
*8K MAC address, 4.1Mbit packet buffer
*VLAN, QoS, ACL, Spanning tree, DHCP/IGMP snooping
*CLI ,SNMP, WEB management
*supports loop detection, anti loop design

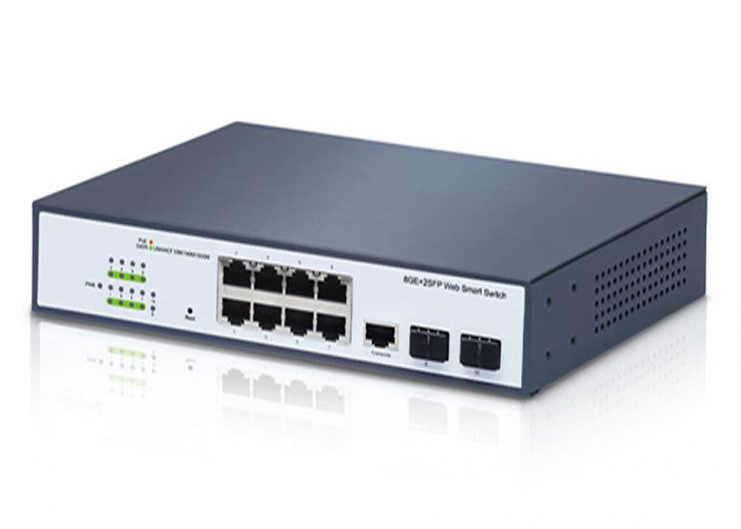

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
