| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 pcs/month |
| Power Input: | DC 12-57V | Switching Capacity: | 56/128Gbps （Non-blocking） |
|---|---|---|---|
| MAC Table: | 8k | Pack Forward Rate: | 40.32Mpps |
| MTBF: | 100 000 HOURS | Operating Temperature: | -20~70℃ |
| High Light: | Managed Industrial POE Switch,8GE Ethernet Ports Industrial POE Switch,4 GIGA SFP Ethernet Fiber Switch |
||
Managed Industrial POE Switch 8GE POE Ethernet Ports +4 GIGA SFP Ports
Technical Parameter
| Ports |
8*10/100/1000Base-TX RJ45 POE(2*24V/48V auto max 25w,2*90w POE,4*30w 802.3af/at) 4*1000M SFP |
||
| Console | 1*console Port for management | ||
| Reset | 1 | ||
| Power input | 2*independent power input,DC 12-57V | ||
| Environment detection | 1 set of environmental temperature and humidity detection input | ||
| Feature function |
1: industrial switch monitoring platform One-key set up a ring network 2: 2 group independent power inputs with undervoltage and overvoltage protection 3:1 group wide pressure alarm input, input range DC5-57V 4:1 group alarm output relay output, can define various custom conditions trigger 5:1 group environment temperature and humidity detection, real-time monitoring of environmental conditions 6: Real-time system key voltage monitoring and alarm output function 7: real-time system temperature, ambient temperature, environment humidity alarm output function 8: Real-time input voltage, current, power detection and display 9: A variety of custom port control, intelligent management |
||
| Network protocol |
|
||
| Network port | 1-8 port 10/100/1000BaseT(X)adaptive, Full/half duplex MDI/ MDI-X adaptive | ||
| Forward mode | Store-and-forward (full-line speed) | ||
| Backplane bandwidth | 56/128Gbps ( Non-blocking ) | ||
| Packet forwarding rate | 40.32Mpps | ||
| MAC table | 8K | ||
|
Packet forwarding cache |
4.1M | ||
| Medium |
10BASE-T : Cat3,4,5 UTP(≤250 meter) 100BASE-TX : Cat5 or later UTP(≤100 meter) 1000BASE-TX : Cat6 or later UTP(≤1000 meter) 1000BASE-SX:62.5μm/50μm MMF(2m~550m) 1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
||
| FLASH | 16M | ||
| RAM | 128M | ||
| Power consumption | ≤15W | ||
| LED indicator |
9 -12:(SFP indicator) Port(green/100M+yellow/1000M) PWR:(power indicator) PMX:( Power overload indicator light ) |
||
|
Operating temperature/ humidity |
-40～+85°C；5%～90% RH No condensation | ||
|
Storage temperature/ humidity |
-55～+95°C；5%～95% RH No condensation | ||
| Product size/package size (L*W*H) | 179×134×46mm | ||
| Net/gross weight (kg) | 1.2kg | ||
| installation | Rail mounting | ||
| Lightning protection/protection level |
Port lightning protection :6KV 8/20us； Protection grade :IP40 |
||
| Safety certification |
3C； CE mark, commercial；CE/LVD EN60950； |
||
| Quality assurance period | 1 year |
| WEB software function | |
| standards |
IEEE 802.3x IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z IEEE 802.3ad IEEE 802.3q ,IEEE 802.3q/p IEEE 802.1w,IEEE 802.1d ,IEEE 802.1S IEEE 802.3z 1000BASE-X STP(Spanning Tree Protocol) RSTP/MSTP( Rapid Spanning Tree Protocol) EPPS ring network protocol |
| MAC Address | 8K MAC addresses ；MAC address learning and aging |
| VLAN | 4k VLANS；Port-based VLANs；802.1Q VLAN |
| Spanning Tree |
STP(Spanning Tree Protocol) RSTP/MSTP( Rapid Spanning Tree Protocol) PPS ring network protocol EAPS ring network protocol 802.1x argumentation agreement |
| Link Aggregation | Max 8 aggregation groups, each supports 8 ports Static aggregation and dynamic aggregation |
| Port Mirror | Many-to-one port mirroring |
| Loop Guard | Loop protection function, real-time detection, rapid alarm, accurate positioning, intelligent blocking, automatic recovery |
| isolation | Support downlink ports isolated from each other and communicate with upstream port |
| Port flow control |
Half duplex based back pressure control Full duplex based on PAUSE frames |
| line rate | Support port based input / output bandwidth management |
| IGMP Snooping |
IGMPv1/2/3 MLDv1/2 Snooping GMRP protocol registration Multicast address management, multicast VLAN, multicast routing ports, static multicast addresses |
| DHCP | DHCP Snoping |
| Storm suppression |
Unknown unicast, multicast, unknown multicast, storm suppression of broadcast type Storm suppression based on bandwidth tuning and storm filtering |
| Security |
User port+IP address+MAC ACL based on IP and MAC Security properties of port based MAC address quantities |
| QOS |
802.1p port queue priority algorithm Cos/Tos,QOS sign WRR (Weighted Round Robin),Weighted priority rotation algorithm WRR,SP,WFQ,3 priority scheduling models |
| Port | Auto-MDIX ; Auto negotiation |
| system maintenance |
Upgrade package upload；system log view WEB restore factory configuration |
| Industrial switch monitoring platform | RING ON/OFF,RING status,Alarm input/Output,environment temperature and humidity detection, real-time monitoring of environmental conditions |
| Management and maintenance |
WEB Remote configuration and maintenance using Telnet SNMP V1/V2/V3；SSHV1/V2 RMON |
Product Overview
8 ports L2 full managed gigabit industrial POE Switch, which provides 8*10/100/1000M POE ports,4*100/1000M SFP fiber port. it provides 2*BT POE+2*AUTO POE+4*AT POE ports,supports rich software features such as Vlan,QoS,AAA,STP, MSTP, EAPS etc. Specially,it comes with temperature and humidity sensor, check the ambient temperature and humidity and trigger alarms.
Features
*Real-time input voltage, current, power detection and display
*Rich software features
*8*POE ports,include 2*BT POE+2*AUTO POE+4AT POE
*Temperature and humidity sensor
*RING network one key setting

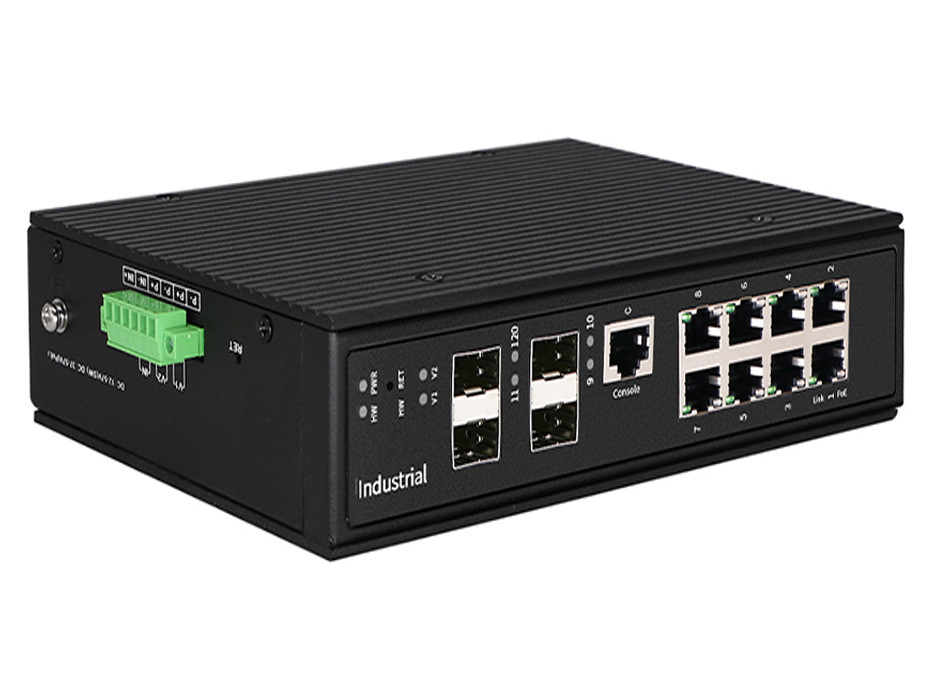

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
