| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pairs/month |
| Connection: | 6 Pin Terminal | Operating Temperature: | -40°C To +85°C |
|---|---|---|---|
| Storage Temperature: | -40°C To +85°C | Fiber Ports: | 1x1000Base-FX Ports (SC/ST/FC/LC/SFP Connector, Optional) |
| Transmission: | 0-100km | Input Voltage: | 24V DC (18~36VDC) |
| High Light: | 100BASE SFP Industrial Ethernet Fiber Switch,2 Port Industrial Ethernet Fiber Switch,1 Port Industrial Ethernet Fiber Switch |
||
Industrial Ethernet Fiber Switch 1 Port 100BASE SFP + 2 Port 10 / 100BASE-T
Technical parameters
| Parameter | Specifications |
| Standard | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX (Fast-Ethernet) IEE802.3z for 1000BASE-SX/LX(Gigabit-Ethernet) IEEE 802.3x for Flow control |
| RJ45 Port | 2x10/100/1000Base-T, Auto-negotiation, Full/Half Duplex, Auto-MDI/MDIX, on copper cable of cat5 with operation distance of less than 100 meters. |
| Fiber Ports | 1x1000Base-FX ports (SC/ST/FC/LC/SFP connector, optional) |
| Transmission |
Twisted pair: 100M (Standard CAT5/CAT5e cable) 1550nm, 20/40/60/80/100/120Km |
| Wavelength | 850nm, 1310nm, 1550nm |
| Power Input options | Input Voltage: 24V DC (18~36VDC) ,Redundant power input Overload Current Protection Support dual power backup Support dual power alarm input Connection: 6 pin terminal |
| Environmental Limits | Operating Temperature: -40°C to +80°C Storage Temperature: -45°C to +85°C Relative Humidity: 5% to 95% (non-condensing) |
| Mechanical Dimension | Dimensions: 61 x 120 x 140 mm House Protection: IP40 protection, Aluminium Alloy Installation: DIN-Rail or wall mounting Weight: 730g |
| Approvals | EMI: FCC Part 15 Subpart B Class A,EN 55022 Class A EMS: • EN61000-4-2 (ESD) , Level 3 • EN61000-4-3 (RS) , Level 3 • EN61000-4-4 (EFT) , Level 3 • EN61000-4-5 (Surge), Level 3 • EN61000-4-6 (CS) , Level 3 • EN61000-4-8, Level 3 Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
Product overview
Industrial Ethernet-to-fiber switches provide 2-port Ethernet media conversion from 10/100/1000BaseT(X) to 1000BaseFX (with FC, SC, ST or SFP connectors). The LNK-GY1200G series switches support IEEE 802.3/802.3u/802.3x with 10/100/1000M, full/half-duplex, and MDI/MDI-X auto-sensing, providing a complete solution for your industrial Ethernet network. In addition, the built-in relay warning function alerts network engineers when power failures or port breaks occur.
Product featurer
* Comply to IEE 802.3 10Base-T,IEEE802.3u ,100Base-TX/FX, 1000Base-TX/FX
* Provide a single mode /multimode optical port and 10/100/1000M RJ45 port, support for Full/half duplex mode and auto MDI/MDI-X connection
* Dynamic LED indicator, display the current operating status, providing a simple working condition and troubleshooting tips
* Adopt IEEE 802.3x Standard full-duplex flow control ,with standard duplex Backpressure flow control
* -40℃ to 85℃operating temperature range
* Designed for industrial applications. IP40 protection, Aluminum Alloy

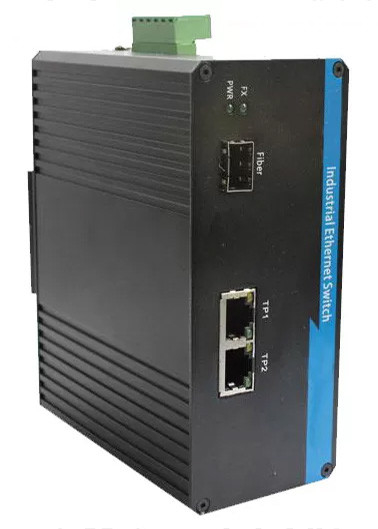

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
