| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pairs/month |
| Power Consumption: | 12W Max. 0.5A@24VDC | Operating Temperature: | -40°C To +85°C |
|---|---|---|---|
| Storage Temperature: | -40°C To +85°C | Fiber Ports: | 1x1000Base-FX Ports (SC/ST/FC/LC/SFP Connector, Optional) |
| Transmission: | 0-100km | Input Voltage: | 24V DC (18~36VDC) |
| High Light: | 1 Port 100BASE SFP Fiber Switch,10 / 100BASE-T SFP Fiber Switch,Industrial SFP Fiber Switch |
||
Industrial Ethernet Fiber Switch 1 Port 100BASE SFP + 1 Port 10 / 100BASE-T
Technical parameters
| Ethernet | |
| Standards: | IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet) |
| IEE802.3z 1000BASE-SX/LX(Gigabit-Ethernet) | |
| IEEE802.3x (Flow Control) | |
| IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate:: | 1,488,000pps (1000Mbps) |
| Cabling: | 1000Base-TX: Cat5 or above |
| Maximum Distance: | Cat5 UTP up to 100m |
| Connector: | 1x RJ45 |
| Optical Port: | 1000Base-FX ports (SC/ST/FC/LC connector, SFP Slot, optional) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | > 300,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 24VDC (18~36VDC, 6-Pin Terminal Block) |
| Power Consumption: | 12W Max. 0.5A@24VDC |
| LED Indicators | |
| PWR: | Power Status |
| RUN: | Link/Activity, Speed |
| FX: | Link/Activity |
| Dimensions (WxDxH): | 112 x 138 x 42mm |
| Weight: | 480g |
| Casing: | Aluminum Case |
| Mounting Options: | Din-Rail mounting, Wall mounting |
| Regulatory Approvals | |
| Safety: UL 60950-1 | |
| EMS: EN61000-4-2 (ESD),Level 3, EN61000-4-3 (RS),Level 3, EN61000-4-4 (EFT),Level 3, EN61000-4-5 (Surge),Level 3, EN61000-4-6 (CS),Level 3 | |
| Shock: IEC 60068-2-27 | |
| Free Fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A | |
| Industry: IEC61000-6-2 | |
| Rail: EN50155, EN50121-4 | |
| Traffic: NEMA TS-2 | |
Product overview
Industrial SFP Fiber Switch are hardened devices designed to reliably operate in harsh environments such as those found on factory floors, outdoor enclosures or other hazardous environments.Eliminate EMI and RFI issues or overcome distance limitations with copper based cabling by using the Industrial Media Converter to convert your copper based equipment over to fiber optics. The media converter can connect to either 10Base-T, 100Base-TX or 1000Base-TX ports and provides a 100Base-FX fiber optic connection for links up to 120 km.
Product featurer
* Converts 10/100/100Base-TX to 1000Base-FX
* IEEE802.3/802.3u/802.3x,store and forward
* Plug-and-play, easy to installation
* 10/100/1000M, F/H duplex, MDI/MDI-X auto negotiation
* Designed for industrial applications. IP40 protection, Aluminum Alloy
* Extensive LED indicators for network diagnostics
* Environmentally hardened -40°C to 80°C
* (-40°F to 176°F) operating temperature

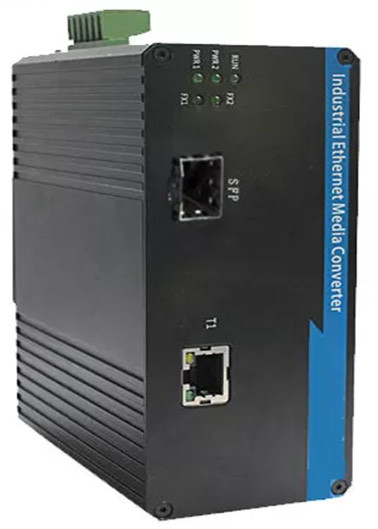

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
