CE 10/100/1000M IP Ethernet Over Coaxial Converter

CE 10/100/1000M IP Ethernet Over Coaxial Converter

  • CE 10/100/1000M IP Ethernet Over Coaxial Converter
CE 10/100/1000M IP Ethernet Over Coaxial Converter
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Transmission Rateansmission Rate: 95Mbps Coaxial Cable Input: BNC ( 75Ω Unbalanced)
Coaxial Cable Output: BNC ( 75Ω Unbalanced) LED: Power, Ethernet, Network Signal
Working Power Supply: DC12V / 400mA Power Loss: ≤5 W
Operating Temperature: -20 ~ 70℃ Operating Humidity: 5%~90%
Transmission Distance: 2KM Ethernet Port: 1 10/100/1000M
BNC Port: 2
High Light:

10/100/1000M Ethernet Over Coaxial Converter

,

CE Ethernet Over Coaxial Converter

,

95Mbps coax to rj45 media converter

Ethernet Over Coax Converter Converting Analog into IP 1 Gigabit Ethernet and 2 BNC Ports



Technical Parameters



Network Ports 10/100/1000Base-T(X) adaptive Ethernet port
Transmission Rate 95Mbps
Coaxial Cable Input BNC ( 75Ω unbalanced)
BNC port 2
Ethernet port 1
Coaxial Cable Output BNC ( 75Ω unbalanced)
LED light Power lights, Ethernet lights, network signal lights
Working Power supply DC12V / 400mA
Power Loss ≤5 W
POE Standard Protocol IEEE 802.3af/at
  Pin Definition V+,V+,V-,V- Corresponding to 1,2,3,6
  The Input Voltage DC48V
  The Output Power IEEE802.3af:15.5W IEEE802.3at:25.5W
Operating Temperature -20 ~ 70℃
Operating Humidity 5%~90%



System Overview

Ethernet Over Coaxial Converter is 10/100/1000Mbps ethernet and 2 BNC Ports, it transfers the network HD signals on the coaxial cable, EOC Ethernet to BNC Converter transfers the network HD signals on the coaxial cable, IP network cable, Power line, it can support HD 1080 P video signal transmission and the maximum transmission distance is up to 2,000 meters without delay. The existing analog monitoring system can be upgraded to HD network system on coaxial cable, thus entering into an era of million HD network, which also solve the complicated conversion problem of fiber transmission. It simplifies the installation project, lower the project cost, Plug and play, no need of any software and hardware setting.



Product Features

● Based on the latest Ethernet protocols of IEEE 1901.

● High speed of communication, it supports multimedia business and network.

● Both HD video and data signal can be transferred by the coaxial cable, Network cable and power line.

● Long distance transmission. It can transmit signal up to 2,000 meters without repeater, easy for network cable setting, the transmitting rate of TCP/IP on coaxial cable is no less than 30 Mbps within 2,000 meters.

● High transmission performance. It can transmit multi-channel of HD video simultaneously without delay, digital signal is only transmitted simply in different medium with no harm.

● Simple installation. Plug and play, no need of any software and hardware setting.

● Good compatibility. It is easy for adding spots under permits of total network bandwidth by using of T connectors to form a hand-in-hand connection, no need of setting new cables.

● Multi-channel signal transmission. It can transmit 16-channel of million resolution HD 1080p video, Alarm, Talkback and Control data signal on a coaxial cable.

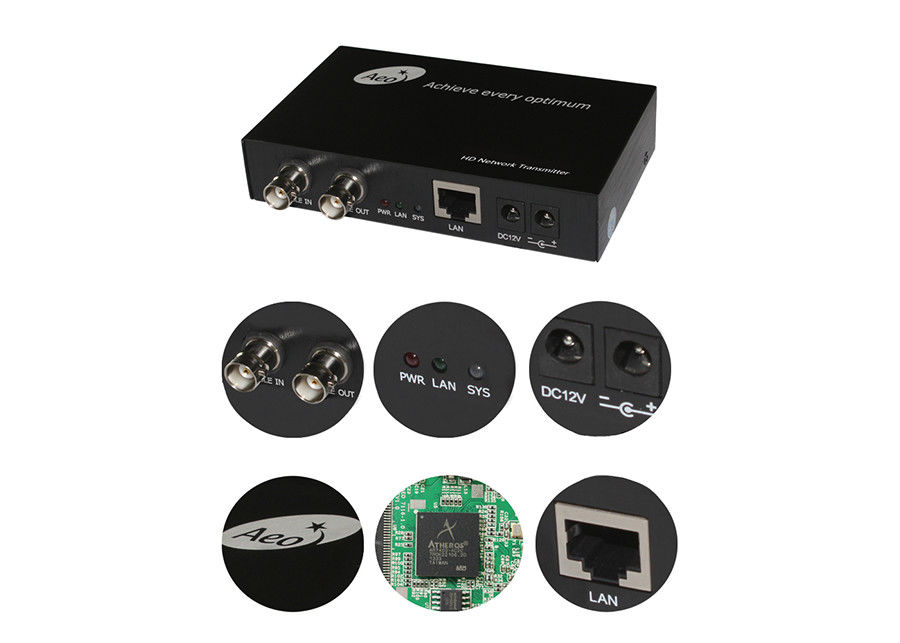

Product picture

CE 10/100/1000M IP Ethernet Over Coaxial Converter 0

Application Diagram

CE 10/100/1000M IP Ethernet Over Coaxial Converter 1

Packaging & Shipping



● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



CE 10/100/1000M IP Ethernet Over Coaxial Converter 2
