1 POE Ethernet 2 BNC Port Coax To Network Converter

1 POE Ethernet 2 BNC Port Coax To Network Converter

  • 1 POE Ethernet 2 BNC Port Coax To Network Converter
1 POE Ethernet 2 BNC Port Coax To Network Converter
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Transmission Rateansmission Rate: 10/100/1000Mbps Coaxial Cable Input: BNC ( 75Ω Unbalanced)
Coaxial Cable Output: BNC ( 75Ω Unbalanced) LED: Power, Ethernet, Network Signal
Working Power Supply: DC12V / 300mA Power Loss: ≤3 W
Operating Temperature: -20 ~ 70℃ Operating Humidity: 5%~90%
Transmission Distance: 2KM 10/100M Ethernet Port: 1 POE
BNC Port: 2
High Light:

2KM coax to network converter

,

2000m coax to network converter

,

10/100/1000Mbps coaxial to lan converter

Coax to IP POE Converter for Converting Analog into IP Signal 1 10/100/1000Mbps POE ethernet and 2 BNC Ports



Technical Parameters

Network Ports 1 10/100/1000Base-T(X) adaptive POE port
Transmission Rate 95Mbps
BNC Port 2
Coaxial Cable Input BNC ( 75Ω unbalanced)
Coaxial Cable Output BNC ( 75Ω unbalanced)
LED light Power lights, Ethernet lights, network signal lights
Working Power supply DC12V / 300mA
Power Loss ≤3 W
POE Standard Protocol IEEE 802.3af/at
  Pin Definition V+,V+,V-,V- Corresponding to 1,2,3,6
  The Input Voltage DC48V
  The Output Power IEEE802.3af:15.5W IEEE802.3at:25.5W
Operating Temperature -20 ~ 70℃
Operating Humidity 5%~90%



System Overview

Ethernet to BNC Converter is 10/100/1000Mbps 1 POE ethernet port and 2 BNC ports, it transfers the network HD signals on the coaxial cable, EOC Ethernet to BNC Converter transfers the network HD signals on the coaxial cable, IP network cable, Power line, it can support HD 1080 P video signal transmission and the maximum transmission distance is up to 2,000 meters without delay. The existing analog monitoring system can be upgraded to HD network system on coaxial cable, thus entering into an era of million HD network, which also solve the complicated conversion problem of fiber transmission. It simplifies the installation project, lower the project cost, Plug and play, no need of any software and hardware setting.



Product Features

◆ Long distance transmission. It can transmit signal up to 2,000 meters without repeater, easy for network cable setting, the transmitting rate of TCP/IP on coaxial cable is no less than 30 Mbps within 2,000 meters.

◆ High transmission performance. It can transmit multi-channel of HD video simultaneously without delay, digital signal is only transmitted simply in different medium with no harm.

◆ Simple installation. Plug and play, no need of any software and hardware setting.

◆ Good compatibility. It is easy for adding spots under permits of total network bandwidth by using of T connectors to form a hand-in-hand connection, no need of setting new cables.

◆ Based on the latest Ethernet protocols of IEEE 1901.

◆ High speed of communication, it supports multimedia business and network.

◆ Both HD video and data signal can be transferred by the coaxial cable, Network cable and power line.

◆ Multi-channel signal transmission. It can transmit 16-channel of million resolution HD 1080p video, Alarm, Talkback and Control data signal on a coaxial cable.

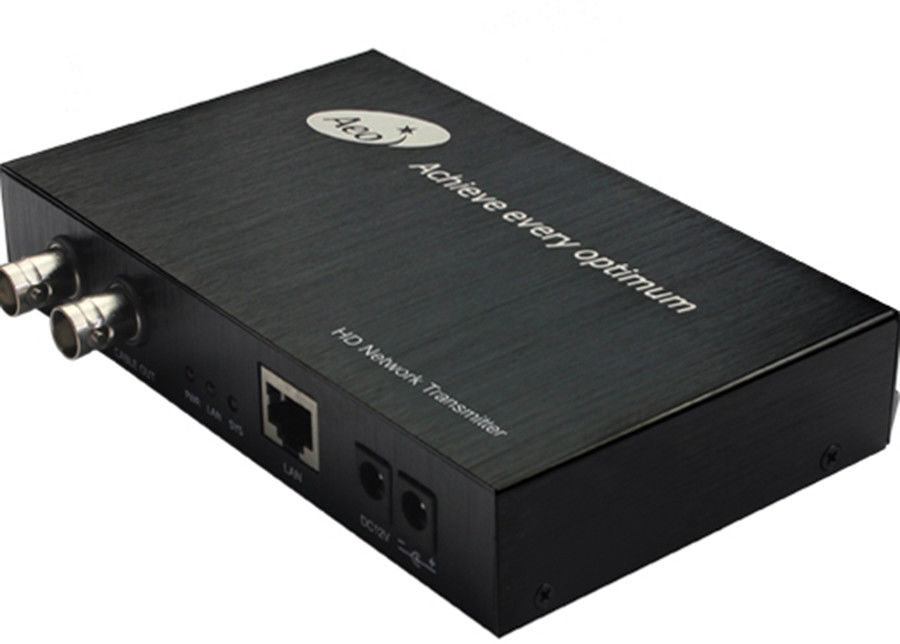

Product picture

1 POE Ethernet 2 BNC Port Coax To Network Converter 0

Application Diagram



1 POE Ethernet 2 BNC Port Coax To Network Converter 1





Packaging & Shipping


● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



1 POE Ethernet 2 BNC Port Coax To Network Converter 2
