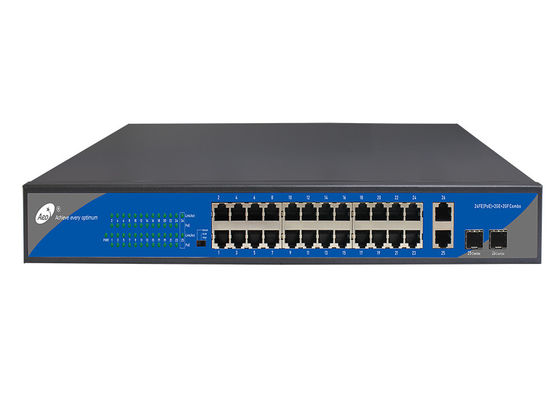

10/100Mbps 24 Port POE Switch Unmanaged 2 Gigabit Combo Port

10/100Mbps 24 Port POE Switch Unmanaged 2 Gigabit Combo Port

10/100Mbps 24 Port POE Switch Unmanaged 2 Gigabit Combo Port
10/100Mbps 24 Port POE Switch Unmanaged 2 Gigabit Combo Port
10/100Mbps 24 Port POE Switch Unmanaged 2 Gigabit Combo Port
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T, L/C
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Backplane Capacity: 12.8G MAC Address Table: 8K
Packet Forwarding Rate: 9.52Mpps Max Voltage Range: AC 90~264V;47/63Hz
Working Temperature: -10~55°C Relative Humidity: 5% ~ 90%
Level Of Protection: IP30 Standard Protocol: IEEE802.3af/at
Pin Definition: V+ V+ V- V-Corresponding To 4,5,7,8 Output Power: IEEE802.3af:15.5W IEEE802.3at:25.5W
Output Power: 250w Protection Grade: IP30
MTBF: 100000 Hours Rated Voltage Range: AC 100~240V ;50/60Hz
POE Standard Protocol: IEEE802.3af/at POE Pin Definition: V+、V+、V-、V- Corresponding To 4,5,7,8 (1.2.3.6 Can Be Custom-made)
POE Ports: 24 10/100M POE SFP Ports: 2 Gigabit SFP Slots
Ethernet Ports: 2 Gigabit
High Light:

12.8Gbps 24 port POE switch unmanaged

,

IP30 24 port POE switch unmanaged

,

10/100Mbps unmanaged network switch

24 Port POE Switch IP Extender 250M 24 10/100Mbps POE and 2 Gigabit Combo Ports



Technical Parameter

10/100M POE Ports 24
Gigabit ethernet port 2
Gigabit SFP Slots 2
Interface

Optical interface :1000Mbps (interface type :SFP slot)

Gigabit Network interface: 10/100/1000Mbps self-adaptation, Full/Half duplex mode,support MDI/MDI-X.

Fast Network Interface:10/100/1000Mbps self-adaptation, Full/Half duplex mode,support MDI/MDI-X, transmission distance 0-100M

LED indicator: PWR,SYS,POE,Link/ACT

Switch Properties

Backboard bandwidth:12.8Gbps MAC address table: 8K

Packet forwarding rate: 9.52 Mpps

Power Supply

Input voltage: 100~240V AC

Input current: max 300mA

Physical Properties

Housing: metal, IP30 protection

Installation mode: rack mount

Environmental Constraint

Working temperature: -20 ~ 60°C(-4 ~ 140°F)

Storage temperature: -40 ~ 85°C(-40 ~ 185°F)

Environment relative humidity: 5 ~ 95% (non-condensing)

Standards and certification

MTBF: 1000000h





Product Overview

The 24 port POE switch is 2 × Gigabit Combo ports + 24 × 10/100M POE Ethernet ports an unmanaged AI PoE switch independently. It has 24*10/100M PoE ports and 2*10/100/1000M combo ports . Port 1-24 can support IEEE802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 250W. Port 1-24 can support the PoE watchdog function. When the port communication failure corresponds to the port POE will automatically restart, self-recover network communication, reducing manual intervention and maintenance. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, video access control, etc. through the network cable, to meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, parks, banks, hospitals, factories, small and medium-sized enterprises form a cost-effective network.


Product Features

● 24 10/100 POE adaptive RJ45, support automatic flip (Auto - MDI/MDIX)

● 2 gigabit SFP optical fiber ports

● 2 gigabit ethernet ports

● Support 8k MAC address

● IPC Extender 250m the distance from IP camera to switch

● Comply with the IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards

● All ports support IEEE 802.3x half duplex flow control and full-duplex mode of back pressure

● Non-blocking switching architecture, full speed forward and maximum throughput filtering data packets

● Support the MAC address learning and automatically adjust the transmission mode and the transmission rate;

● The LED indicates the power, the link and activity, provide the working state of the simple tips and troubleshooting;

● Built-in application power 100-240v AC

● 19 inch standard five diamond shell casing design



Product picture

10/100Mbps 24 Port POE Switch Unmanaged 2 Gigabit Combo Port 0
Packaging & Shipping


● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



10/100Mbps 24 Port POE Switch Unmanaged 2 Gigabit Combo Port 1
