| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC, ROHS |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/month |
| Rate: | 155M | Distance: | 20km |
|---|---|---|---|
| Connector: | Duplex LC | Temperature Range: | -20°C~70°C |
| Wavelength: | TRx1310nm | Model Type: | Single Mode Dual Fiber |
| High Light: | 155M Single Mode SFP Transceiver,1310nm Single Mode SFP Transceiver,Hot Pluggable LC SFP Fiber Transceivers |
||

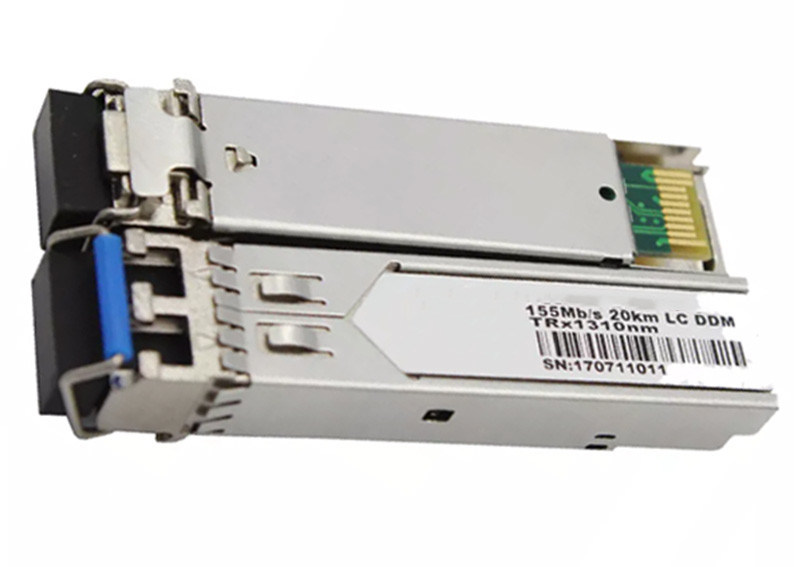

155M 20Km SFP Transceiver Hot Pluggable LC 1310nm Single Mode DDM
Technical Parameters
| Up to 155M Data Links |
| Hot-Pluggable |
| Duplex LC connector |
| Up to 20km on 9/125μm SMF |
| 1310nm FP laser transmitter |
| Single +3.3V Power Supply |
| Monitoring Interface Compliant with SFF-8472 |
| Maximum Power <1W |
| Temperature range: -20°C to 70°C |
| RoHS compliant and Lead Free |
System Overview
SFP Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310nm FP laser, up to 19dB link budge ensure this module SONET OC-3/SDH STM-1 10Km application.
Product Features
² Up to 155Mb/s Data Links
² Hot-Pluggable
² Duplex LC connector
² Up to 20 km on 9/125μm SMF
² 1310nm FP laser transmitter
² Single +3.3V Power Supply
² Monitoring Interface Compliant with SFF-8472
² Maximum Power <1W
² Temperature range: -20°C to 70°C
² RoHS compliant and Lead Free
Product Pictures
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
