| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC, ROHS |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/month |
| Jumbo Frame: | 9K | Poe Standard: | IEEE802.3 Af/at |
|---|---|---|---|
| Switching Capacity: | 10Gbps | Mounted Way: | DIN Rail, Wall Mount |
| MAC Address Table: | 2K | MTBF: | 10 000 Hours |
| High Light: | 1 SFP Fiber POE Switch,Din Rail 100mbps POE Switch,4x100M Industrial POE Switch |
||
Din Rail 100mbps Poe Switch With 1 SFP Fiber And 4 100M PoE Ports
Technical Parameters
| Power Supply | 44~ 57 V DC/ 3A(MAX) |
| Standards | IEEE 802.3, 802.3i, 802.3u, 802.3af, 802.3at |
| Ports | 4×10/100Mbps RJ45 ports +1× 10/100Mbps SFP port |
| Indicators |
4 status indicators Link/ACT, 1 SFP fiber ports indicator (Link), power indicator |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Dimensions | 136 mm *108 mm *38.5 mm |
| MAC Address Table | 2K |
| Switching Capacity | 10Gbps |
| Packet Forwarding Rate | 7.44Mpps |
| Installation | Guide rail/wall mount |
| Environment | Operating Temperature: -40℃ — 75℃ (-40℉~167℉) Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certification Standards_ EMS |
IEC/EN 61000-4-2,Level 4 IEC/EN 61000-4-3,Level 4 IEC/EN 61000-4-4,Level 4 IEC/EN 61000-4-5,Level 3 IEC/EN 61000-4-6,Level 3 IEC/EN 61000-4-8,Level 5 IEC/EN 61000-4-9,Level 5 IEC/EN 61000-4-10,Level 5 |
System Overview
Industrial Ethernet PoE switch with 4 10/100 Mbps Ethernet ports and 1 10/100 Mbps SFP fiber port. Highly redundant system circuit design to avoid sudden changes in the external environment affecting the normal operation of the equipment. Adopt strict industrial-grade production and testing process to effectively release the electrical stress of the components and significantly improve the reliability of the equipment.
Product Features
Provide 4 10/100Mbps RJ45 ports and 1 10/100Mbps SFP fiber port.
Support IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3af,IEEE802.3at standard.
4 POE ports support 802.3af/at,per port up to 30W Poe power budget.
DIN-rail and wall mounting are easily available, and the installation method can be flexibly selected according to the needs, making the use of industrial Ethernet switches easy and reliable.
Provide power protection protection, greatly improve the reliability of the switch power supply.

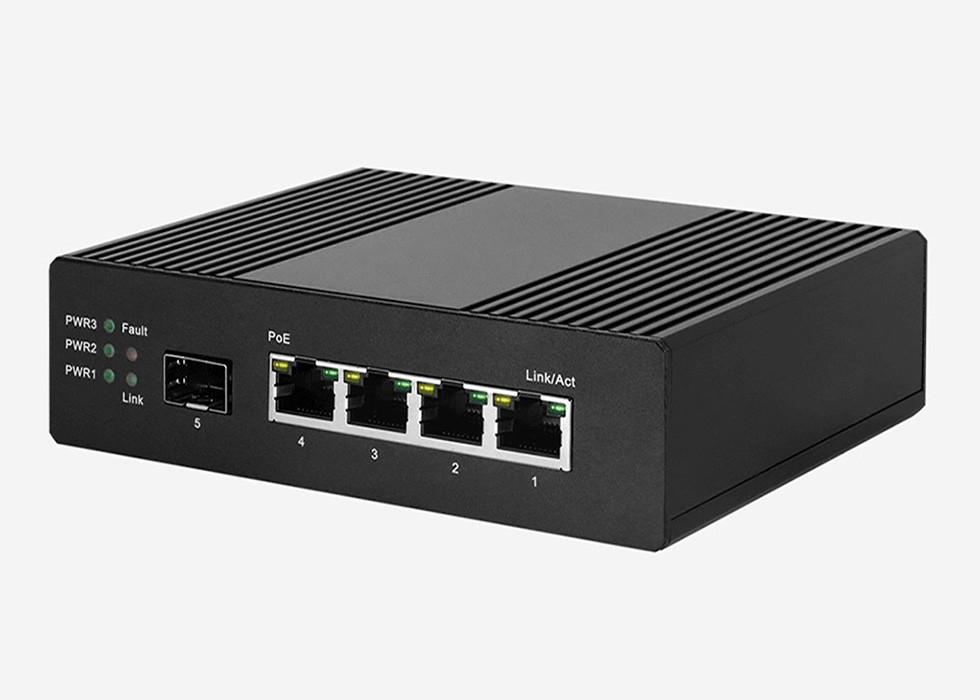

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
